Harness Locations

Harness Routing Views

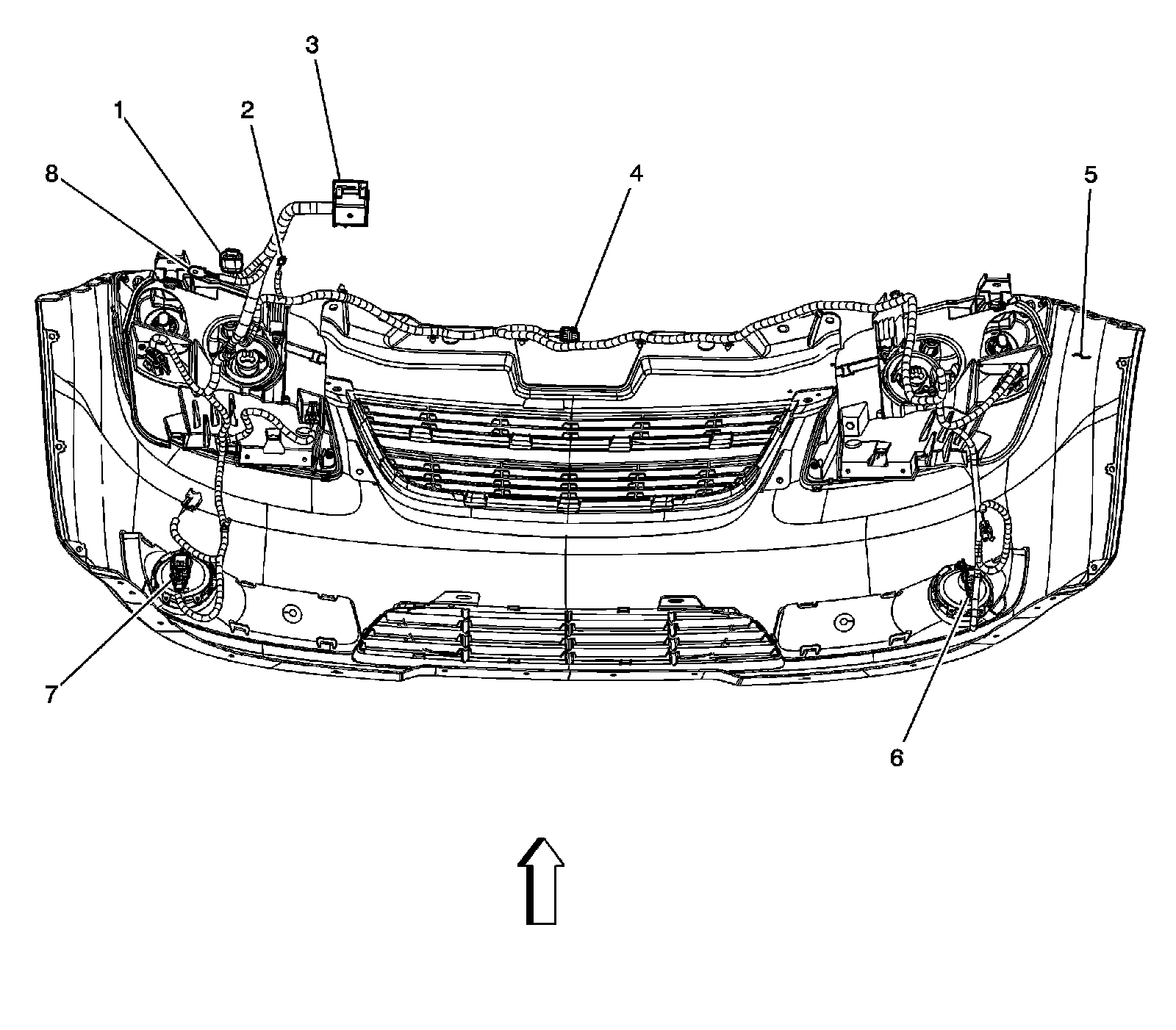

Forward Lamp Harness




1 - X121
2 - G102
3 - Fuse Block - Underhood X3
4 - Inflatable Restraint Front End Sensor Connector
5 - Front Fascia
6 - Fog Lamp - Right (T37)
7 - Fog Lamp - Left (T37)
8 - G101

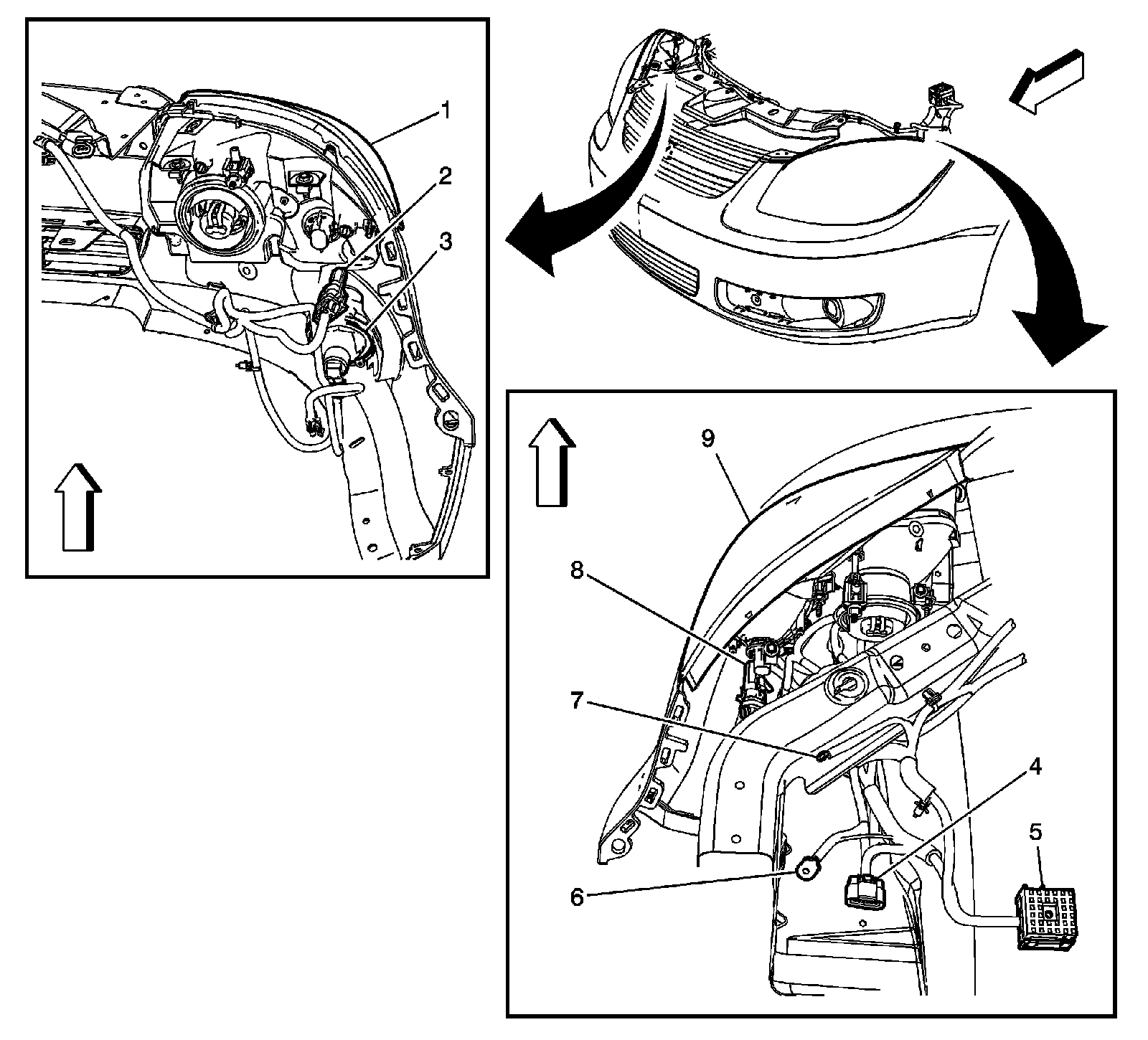

Forward Lamp Harness Routing




1 - Headlamp - Right
2 - X110
3 - Fog Lamp - Right (T37)
4 - X121
5 - Fuse Block - Underhood X3
6 - G101
7 - G102
8 - X111
9 - Headlamp - Left

Engine Harness Routing - L61




1 - Electronic Power Steering (EPS) Harness
2 - G109
3 - Fuse Block - Underhood
4 - G103
5 - Battery Cable Harness
6 - X100
7 - G105
8 - G111
9 - X160

Engine Harness Routing (LAP)




1 - Electronic Power Steering (EPS) Harness
2 - G109
3 - Fuse Block - Underhood
4 - G103
5 - Battery Cable Harness
6 - X100 (MN5 without MXO)
7 - G105
8 - G111
9 - X160

Body Harness - Engine Compartment




1 - X101
2 - Windshield Wiper Motor Connector
3 - Fuse Block - Underhood X4
4 - Fuse Block - Underhood X2
5 - G101
6 - X121
7 - Engine Control Module (ECM) X1
8 - Electronic Brake Control Module (EBCM) Connector
9 - Fuse Block - Underhood X5
