Home >> Chevrolet >> 2010 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Schematics >> G103

G103

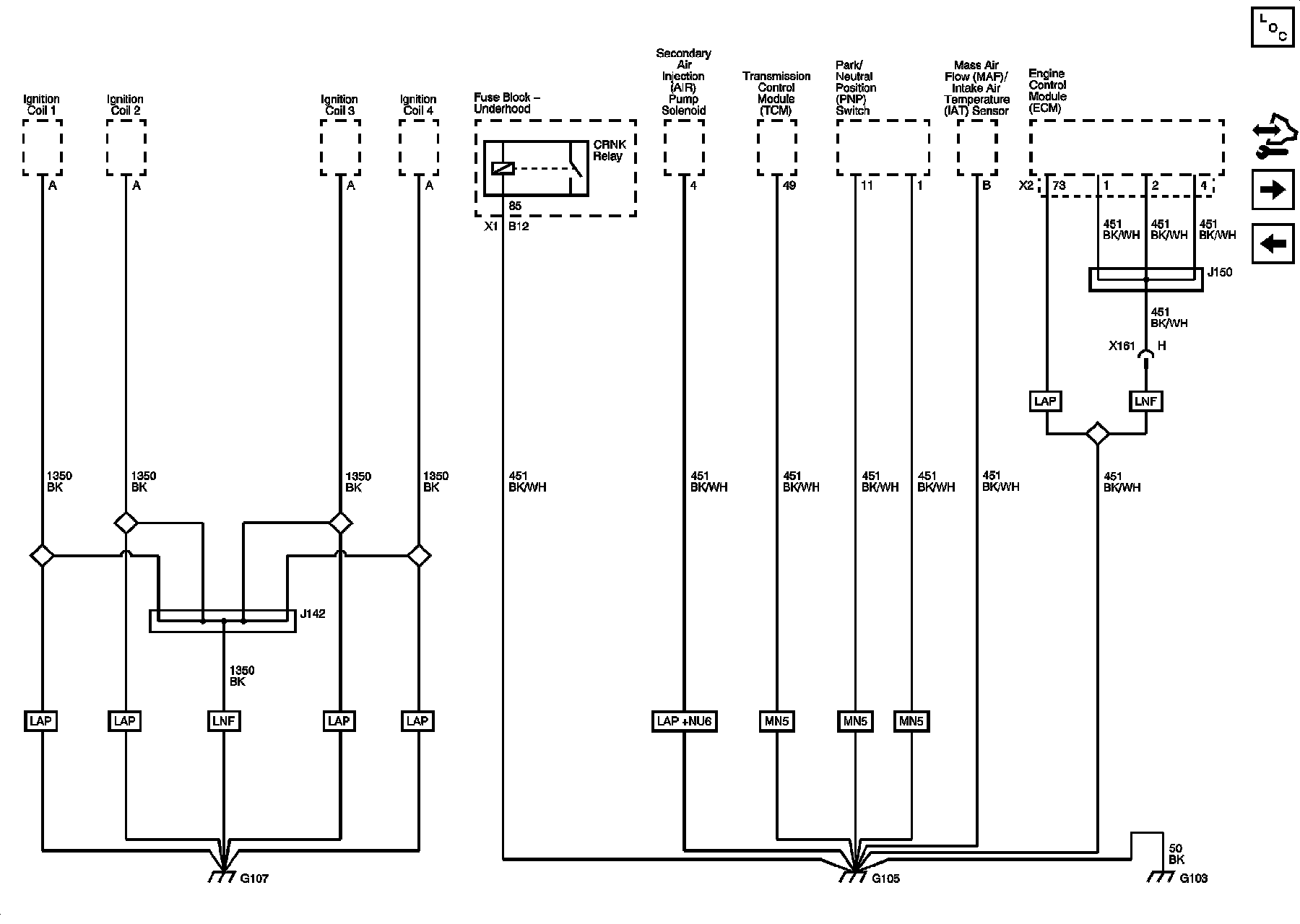

Ground Distribution Schematics

G103, G105, G107
