Home >> Chevrolet >> 2010 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications

System Specifications

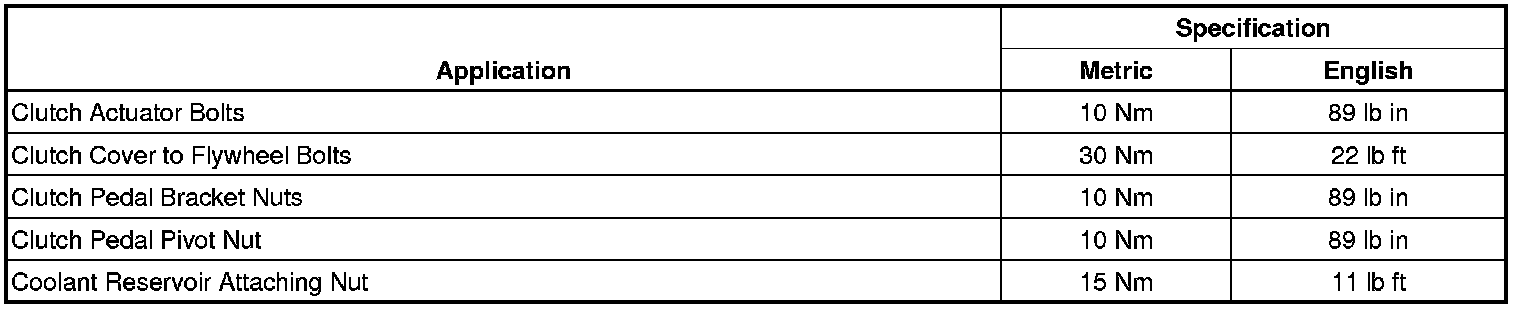

Fastener Tightening Specifications

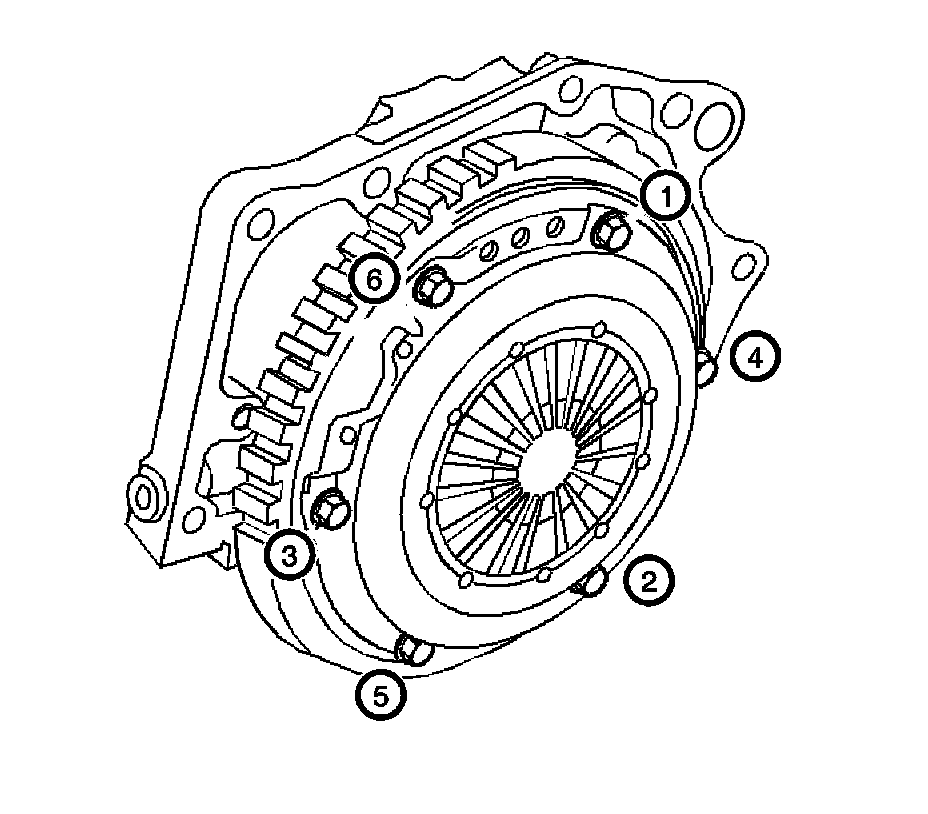

Pressure plate tightening sequence

Recheck each bolt torque using the tightening sequence
