Refrigerant Pressure Sensor / Switch: Diagrams

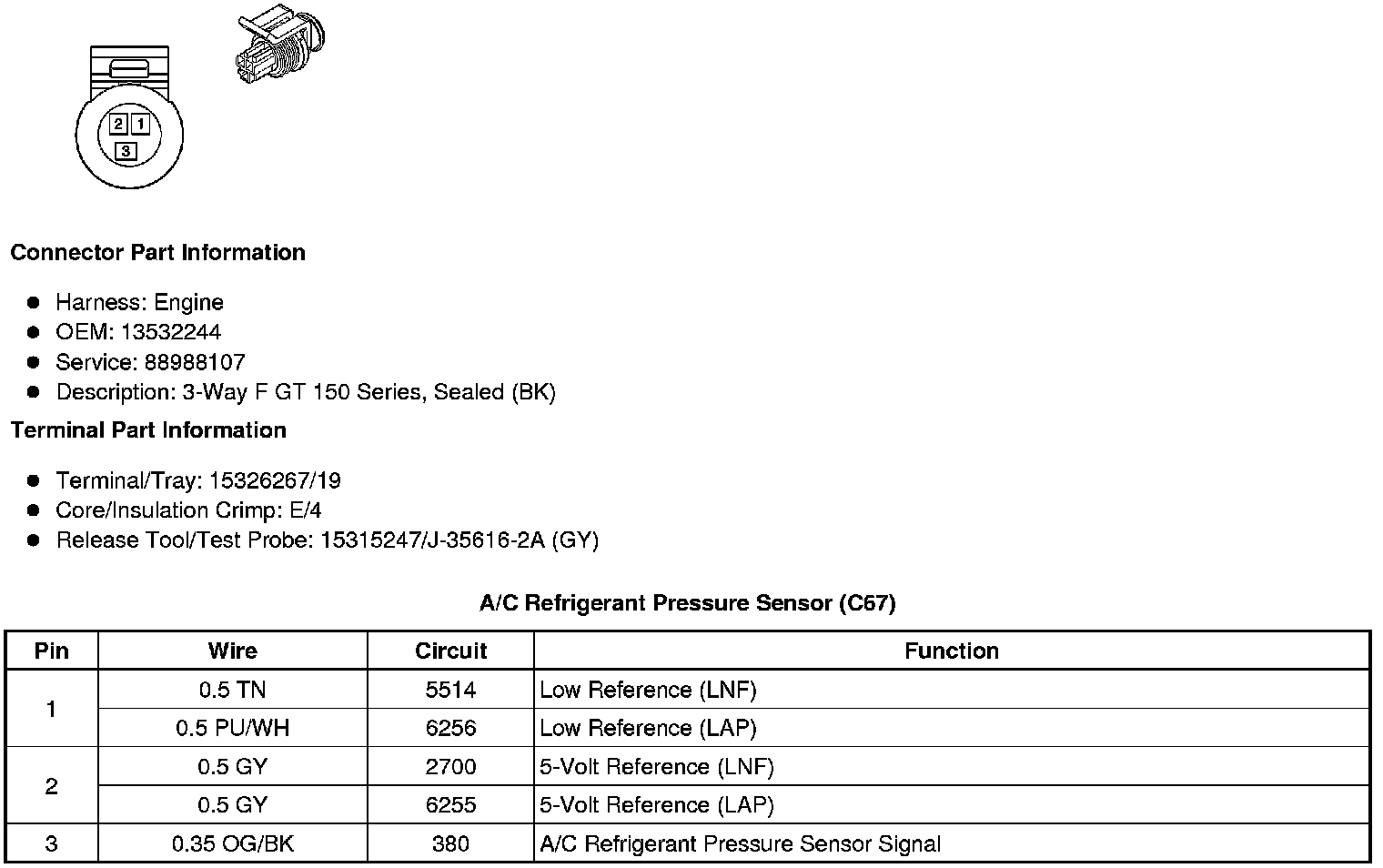

Component Connector End Views

A/C Refrigerant Pressure Sensor (C67)
