Home >> Chevrolet >> 2010 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Buckle >> Service and Repair >> Rear Seat Buckle Side Belt Replacement

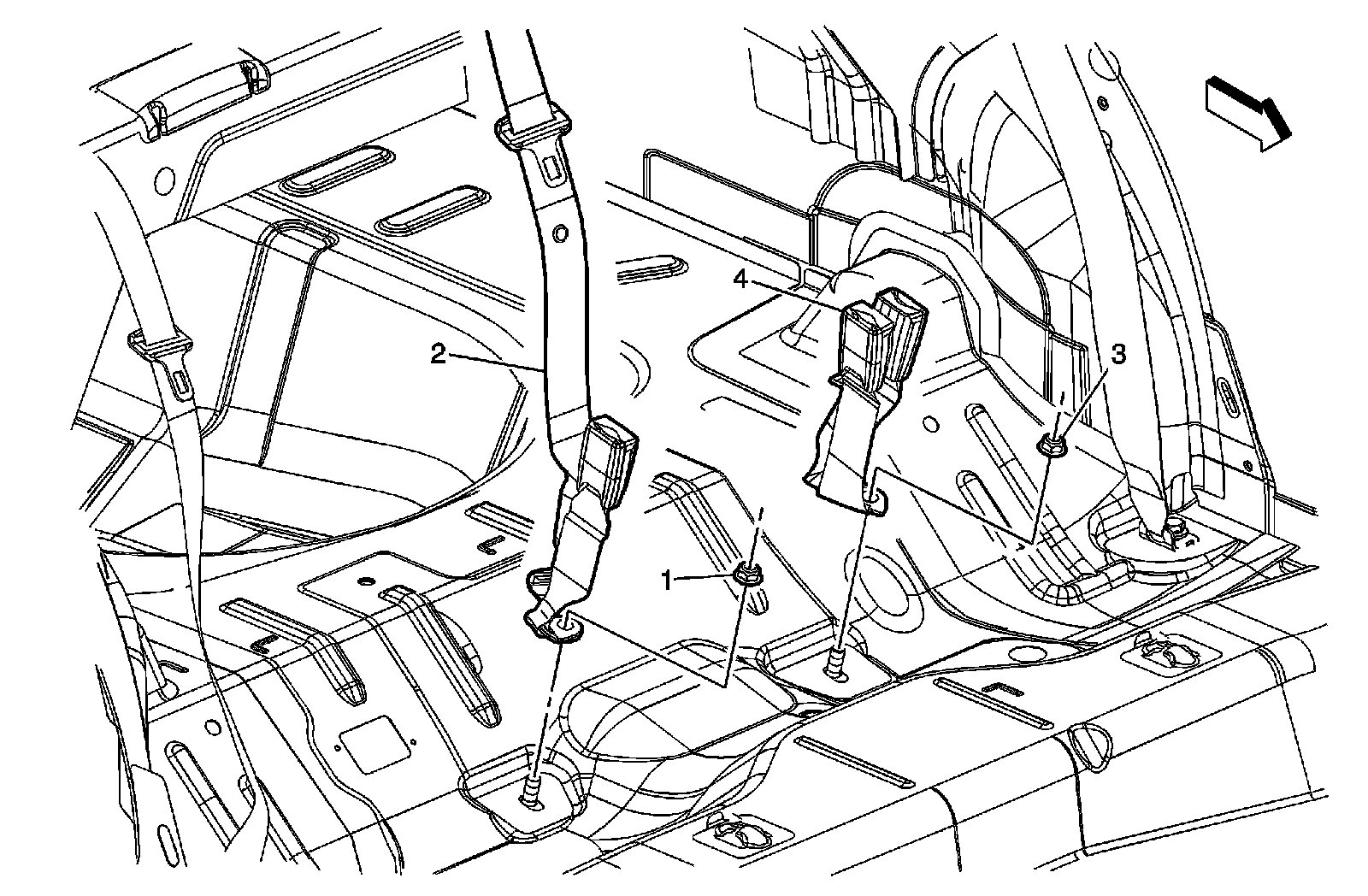

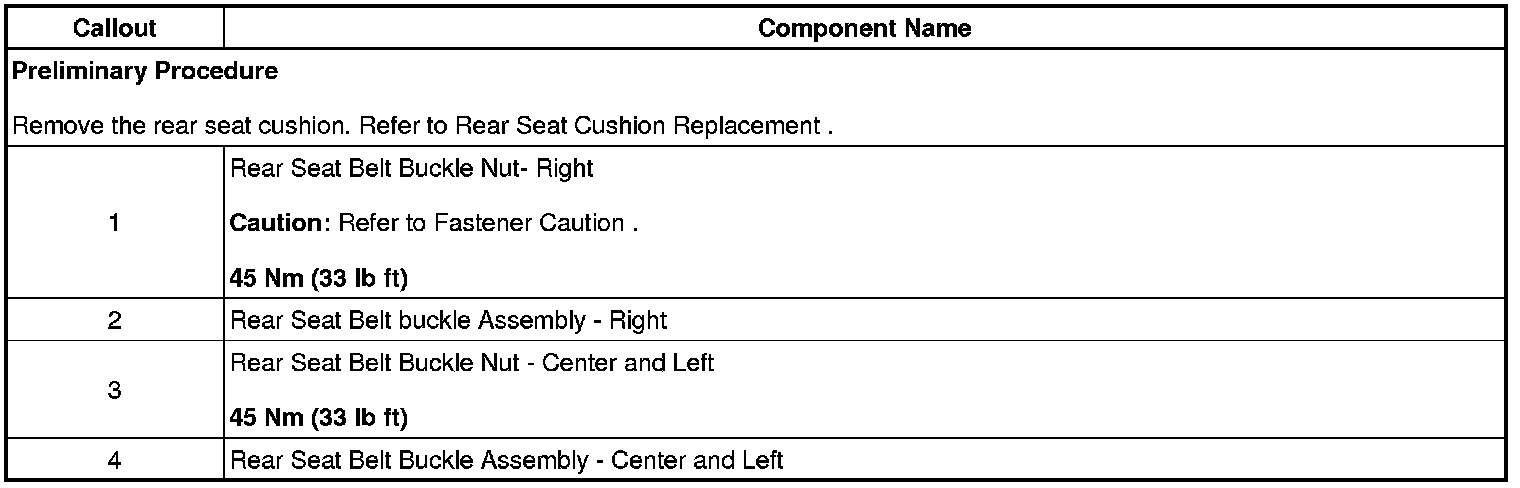

Rear Seat Buckle Side Belt Replacement

Rear Seat Buckle Side Belt Replacement
