Torque Converter Clutch Solenoid: Locations

Powertrain Component Views

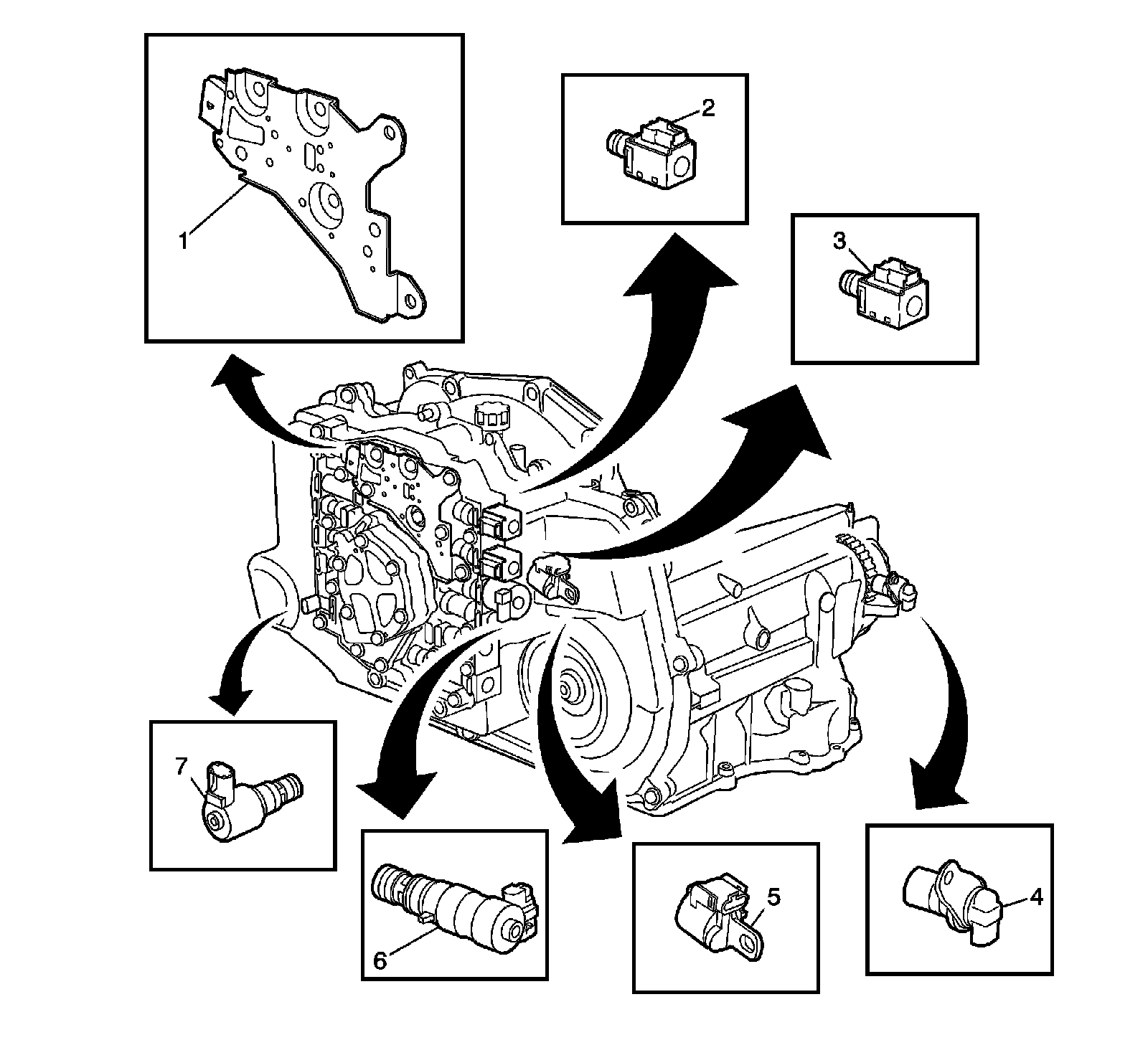

Transmission Electronic Components (MN5)




1 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
2 - 1-2 Shift Solenoid (SS) Valve
3 - 2-3 Shift Solenoid (SS) Valve
4 - Vehicle Speed Sensor (VSS)
5 - Automatic Transmission Input Shaft Speed (ISS) Sensor
6 - Pressure Control (PC) Solenoid Valve
7 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
