Oxygen Sensor: Locations

Powertrain Component Views

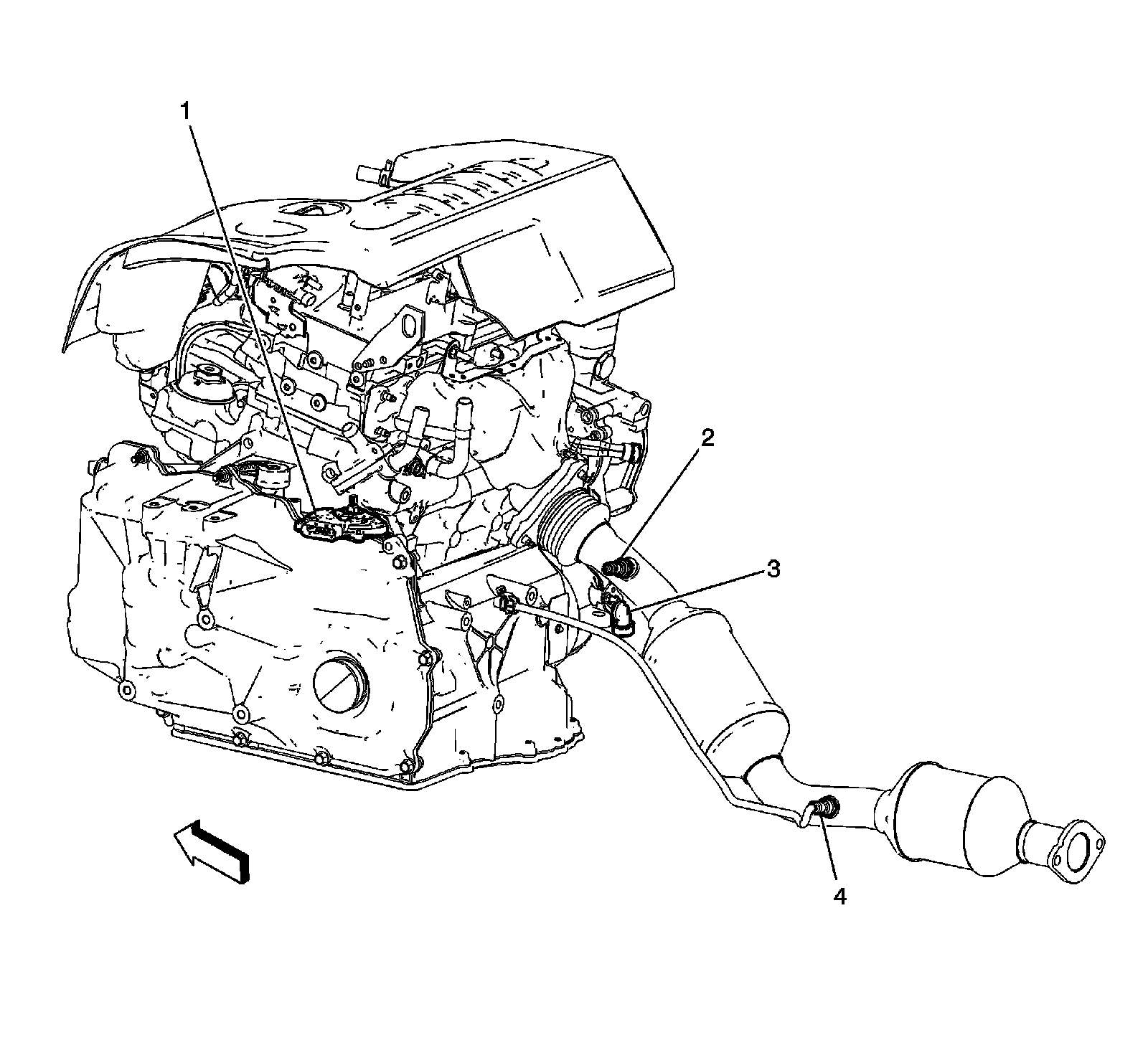

Engine (LAP) and Manual Transmission (M86)




1 - Backup Lamp Switch
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)

Engine (LAP) and Automatic Transmission (MN5)




1 - Park/Neutral Position (PNP) Switch
2 - Heated Oxygen Sensor (HO2S) 1
3 - Vehicle Speed Sensor (VSS)
4 - Heated Oxygen Sensor (HO2S) 2

Engine (LNF) and Manual Transmission (MU3)




1 - Backup Lamp Switch
2 - Heated Oxygen Sensor (HO2S) 1
3 - Heated Oxygen Sensor (HO2S) 2
4 - Vehicle Speed Sensor (VSS)
