Ignition Control Module: Locations

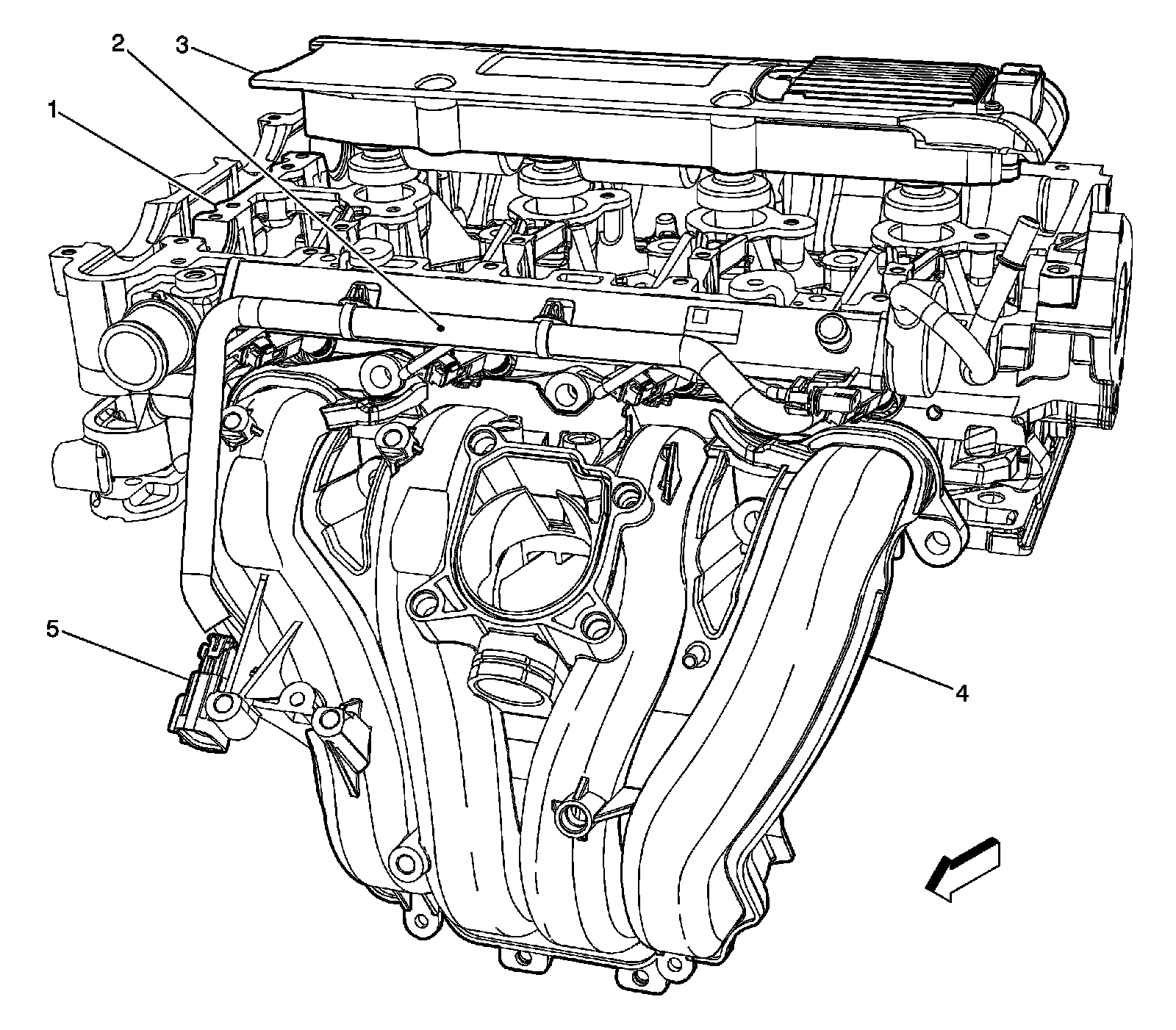

Harness Routing Views

Fuel Injector Harness (LAP)




1 - Cylinder Head
2 - J103
3 - Ignition Control Module (ICM)
4 - Intake Manifold
5 - X160
