PCV Valve Hose: Service and Repair

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement

Removal Procedure

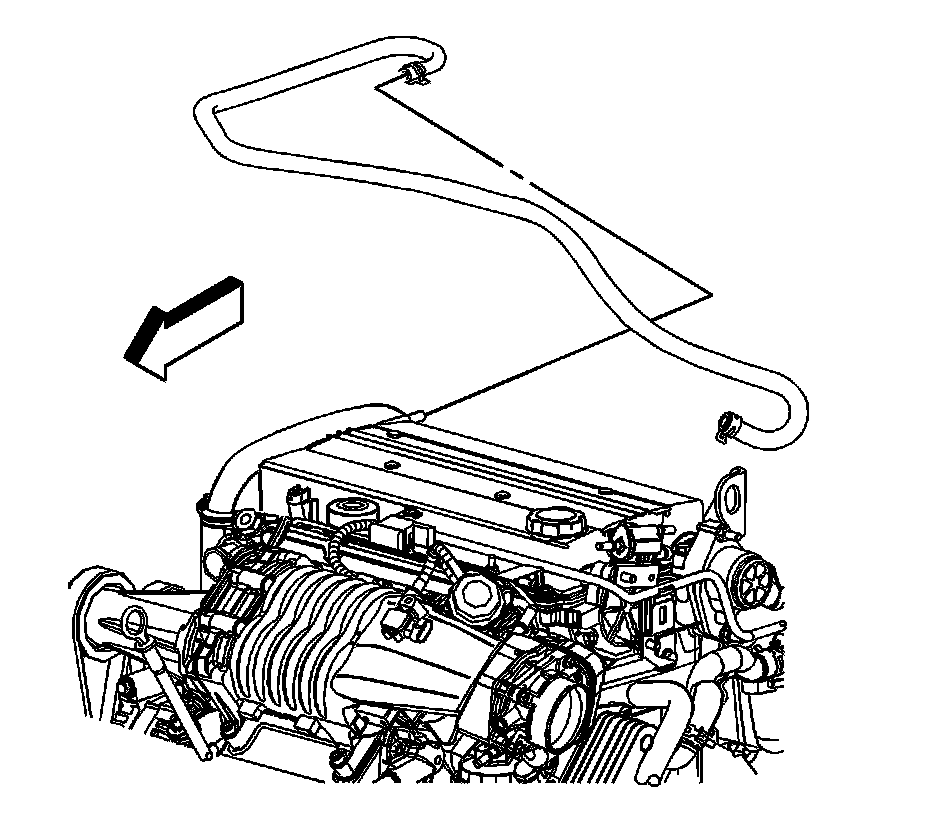

1. Disconnect the crankcase ventilation hose from the camshaft cover.
2. Disconnect the crankcase ventilation hose from the air cleaner outlet duct.

Installation Procedure




1. Connect the crankcase ventilation hose to the camshaft cover.
2. Connect the crankcase ventilation hose to the air cleaner outlet duct.
