Air Injection Pump Relay: Diagrams

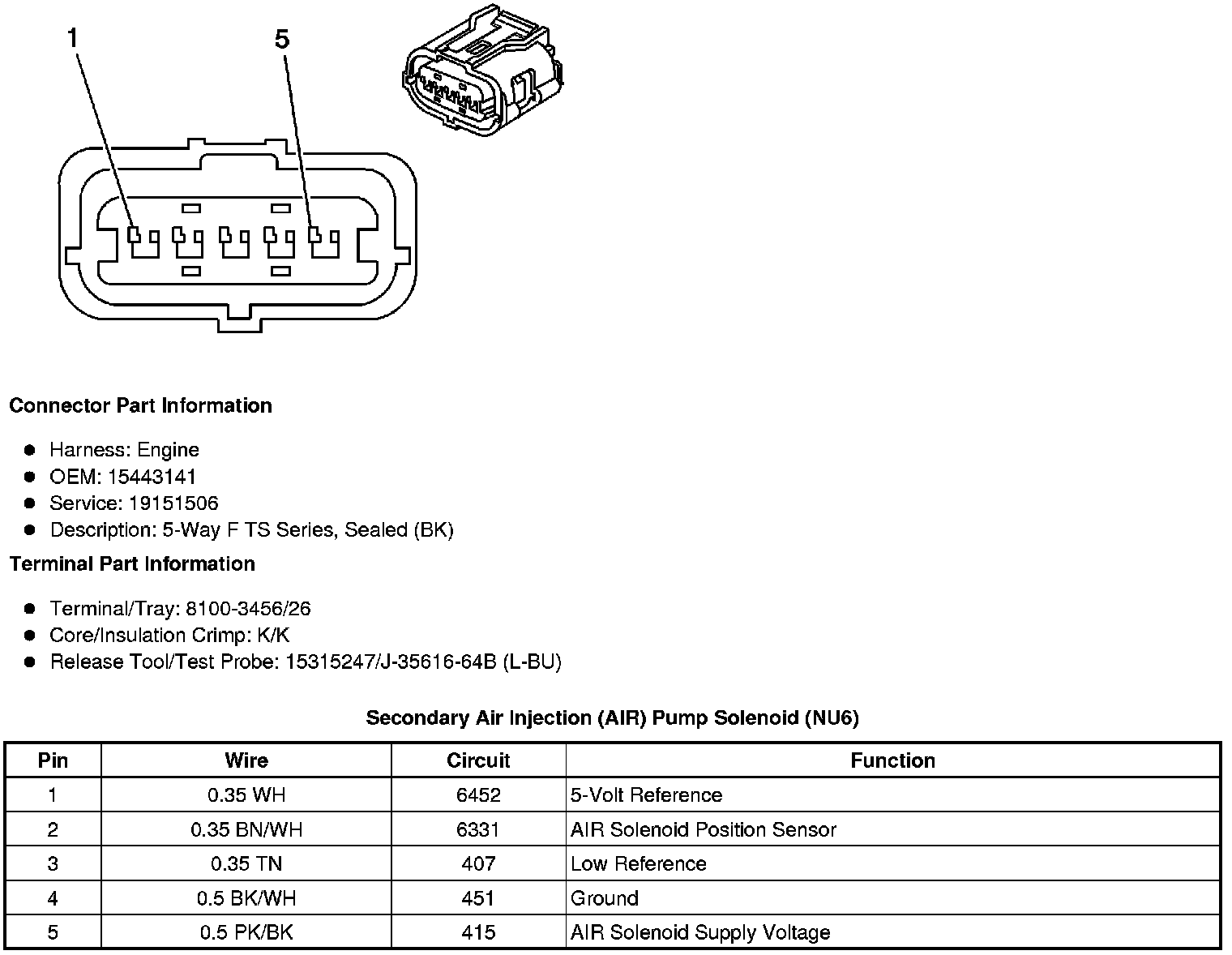

Component Connector End Views

Secondary Air Injection (AIR) Pump Solenoid (NU6)
