Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Number
>>
X800 - X899
X800 - X899
Inline Harness Connector End Views

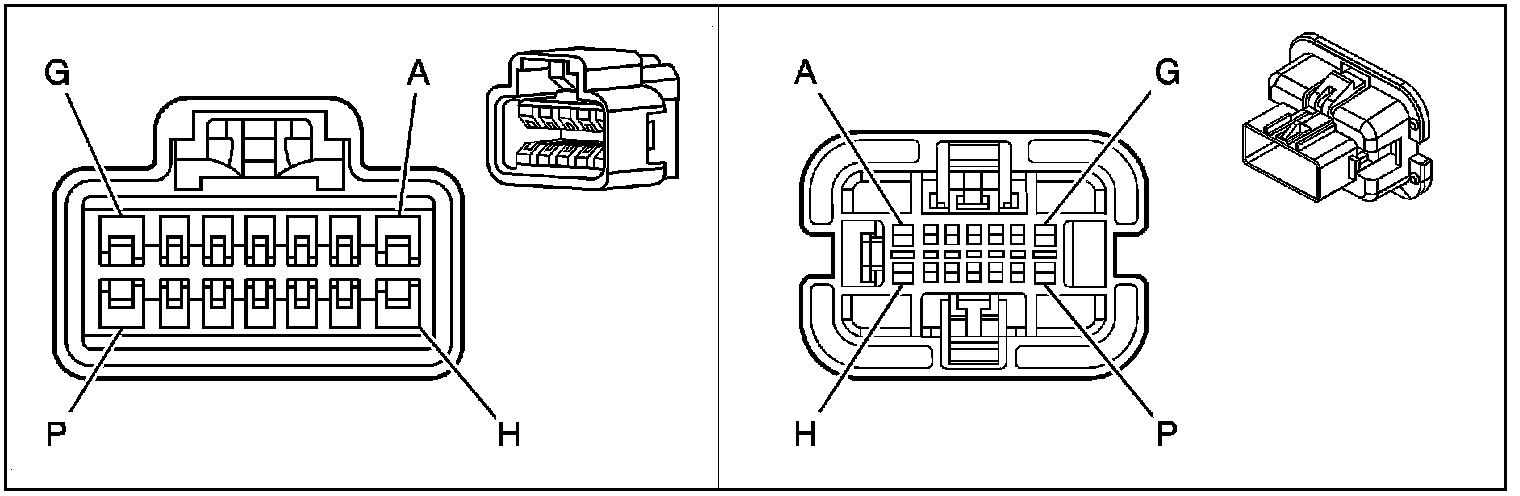

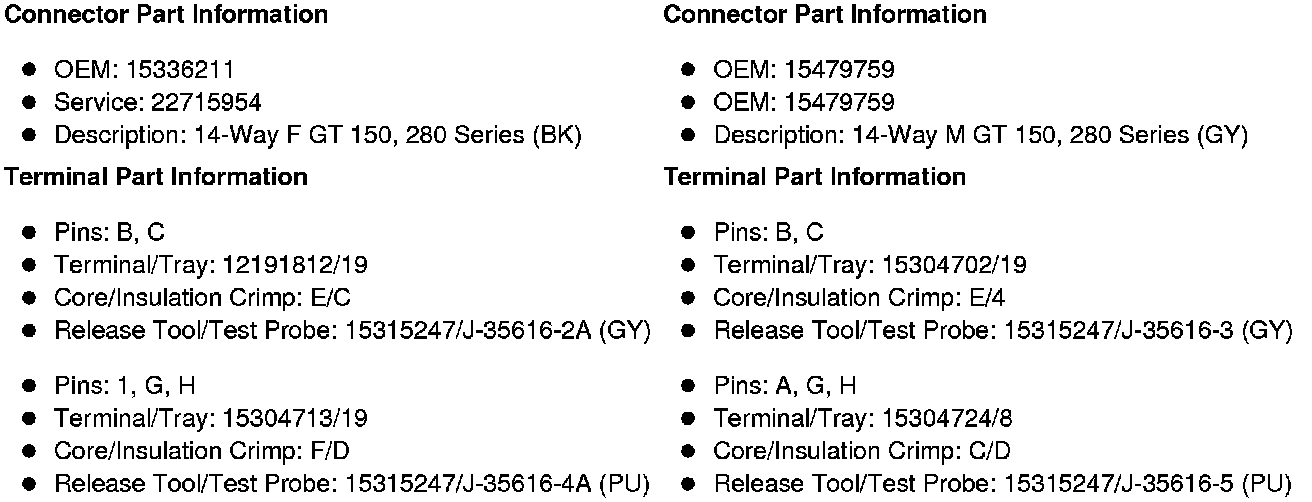

X800 Body Harness to the Right Rear Door Harness (Sedan with AU3 or DG7)
