X600 - X699




Inline Harness Connector End Views

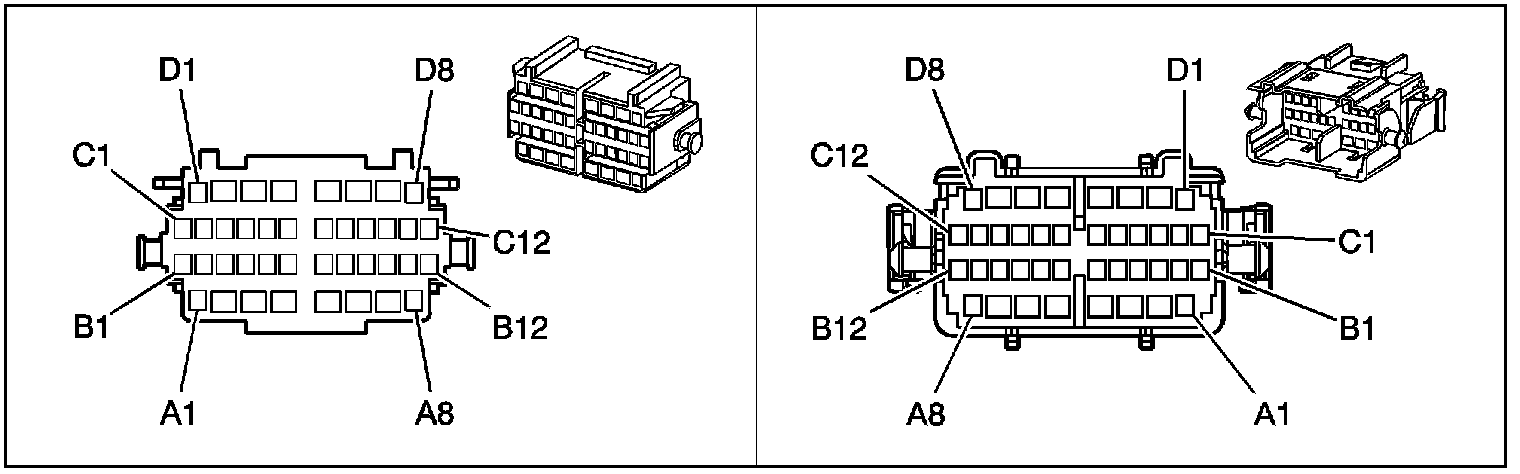

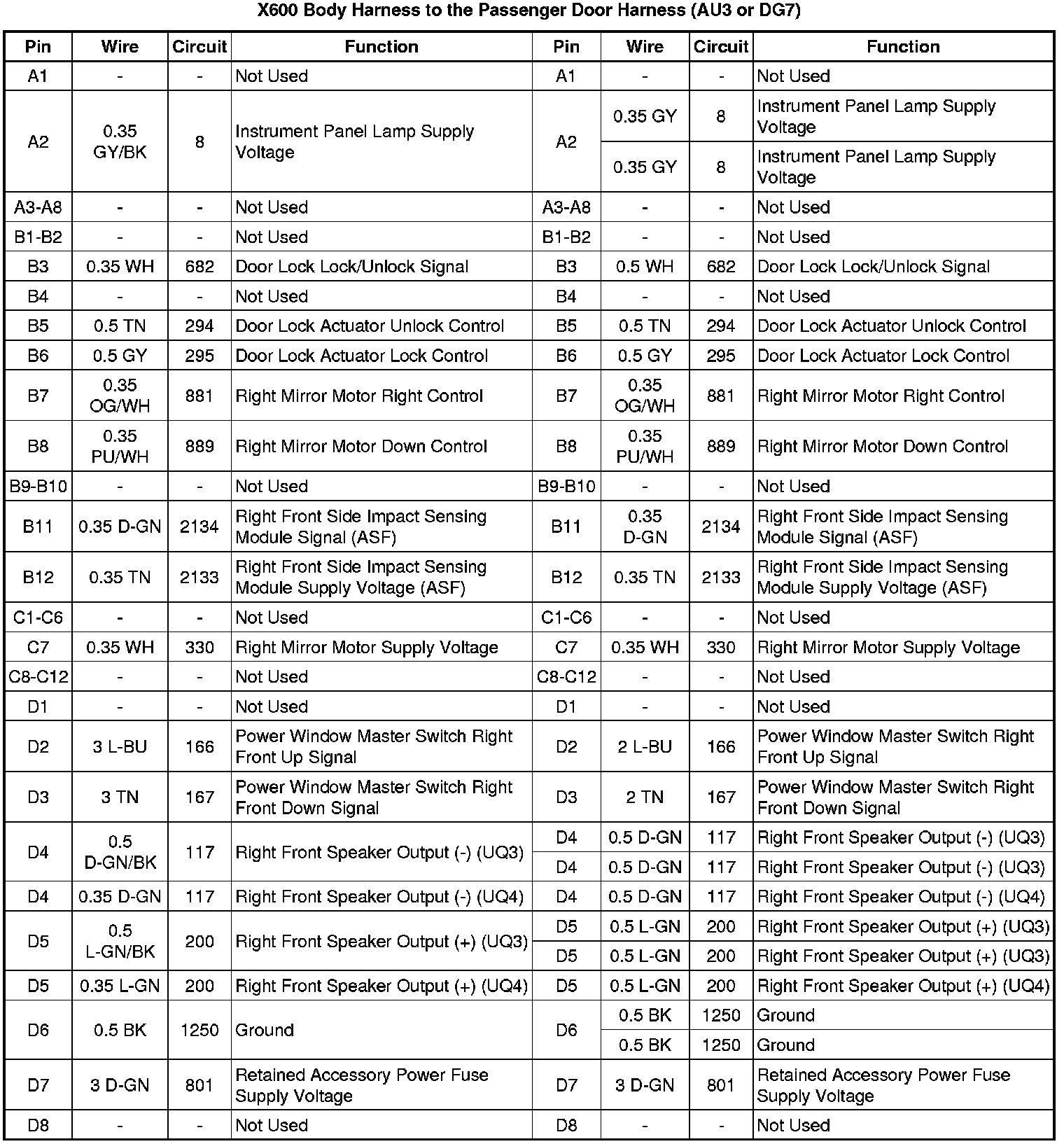

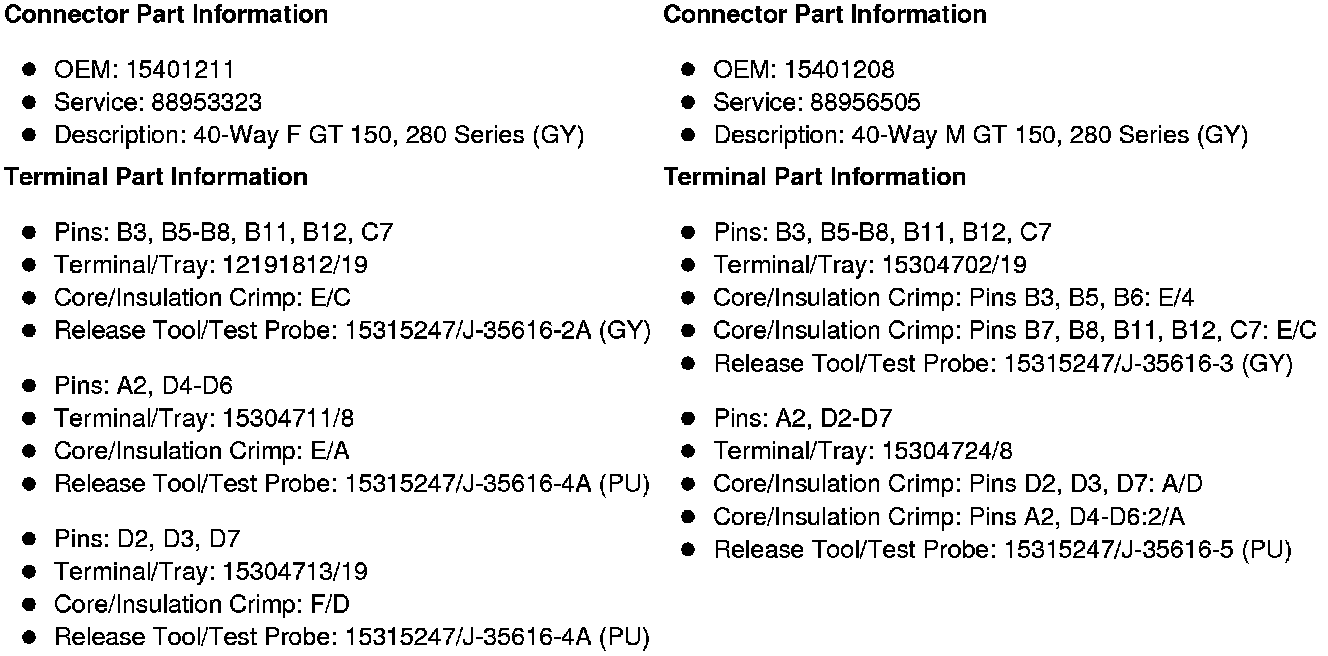

X600 Body Harness to the Passenger Door Harness (AU3 or DG7)

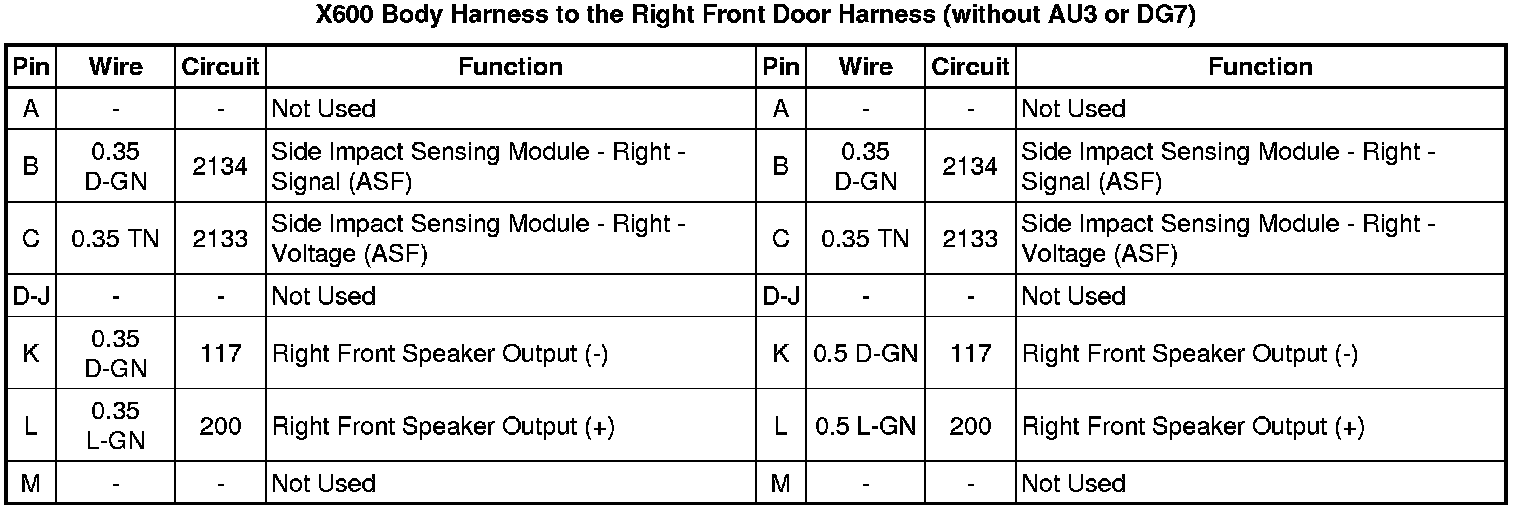

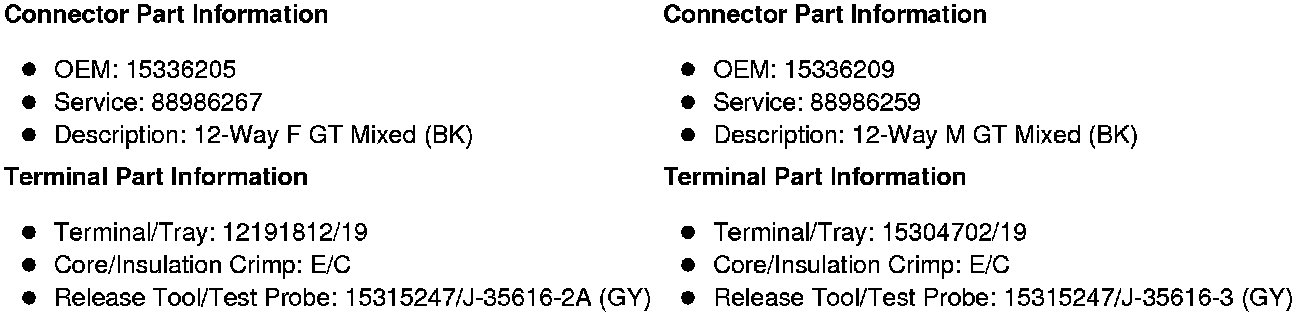

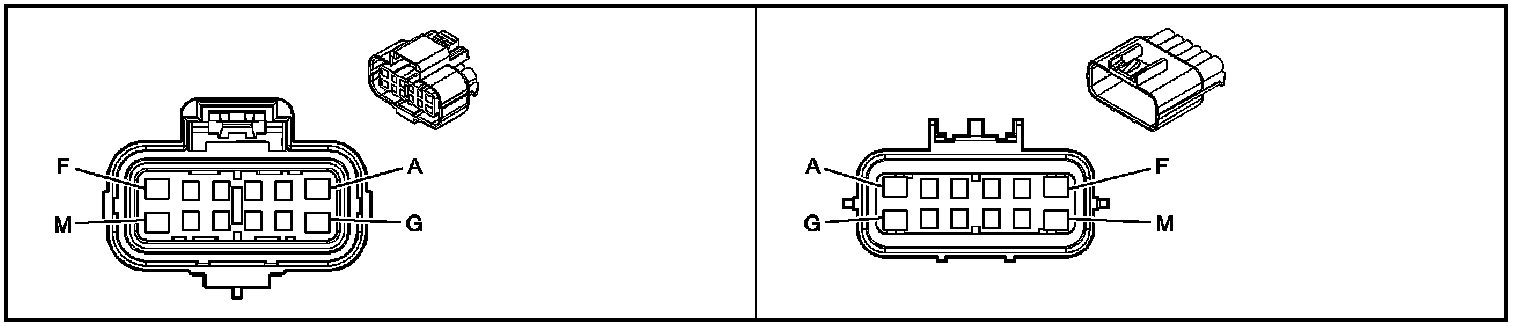

X600 Body Harness to the Right Front Door Harness (without AU3 or DG7)
