X495
X495

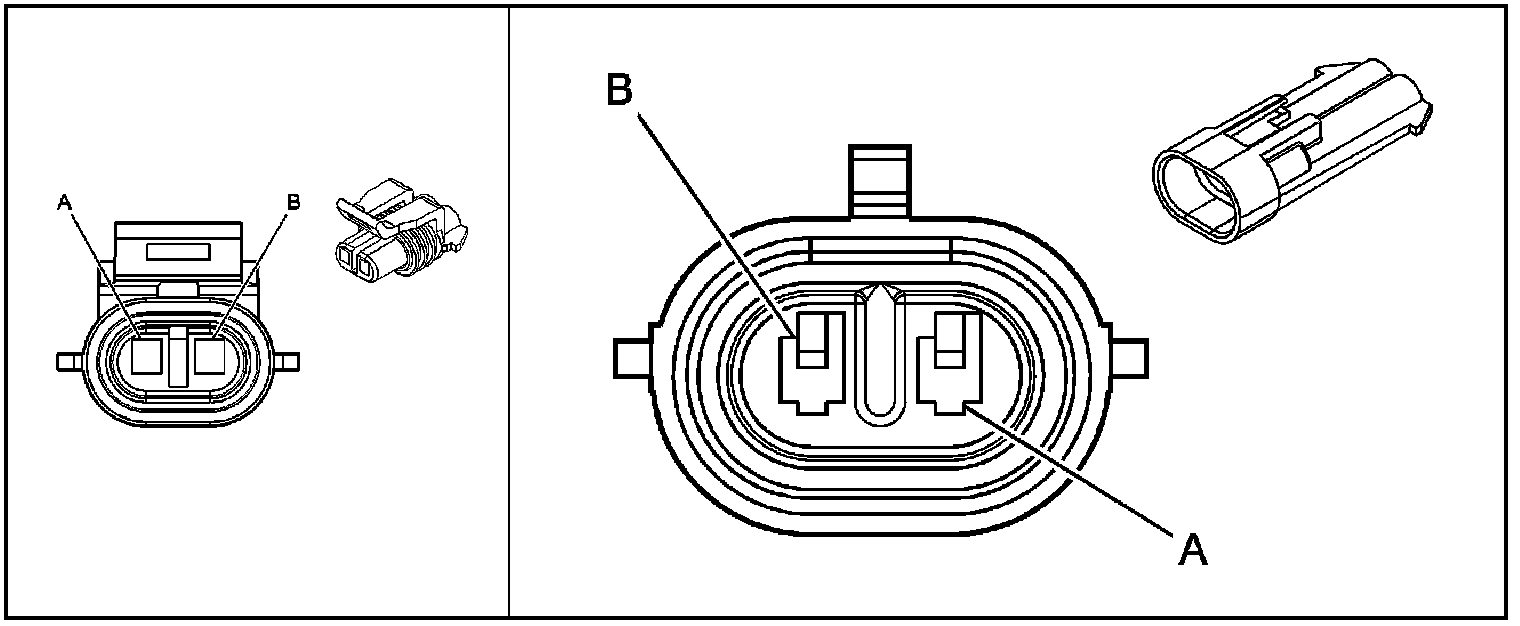

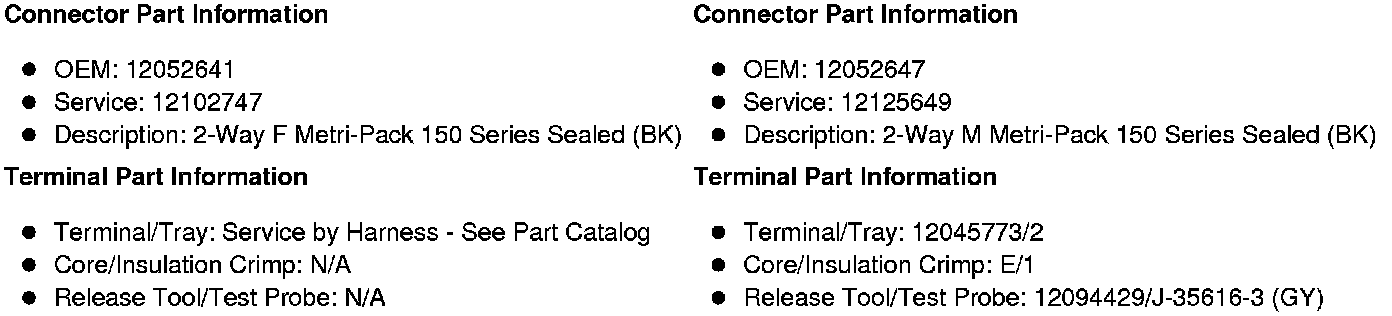

Inline Harness Connector End Views

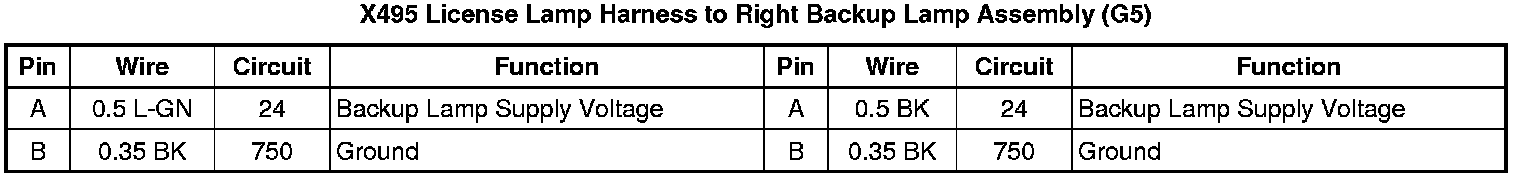

X495 License Lamp Harness to Right Backup Lamp Assembly (G5)
