X494

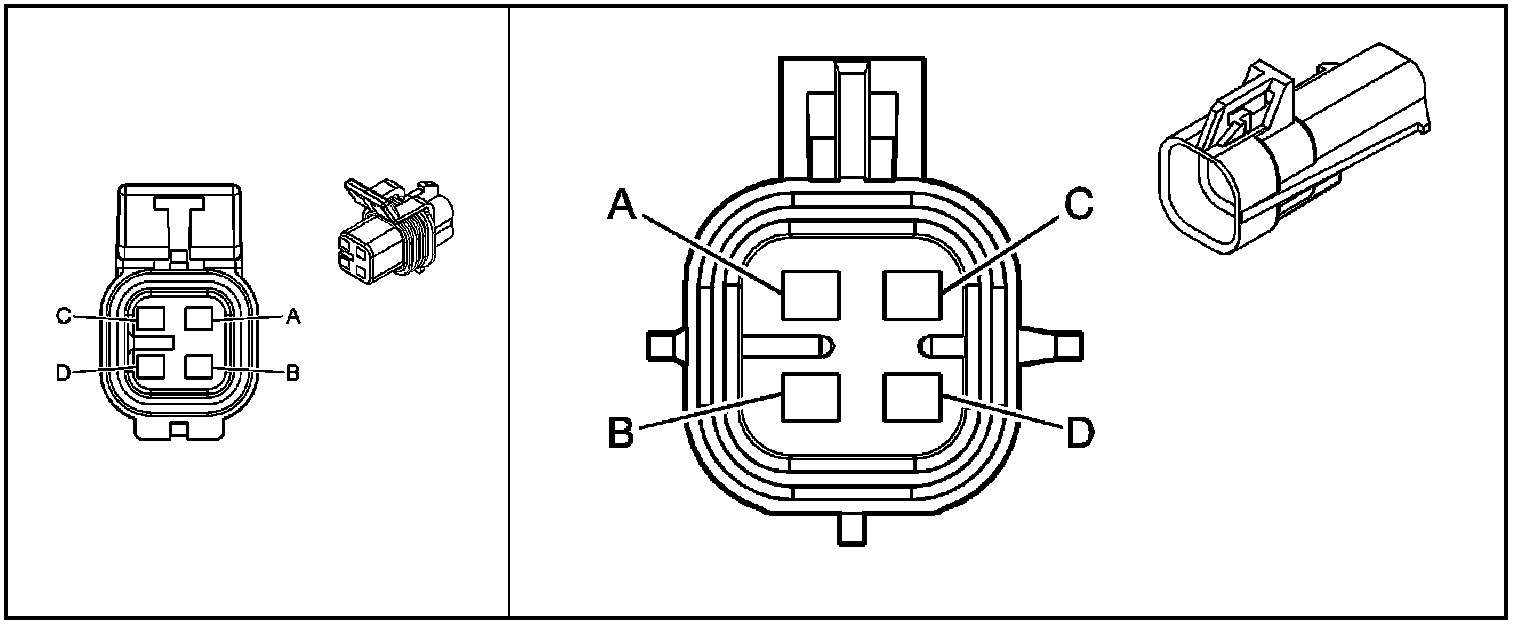

Inline Harness Connector End Views

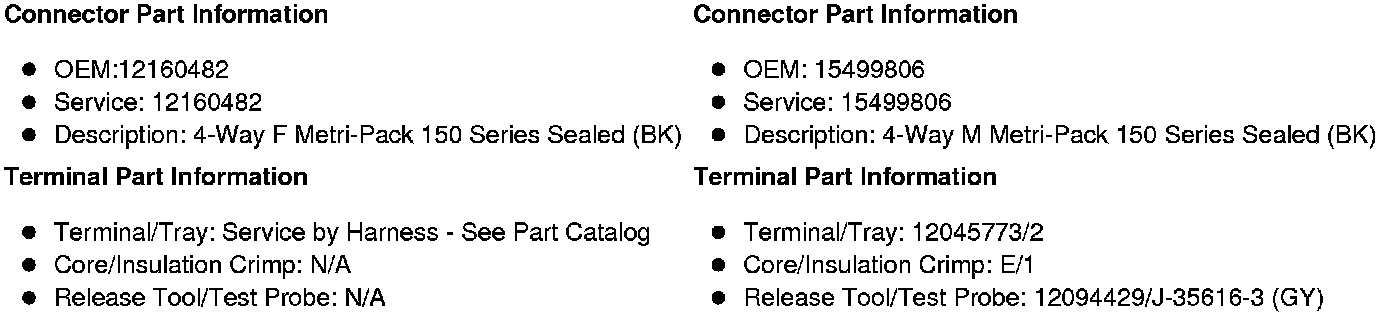

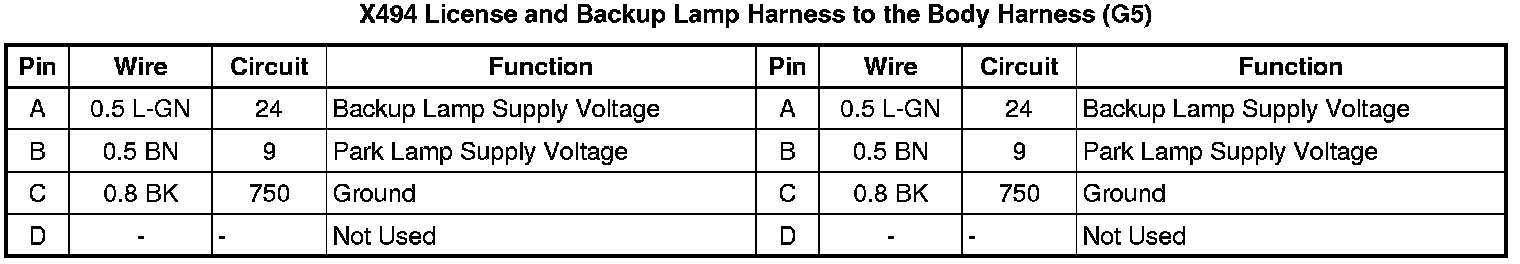

X494 License and Backup Lamp Harness to the Body Harness (G5)
