Chevrolet
>>
2010
>>
Cobalt L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Number
>>
X100 - X199
>>
X102
X102
Inline Harness Connector End Views

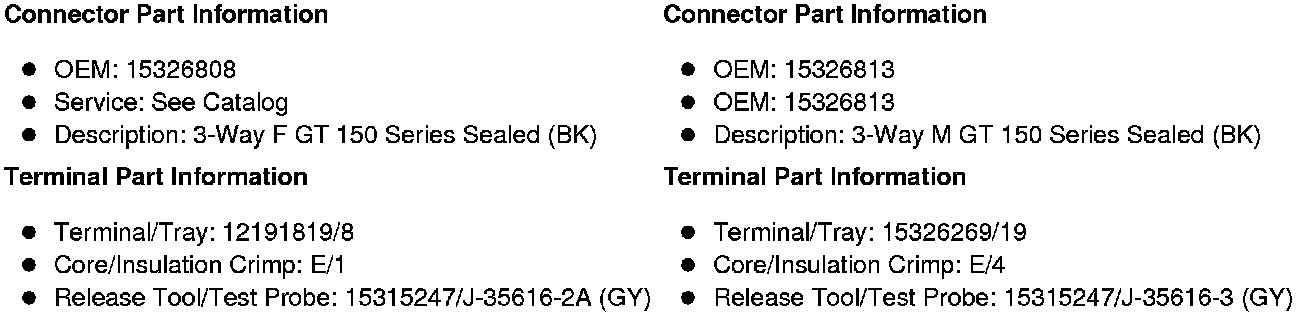

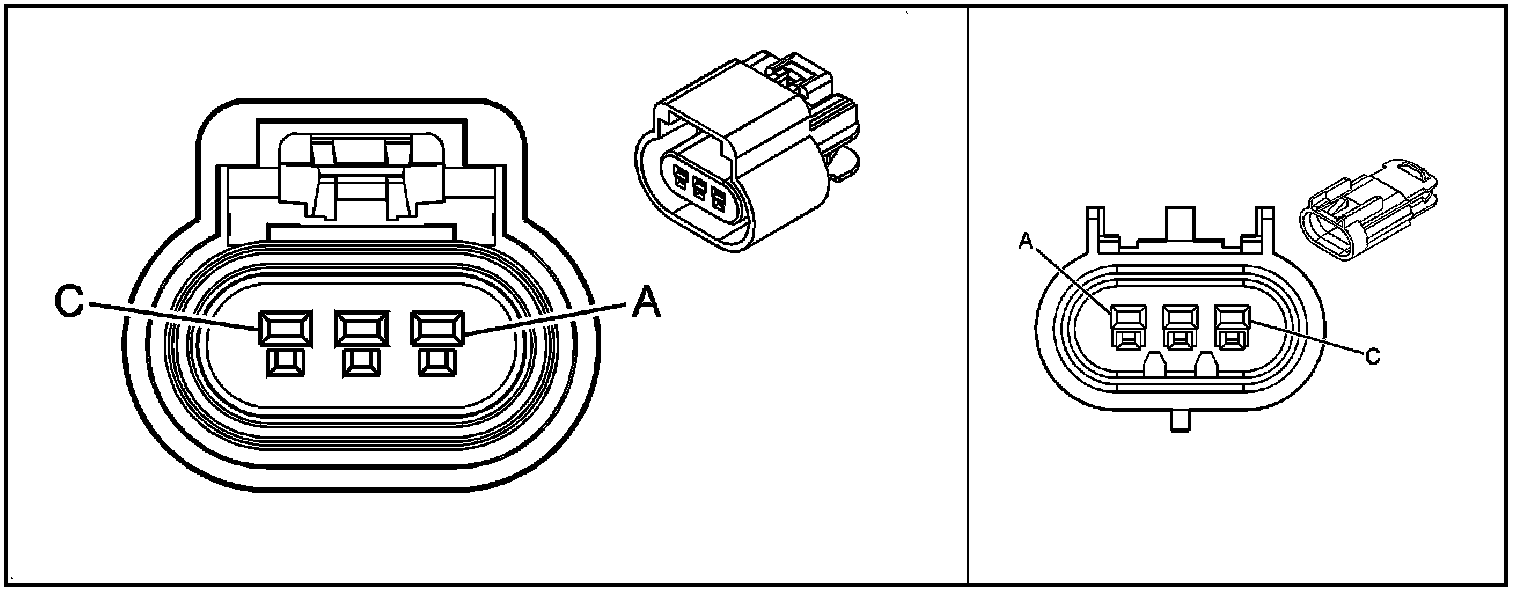

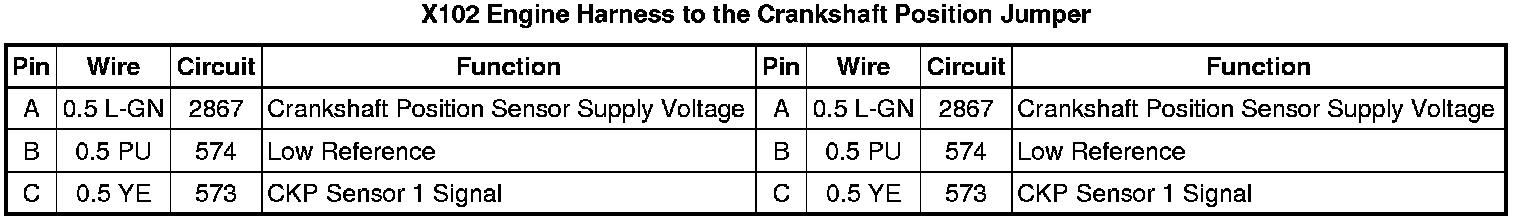

X102 Engine Harness to the Crankshaft Position Jumper
