Control Assembly: Service and Repair

Heater and Air Conditioning Control Replacement

Removal Procedure

1. Remove the instrument panel (I/P) center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel Center Trim Panel Replacement).

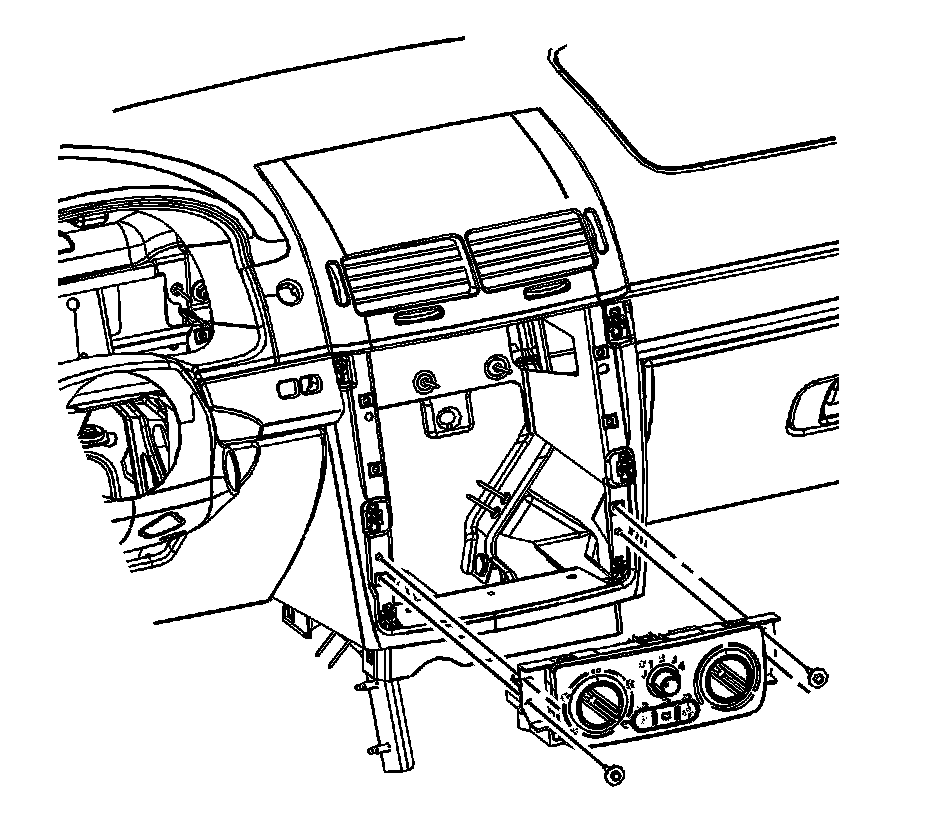

2. Remove the HVAC control module assembly screws.
3. Remove the HVAC control module assembly.

Note: The HVAC control connector-1 and the radio connector-2 can be interchanged. Mark or place tape on the connector to avoid accidental interchange.

4. Disconnect the HVAC control module assembly electrical connectors.

Installation Procedure




1. Connect the HVAC control module assembly electrical connectors.
2. Install the HVAC control module assembly.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the HVAC control module screws.

Tighten the screws to 2.2 Nm (19 lb in).

4. Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Instrument Panel Center Trim Panel Replacement).
