Exhaust Manifold Heat Shield Replacement

Exhaust Manifold Heat Shield Replacement

Removal Procedure

1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement ().
2. Remove the turbocharger assembly, if equipped. Refer to Turbocharger Replacement (Service and Repair).

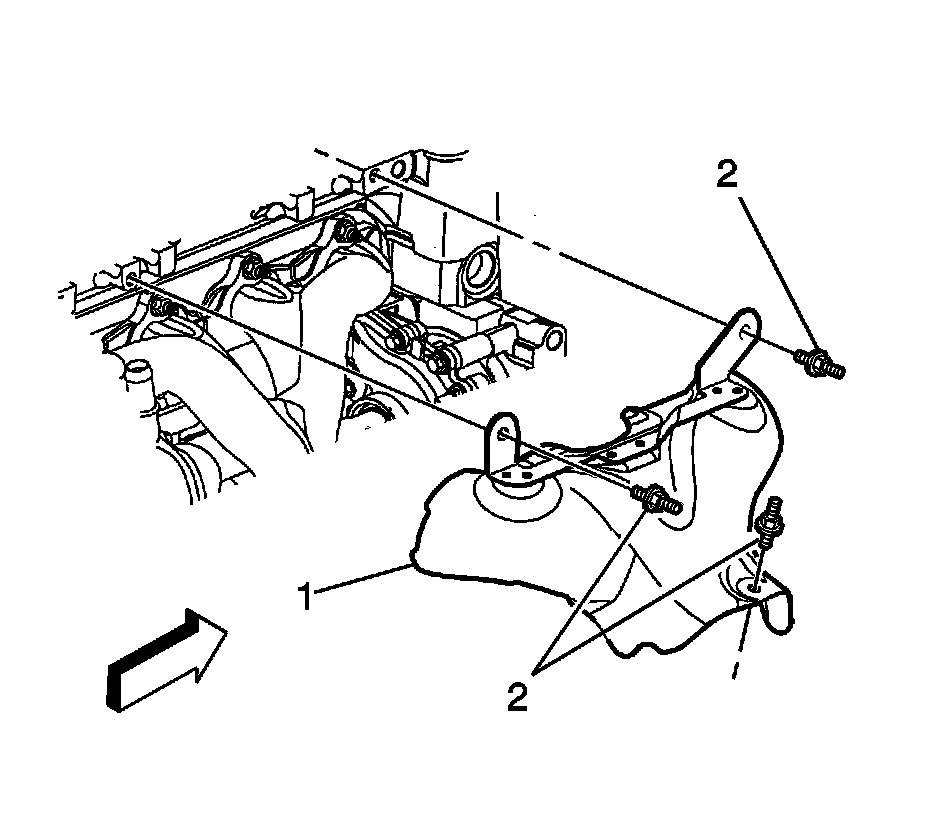

3. Remove the exhaust manifold heat shield studs (2).
4. Remove the exhaust manifold heat shield (1).

Installation Procedure




1. Install the exhaust manifold heat shield (1).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the exhaust manifold heat shield studs (2) and tighten to 22 Nm (16 lb ft).
3. Install the turbocharger assembly, if equipped. Refer to Turbocharger Replacement (Service and Repair).
4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement ().
