71. Engine Flywheel Installation (Manual Transmission)

Engine Flywheel Installation (Manual Transmission)

Special Tools
* J 43653 - Flywheel Holding Tool
* J 45059 - Angle Meter




1. Install the clutch pilot bearing for manual transmission. Refer to Clutch Pilot Bearing Replacement (Service and Repair).

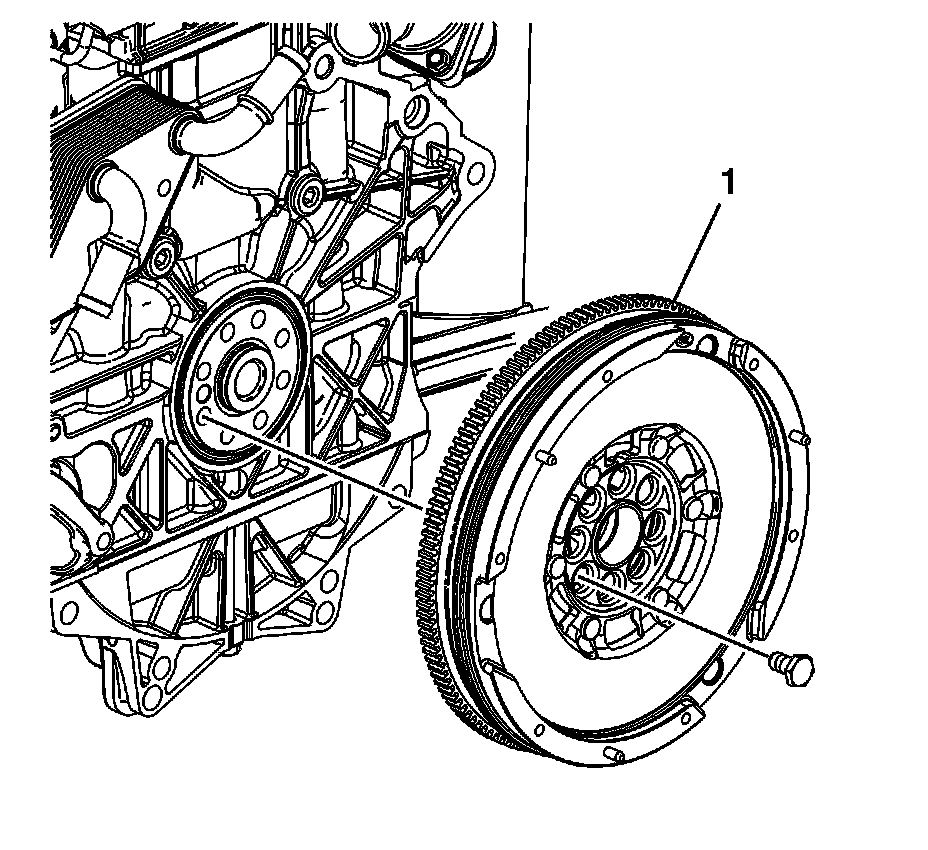

2. Install the flywheel (1).
3. Install the NEW bolts.
4. Install J 43653 - tool in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

Caution: Refer to Fastener Caution (Fastener Caution).

5. Tighten the flywheel bolts to 53 Nm (39 lb ft), plus 25 degrees , using J 45059 - meter.
