5. Engine Flywheel Removal (Automatic Transmission)

Engine Flywheel Removal (Automatic Transmission)

Special Tools

J 43653 - Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools (Special Tools)




1. Ensure that J 43653 - tool is installed and engaging the flywheel to prevent crankshaft rotation.
2. Remove the flywheel attaching bolts.

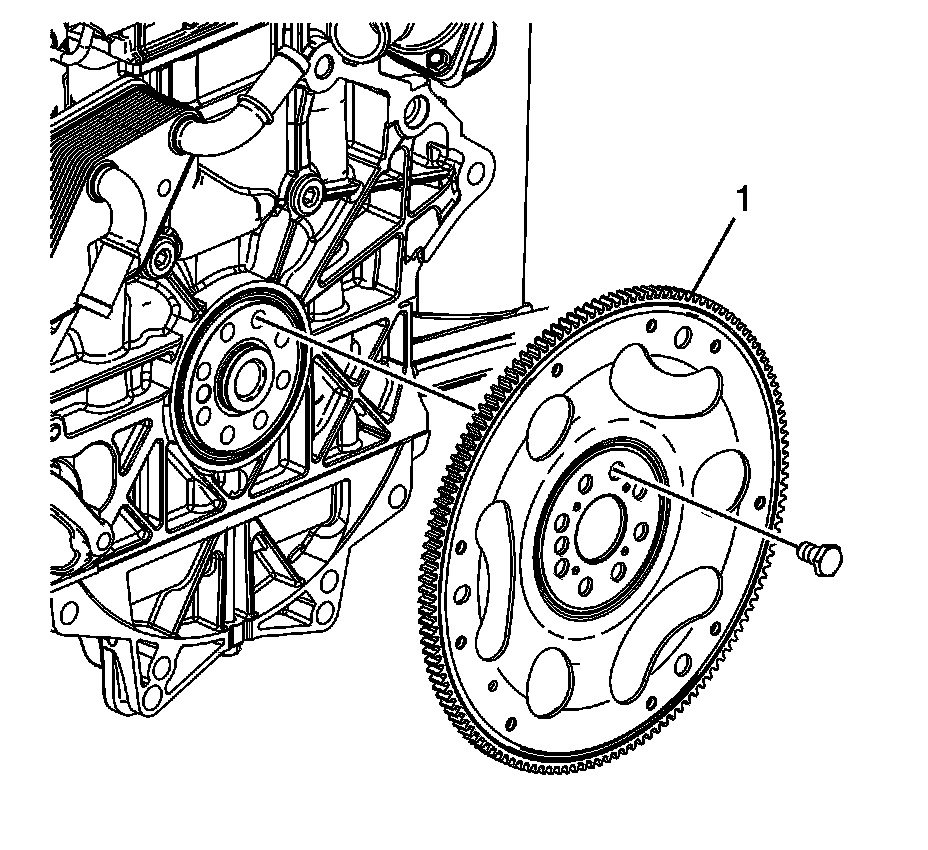

3. Remove the flywheel (1).
4. Remove J 43653 - tool.
