2. Engine Oil Cooler Removal

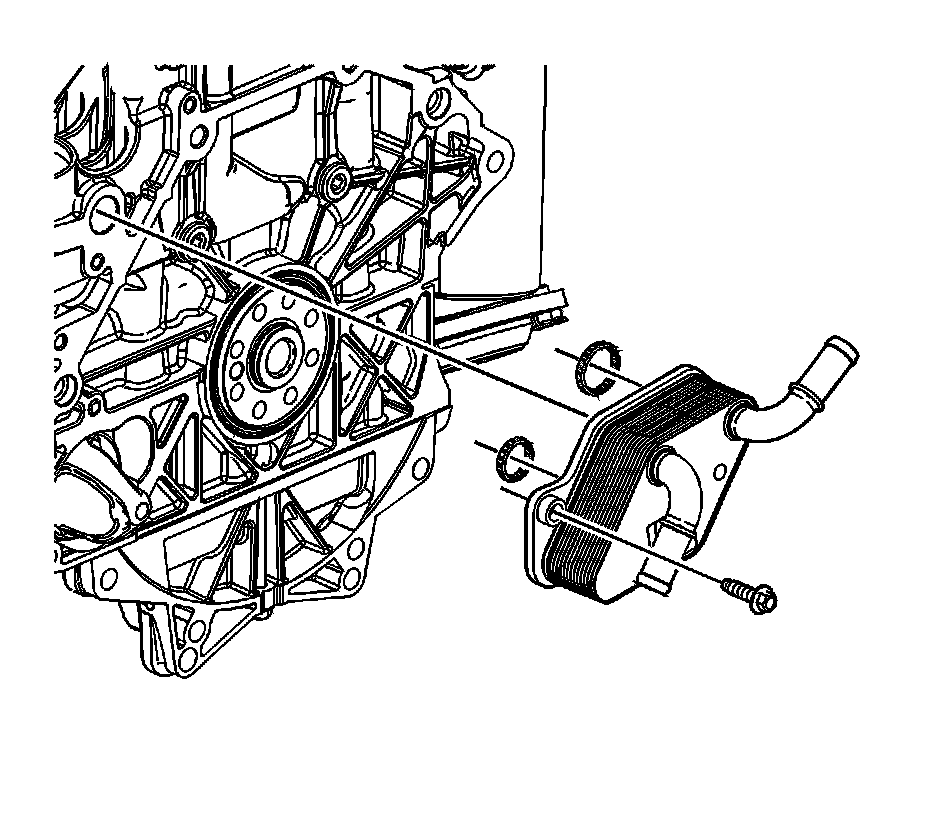

Engine Oil Cooler Removal




1. Remove the oil cooler bolt.

Important: The oil cooler cannot be flushed or otherwise cleaned of contamination. Replace the oil cooler if a mechanical condition is suspected that could cause the oil cooler to be contaminated.


2. Remove the oil cooler.
