Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement

Special Tools

J 42067 Rear Main Seal Installer

Removal Procedure

1. Remove the transmission. Refer to Transmission Replacement (Transmission Replacement).




2. Remove the flywheel.





Note: Do not damage the outside diameter of the crankshaft or chamber with any tool.

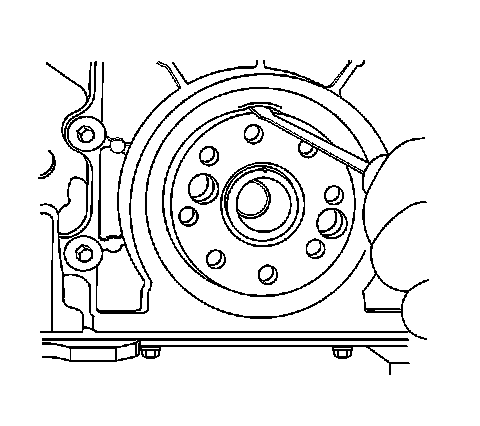

3. Pry the crankshaft rear oil seal with a flat-bladed tool.

Installation Procedure




1. Use the J 42067 and install the seal.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the flywheel and tighten to 53 Nm (39 lb ft) plus 25 degrees.
3. Install the transmission. Refer to Transmission Replacement (Transmission Replacement).
