Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator Tube Replacement

Removal Procedure




1. Remove the charge air cooler (CAC) outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement (Charge Air Cooler Outlet Pipe Replacement).

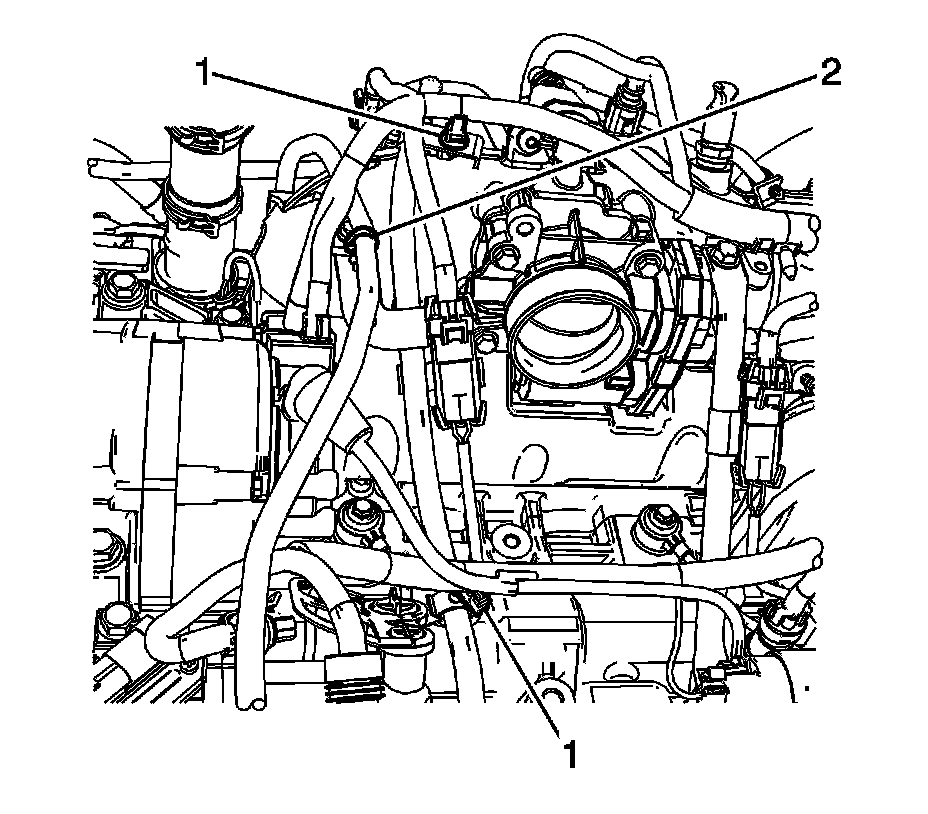

2. Remove two wire harness clips (1) from the oil level indicator tube bracket.
3. Remove the vacuum hose (2) from the oil level indicator tube.

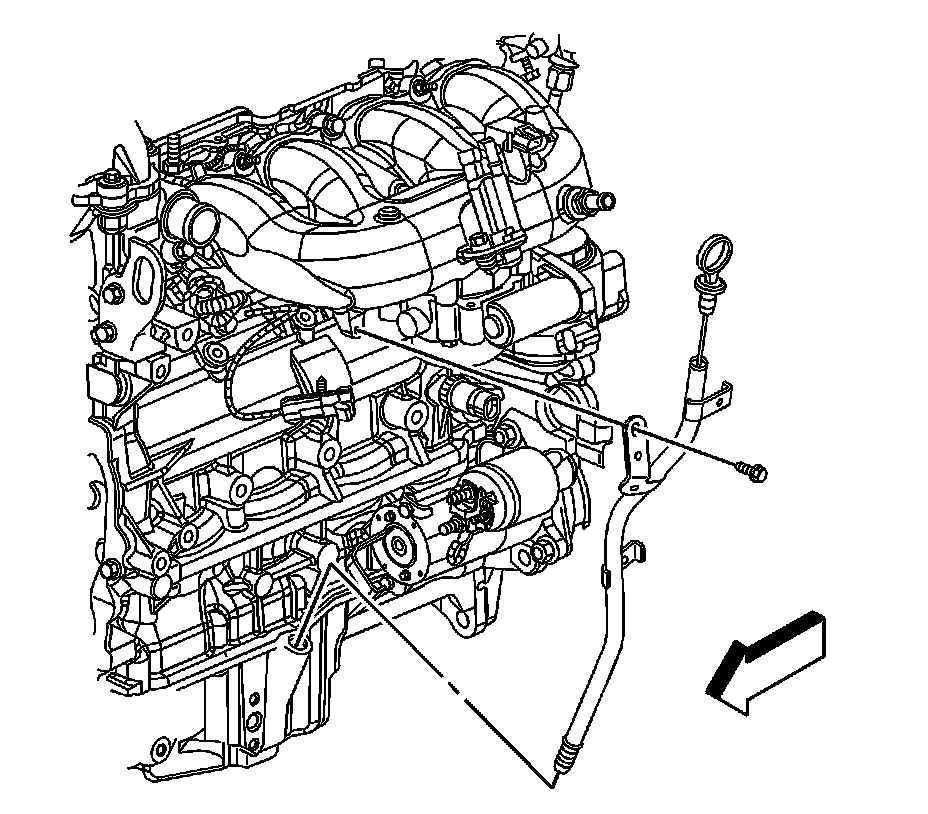

4. Remove the oil level indicator tube bolt.
5. Remove the oil level indicator tube and indicator.

Installation Procedure




1. Lubricate the oil level indicator tube O-ring seal with lubricant. Refer to Adhesives, Fluids, Lubricants, and Sealers (Adhesives, Fluids, Lubricants, and Sealers).
2. Install the oil level indicator tube to the engine block.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the oil level indicator tube bolt.

Tighten the bolt to 10 Nm (89 lb in).




4. Install the vacuum hose (2) to the oil level indicator tube.
5. Install two wire harness clips (1) to the oil level indicator tube bracket.
6. Install the CAC outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement (Charge Air Cooler Outlet Pipe Replacement).
