Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

Removal Procedure

1. Remove the engine mount. Refer to Engine Mount Replacement (Engine Mount Replacement).

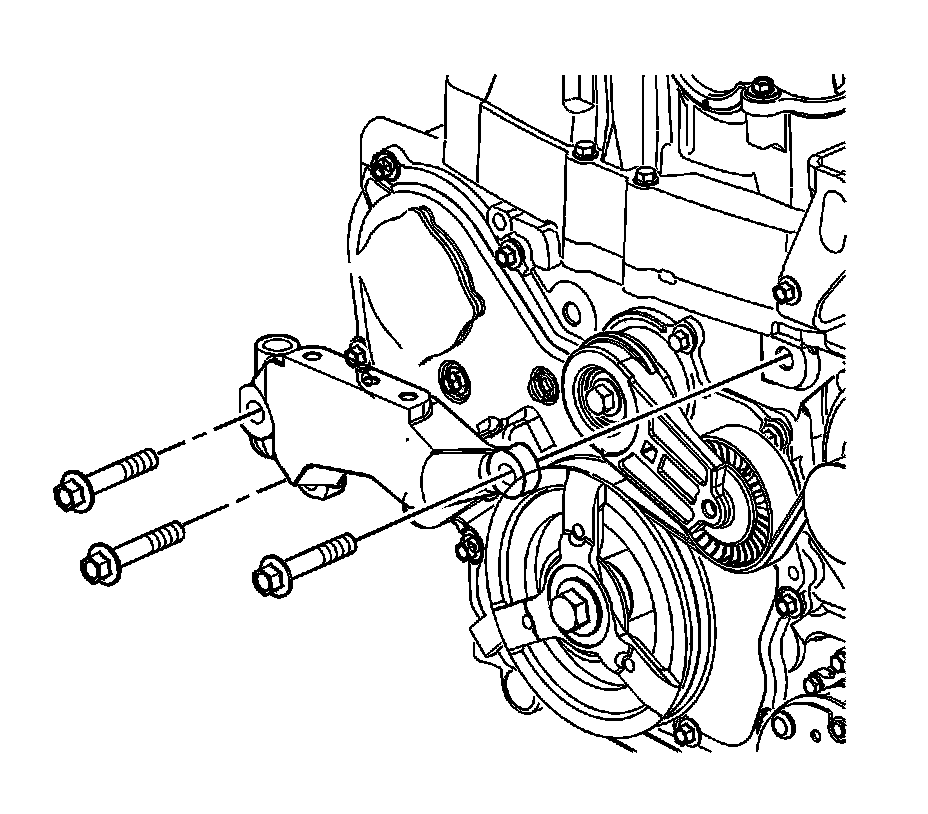

2. Remove the intermediate bracket to engine bolts.
3. Remove the intermediate bracket from the engine.

Installation Procedure




1. Install the intermediate bracket to the engine.
2. Hand tighten the engine mount intermediate bracket bolts in the following locations:

* The long bolts in the forward and front lower holes
* The short bolt in the rear upper hole

Caution: Refer to Fastener Caution (Fastener Caution).

3. Tighten the intermediate bracket bolts to 100 Nm (74 lb ft).
4. Install the engine mount. Refer to Engine Mount Replacement (Engine Mount Replacement).
