Engine - Coolant Temperature Sensor/Switch: Diagrams




Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (LAP)

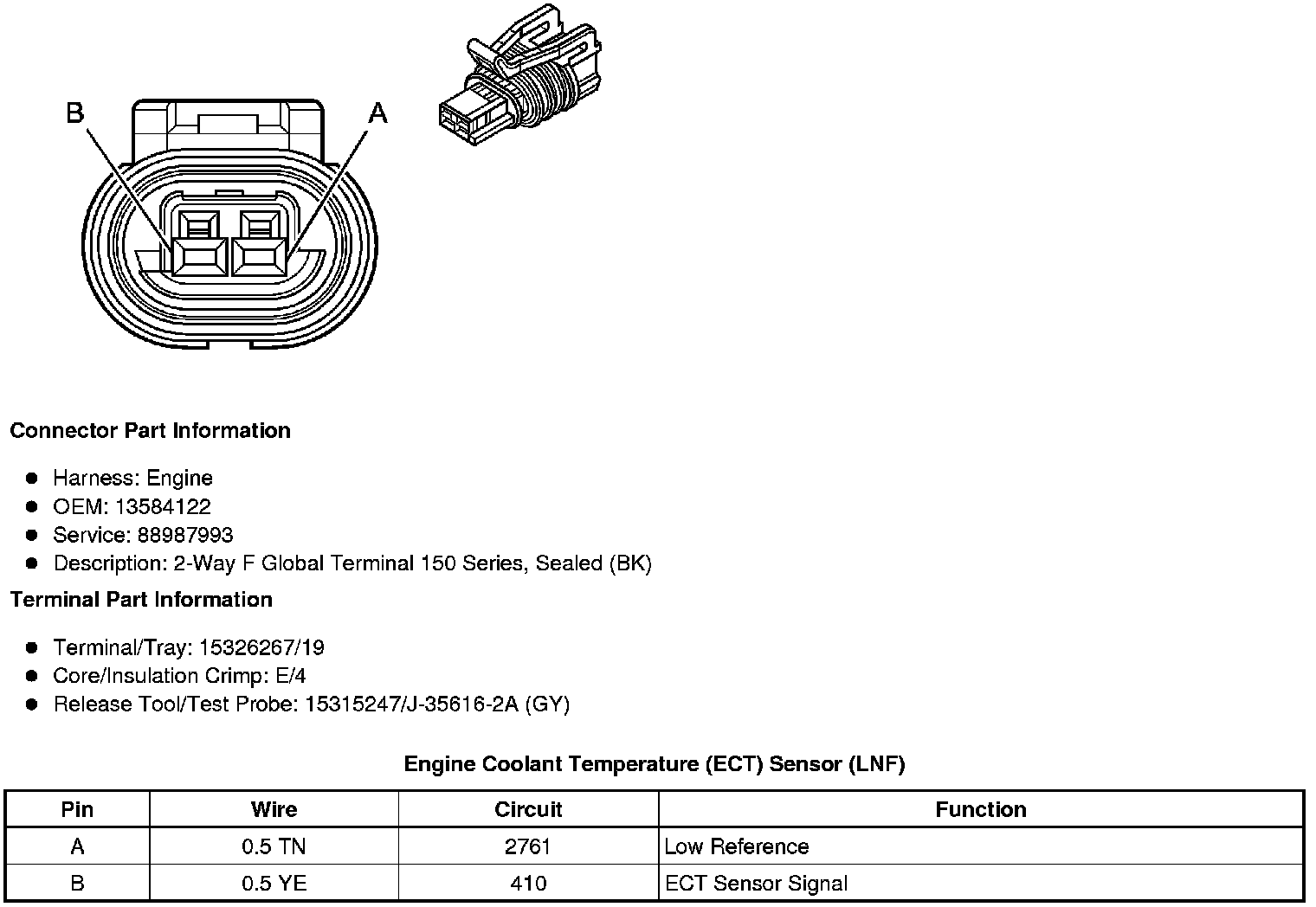

Engine Coolant Temperature (ECT) Sensor (LNF)
