Power Distribution Schematics
>>

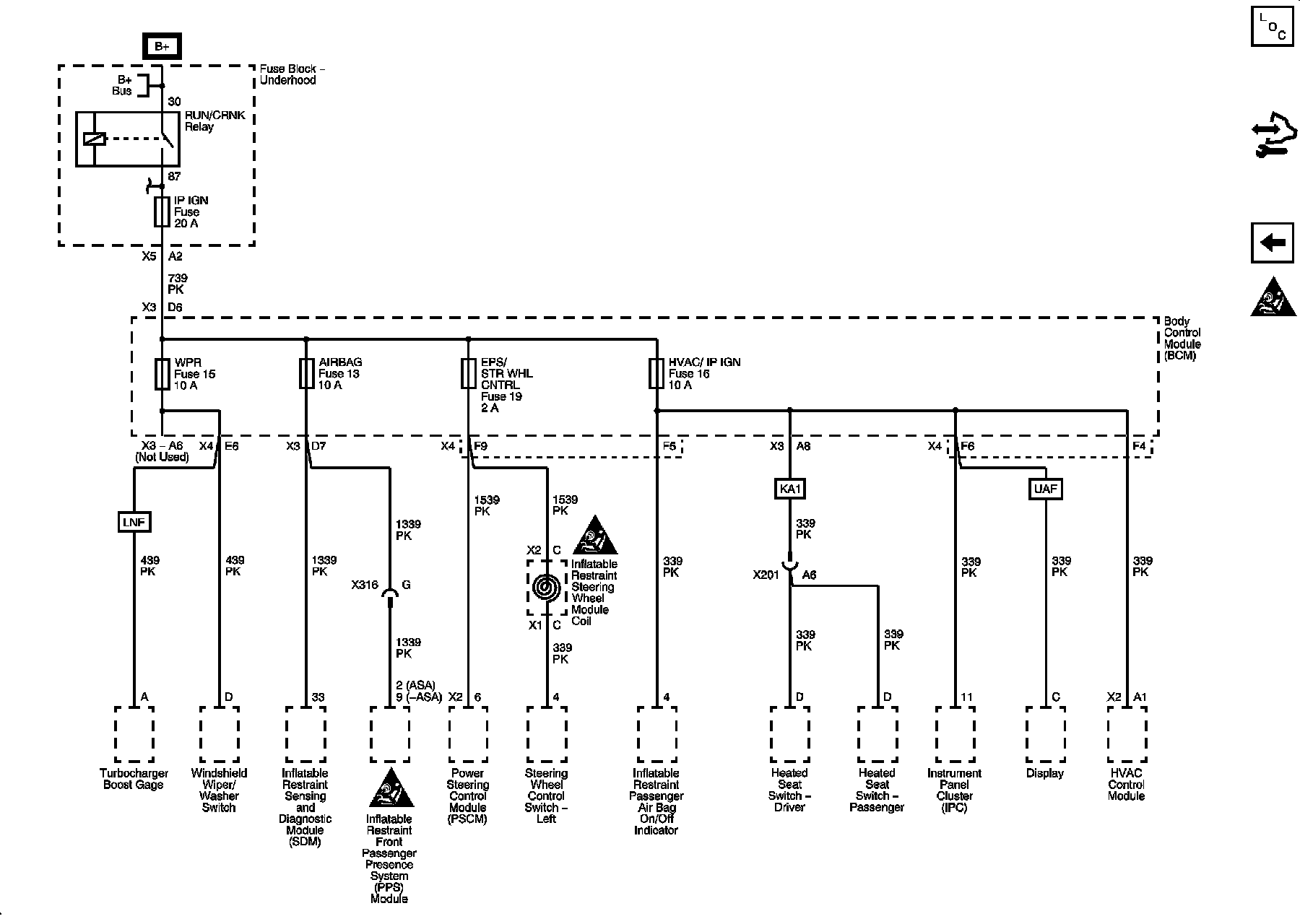

Power Distribution Schematic 8
Power Distribution Schematic 8
Power Distribution Schematics
AIRBAG, EPS/STR WHL CNTRL, HVAC/IP IGN, IP IGN, and WPR Fuses
