Chevrolet
>>
2010
>>
Cobalt L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution Schematics
>>
Power Distribution Schematic 2
Power Distribution Schematic 2
Power Distribution Schematics

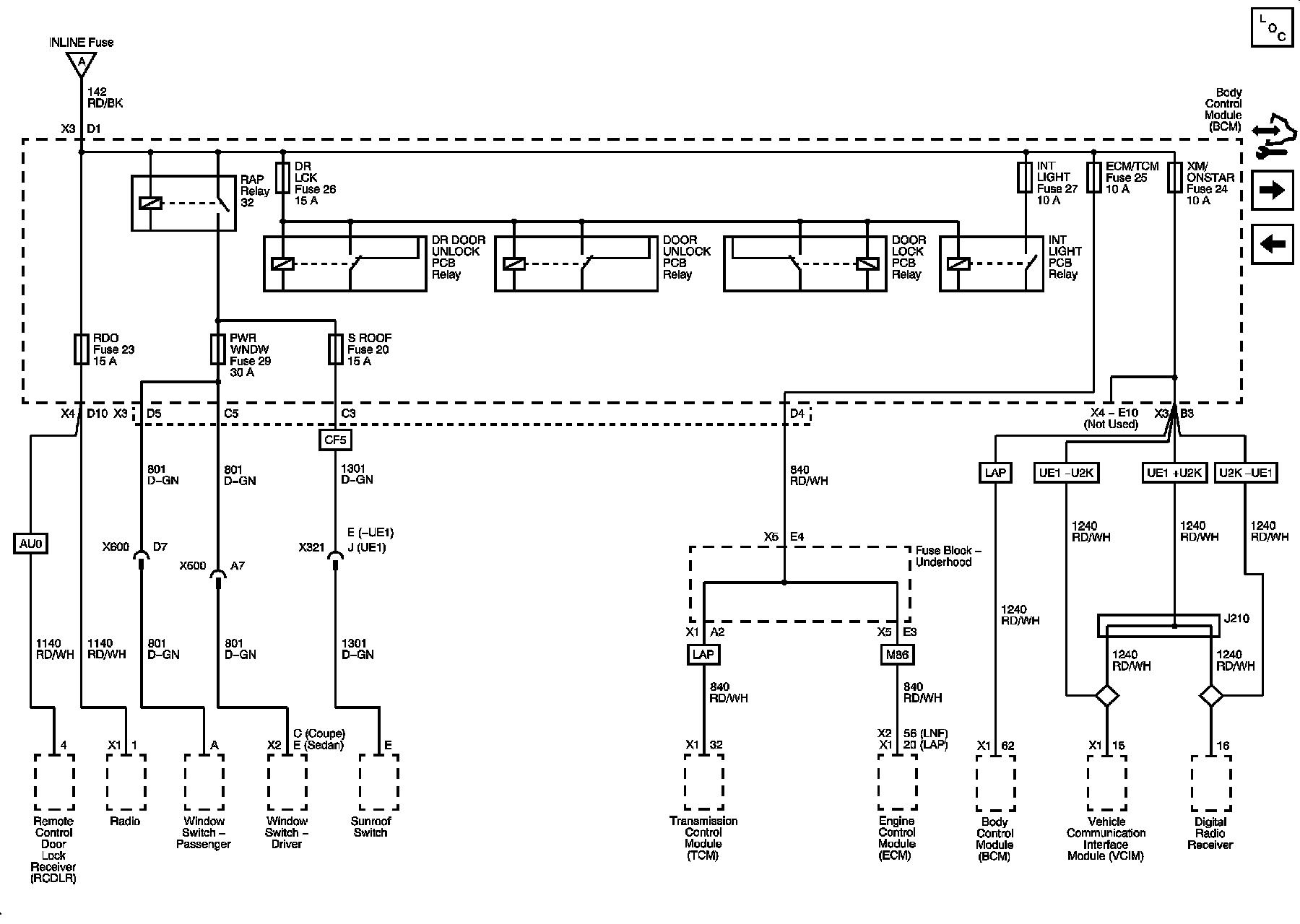

DR LCK, ECM/TCM, INT LIGHT, PWR WNDW, RDO, S ROOF, and XM/ONSTAR Fuses
