System Diagram
Engine Controls Schematics

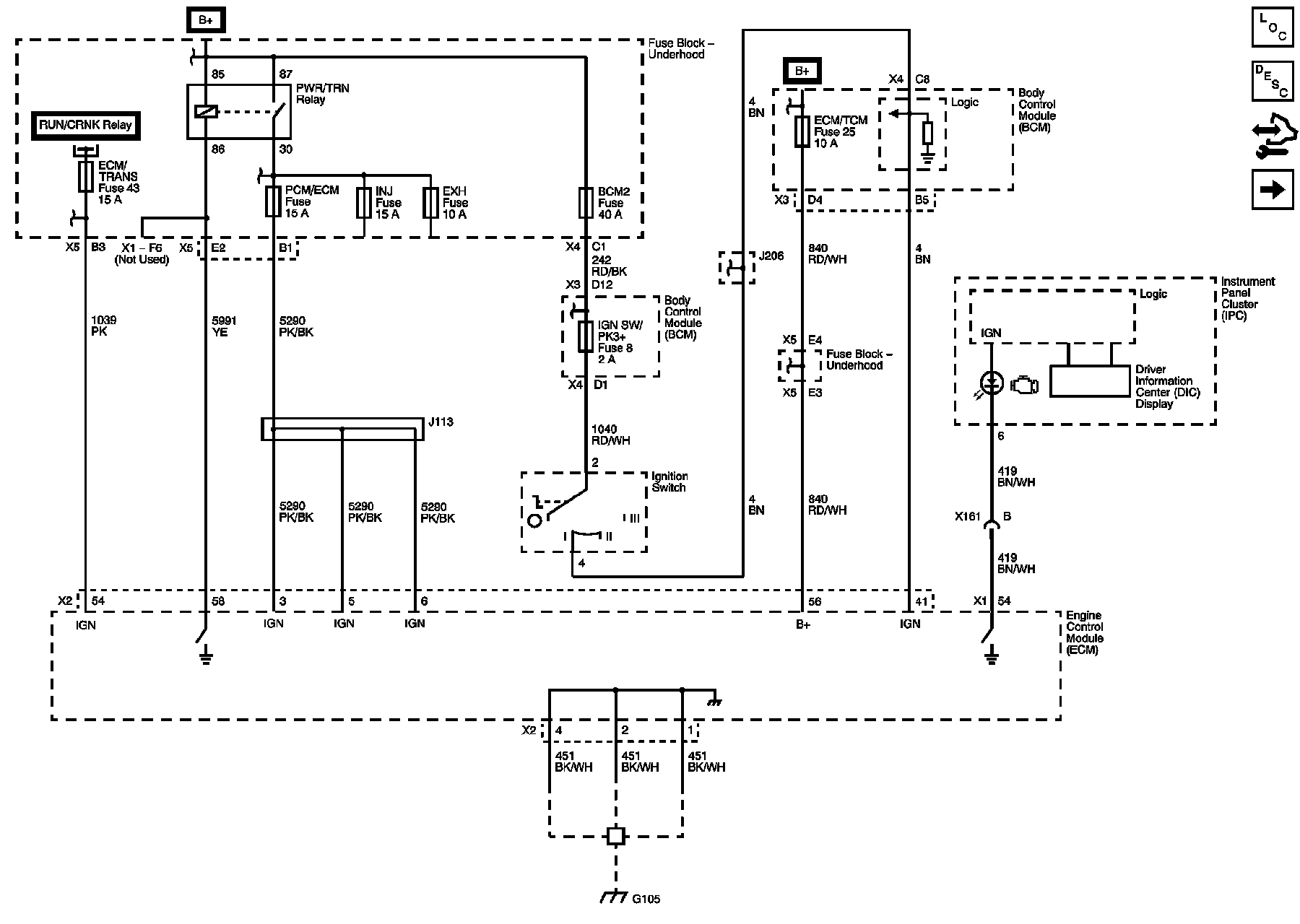

Power, Ground, and MIL

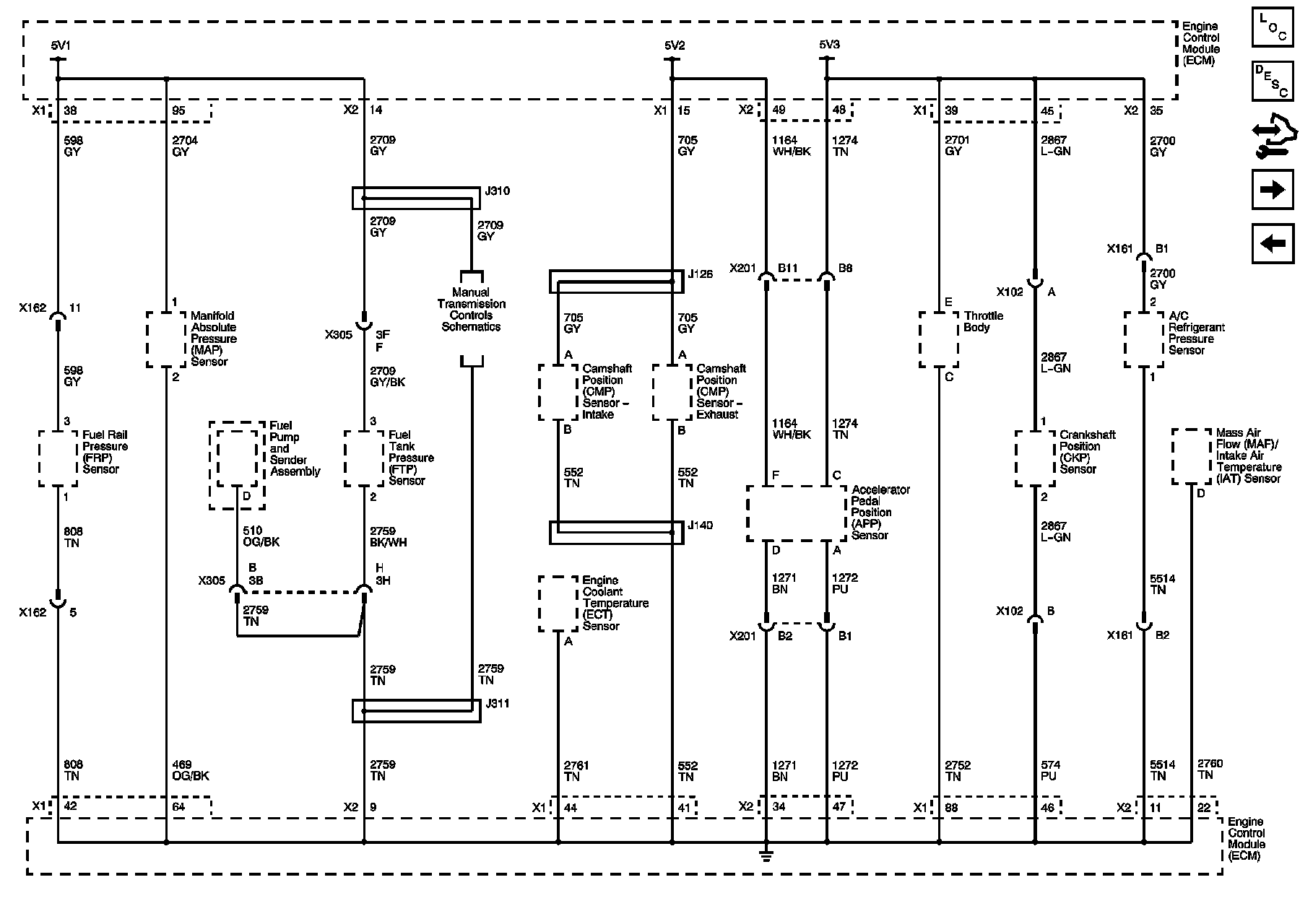

5-Volt and Low Reference Bus

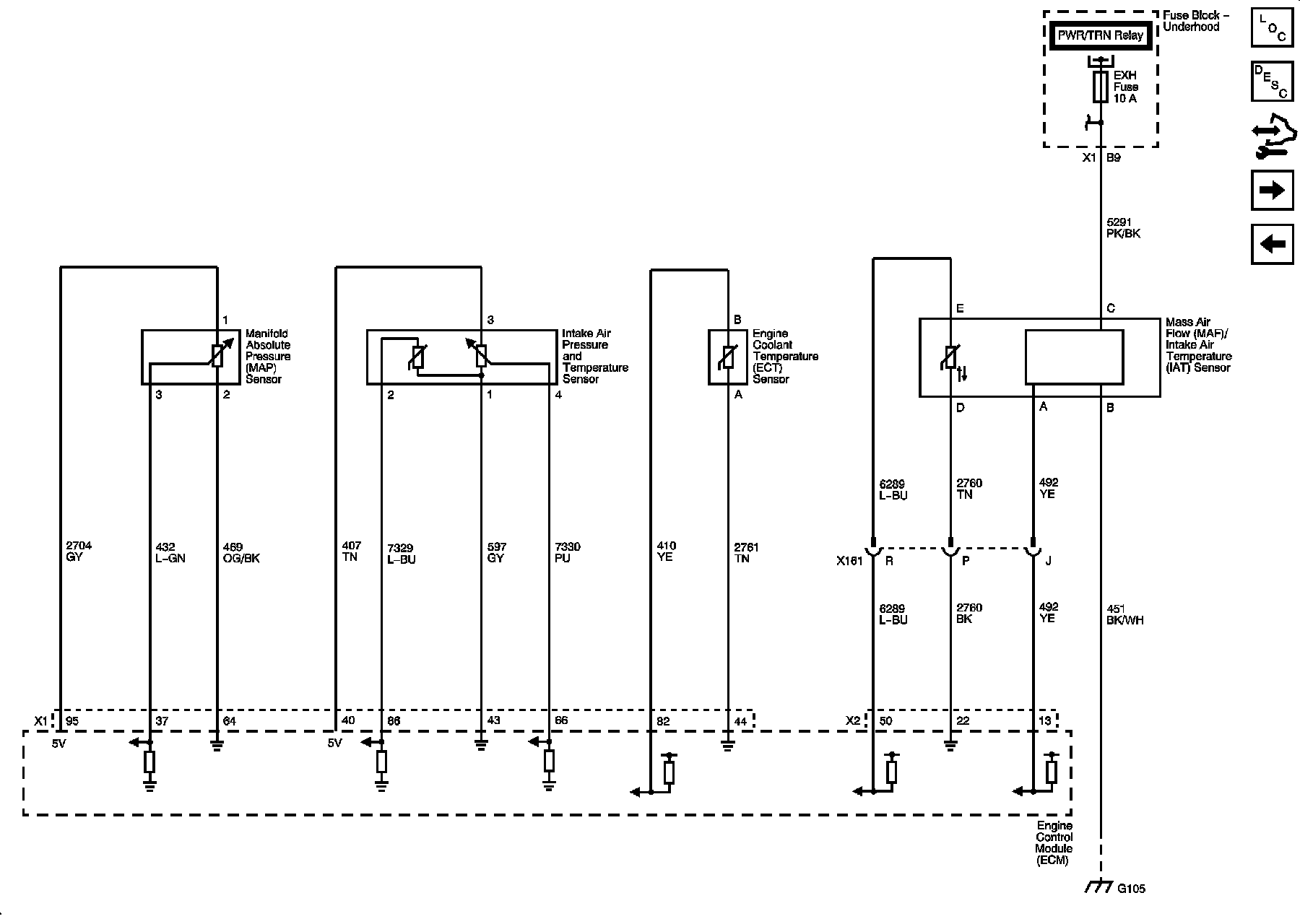

Engine Data Sensors - Pressure, Temperature

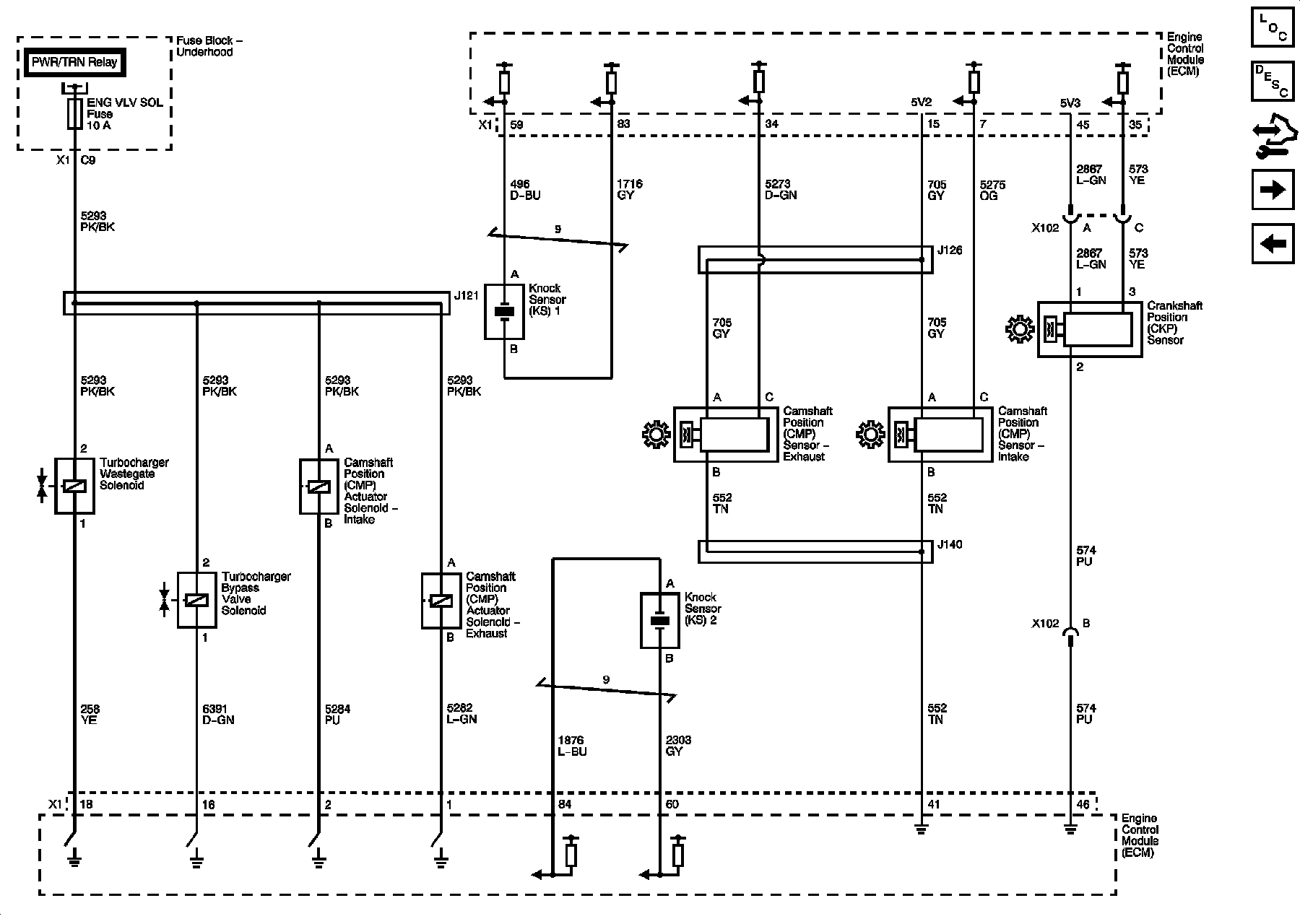

Engine Data Sensors - CKP, CMP, KS and Turbo Solenoids

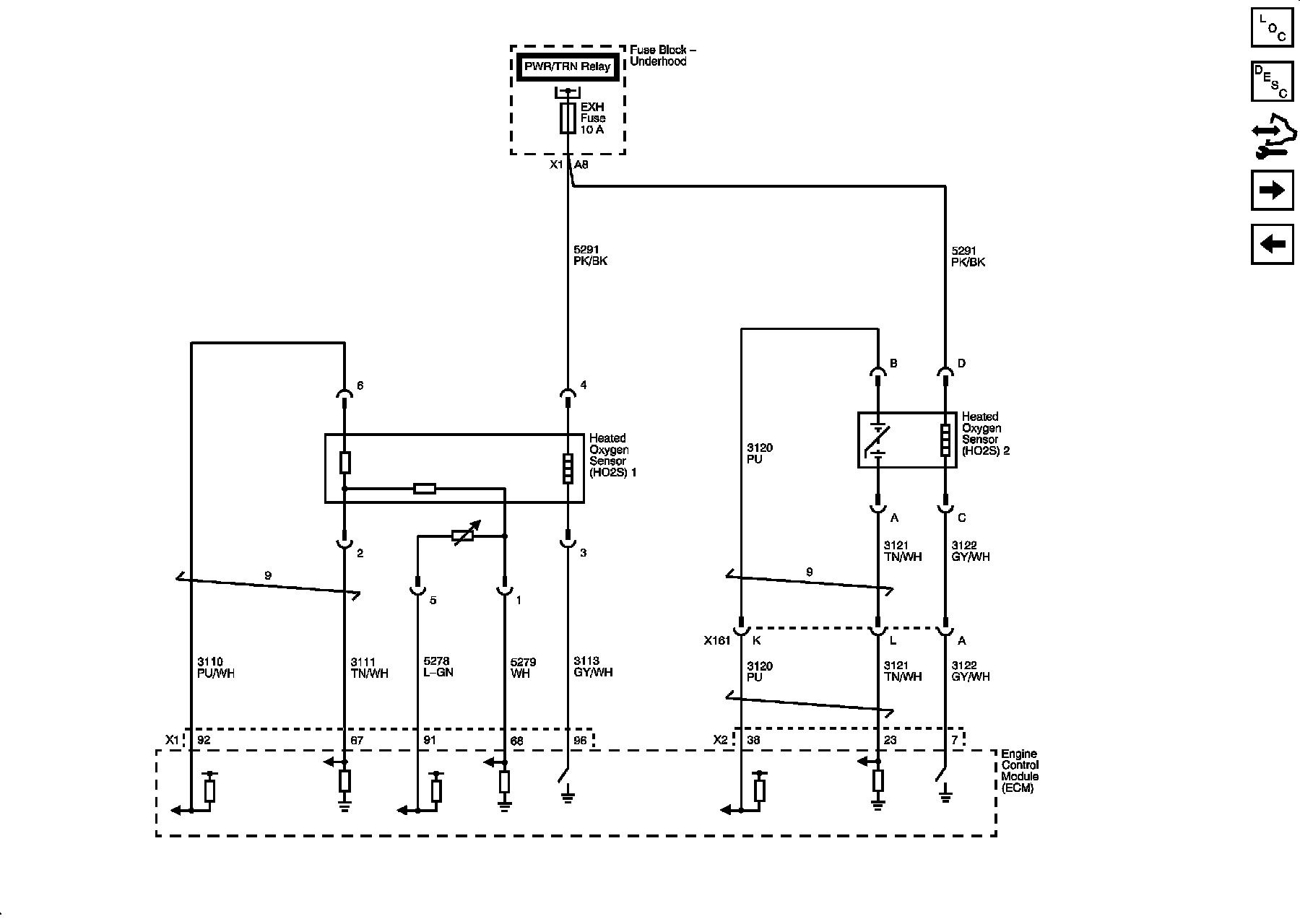

Engine Data Sensors - HO2S

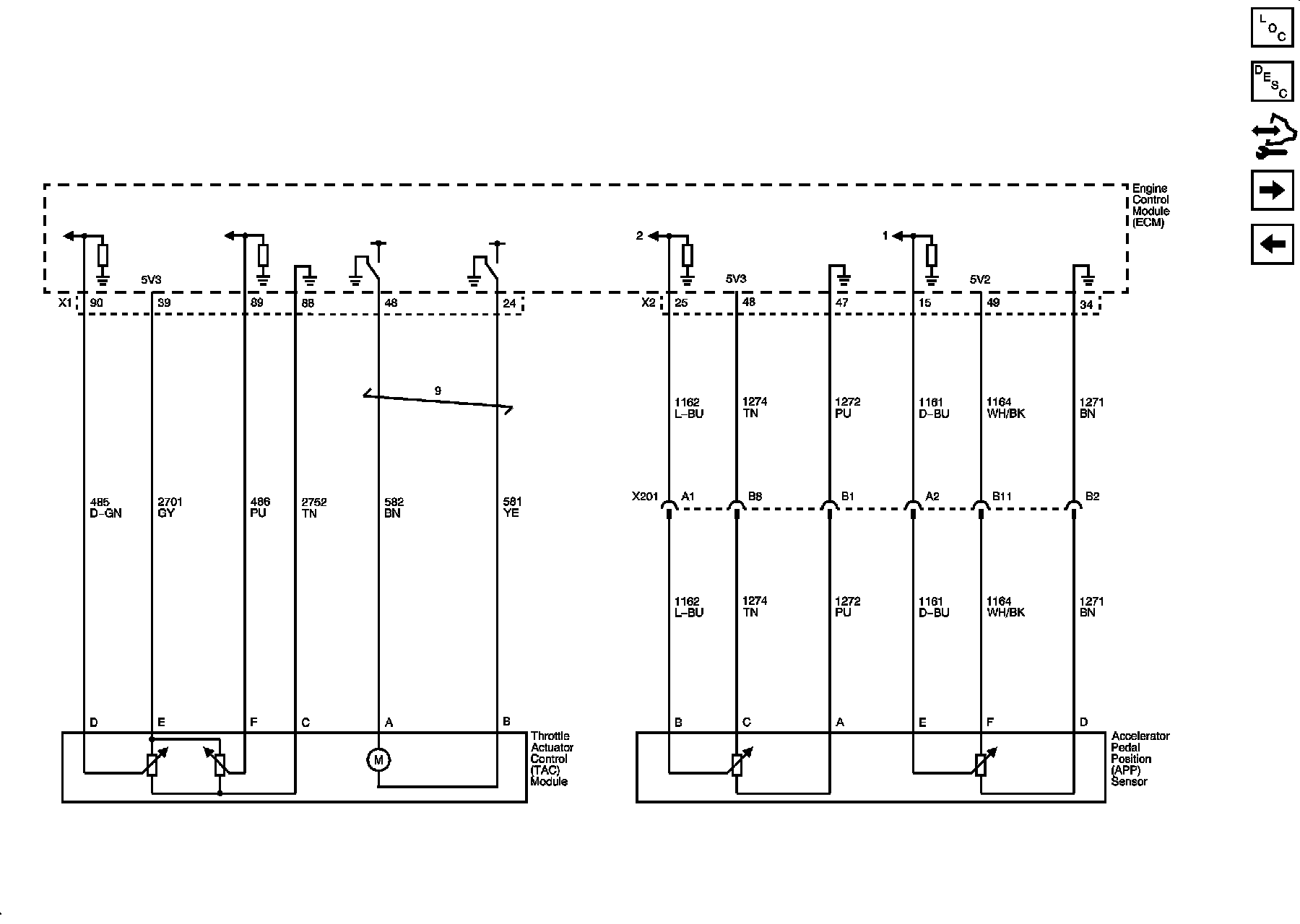

Engine Data Sensors - APP, TAC

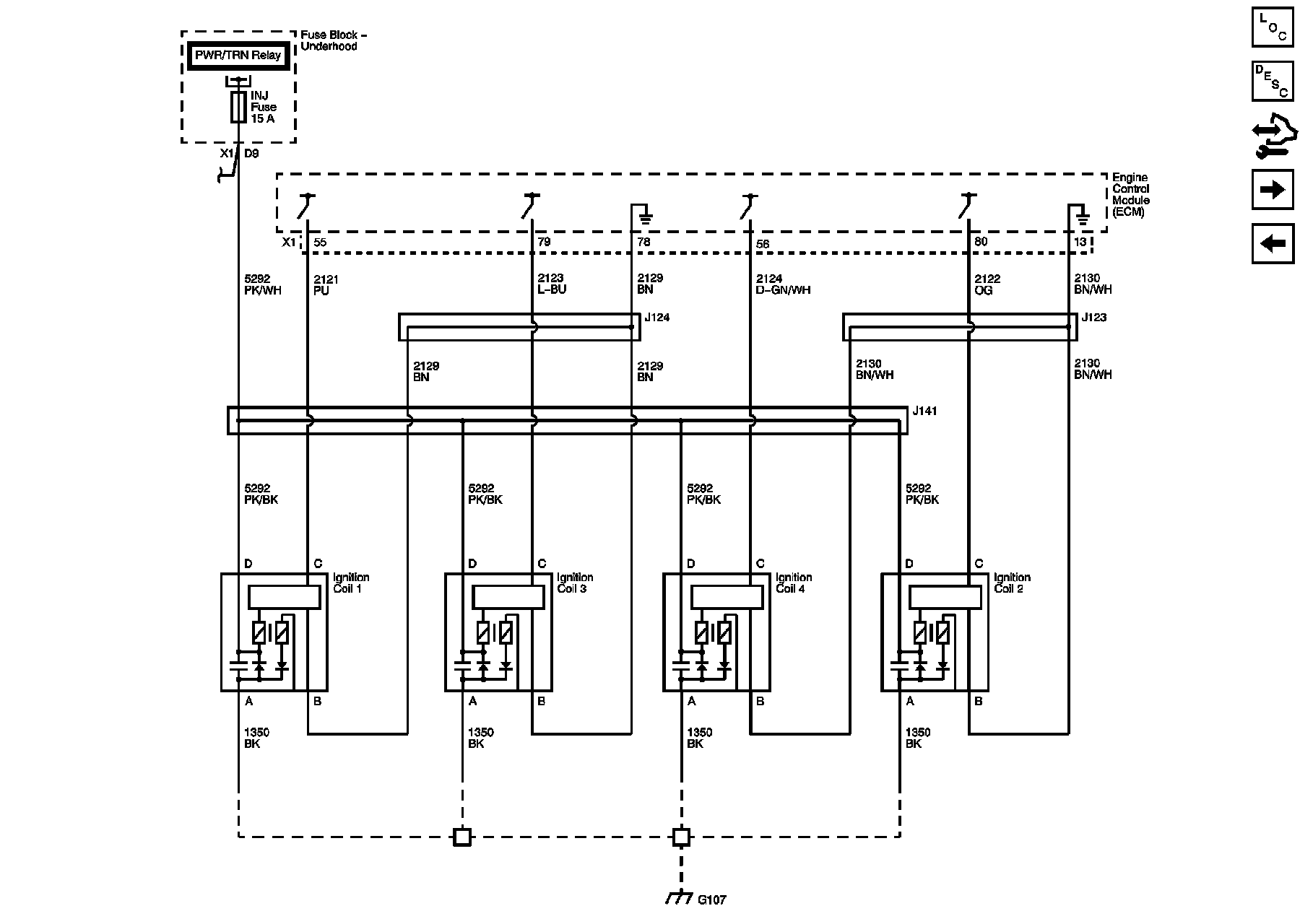

Ignition Controls - Ignition System

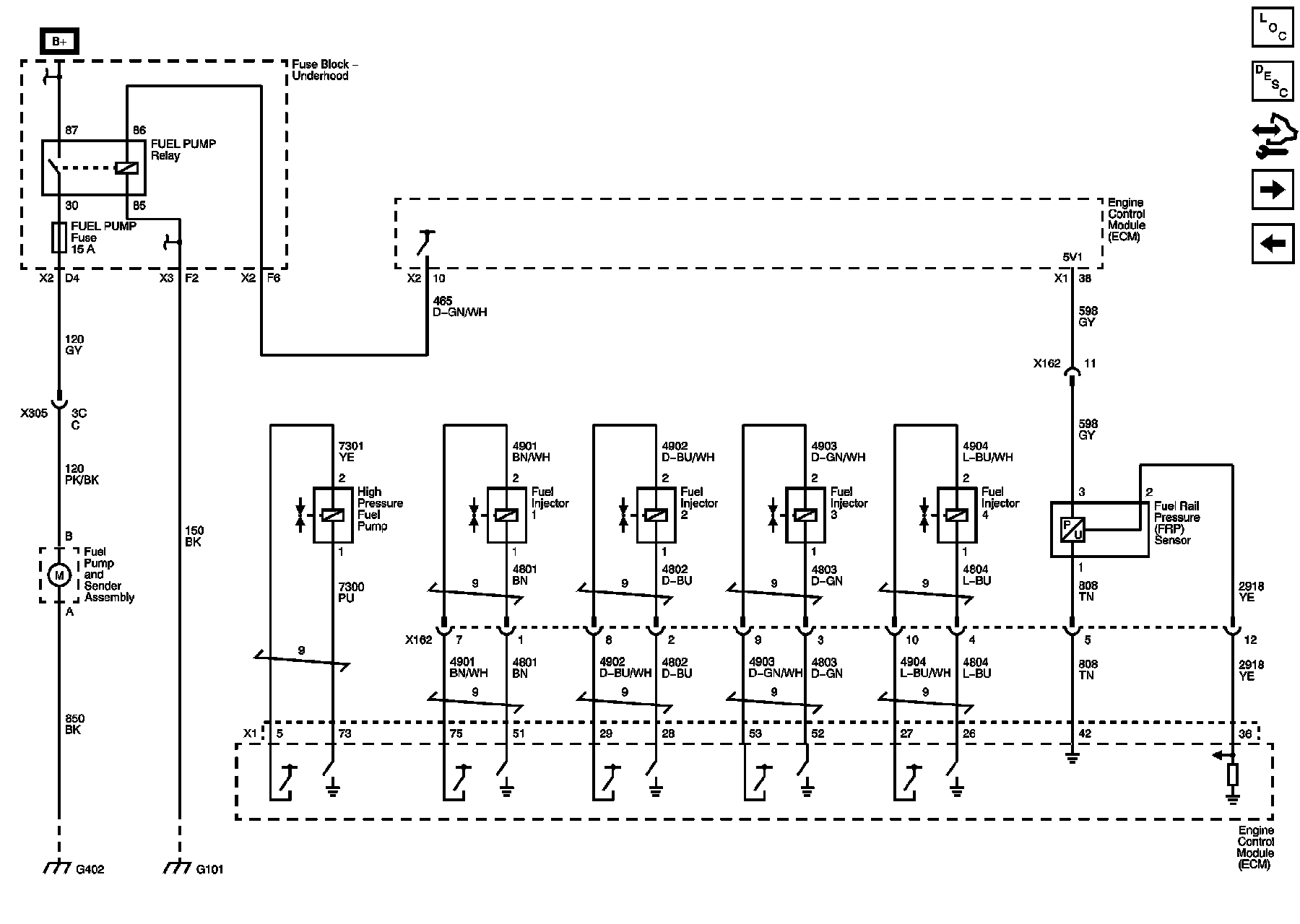

Fuel Controls - Fuel Delivery

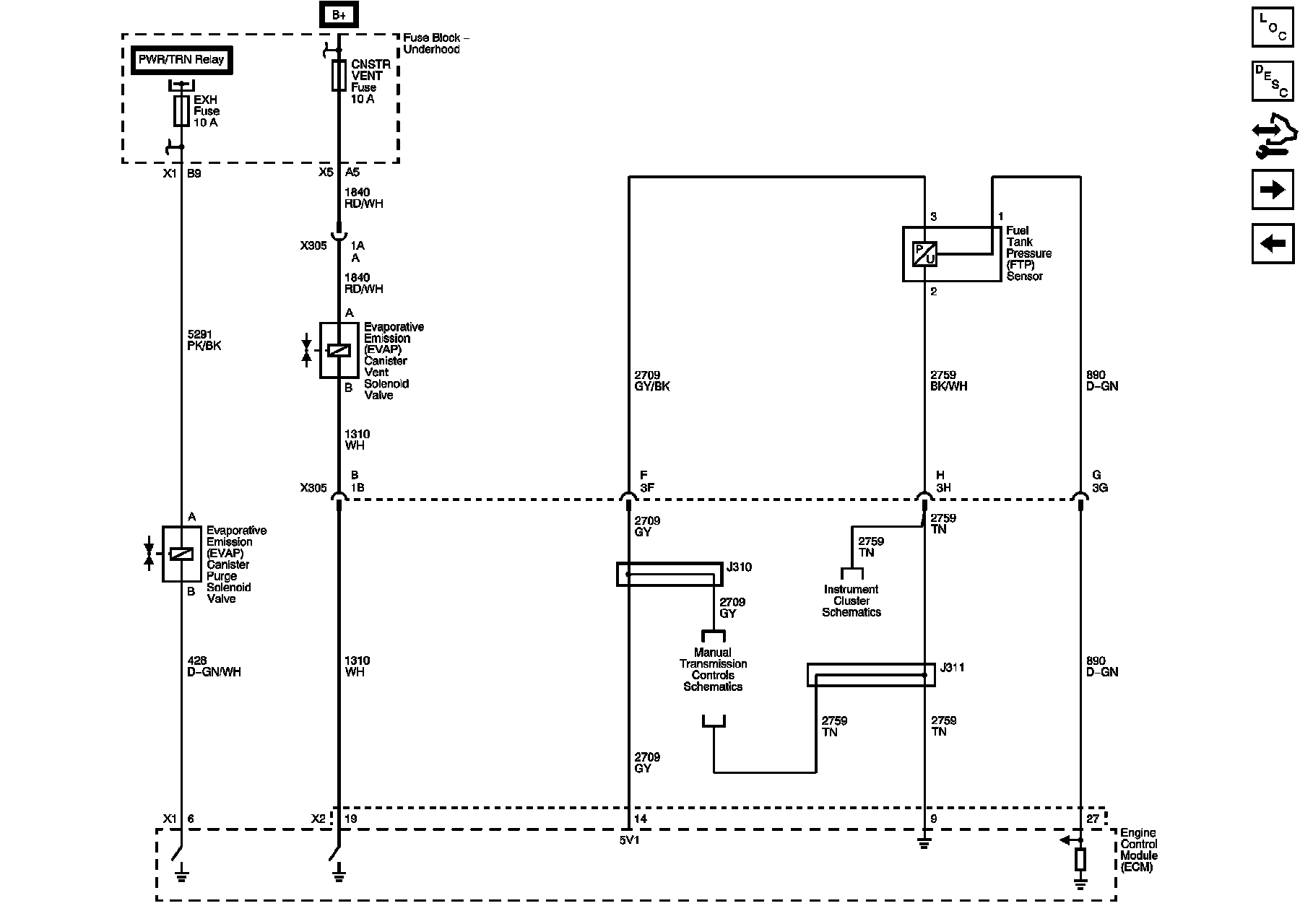

Fuel Controls - EVAP Controls

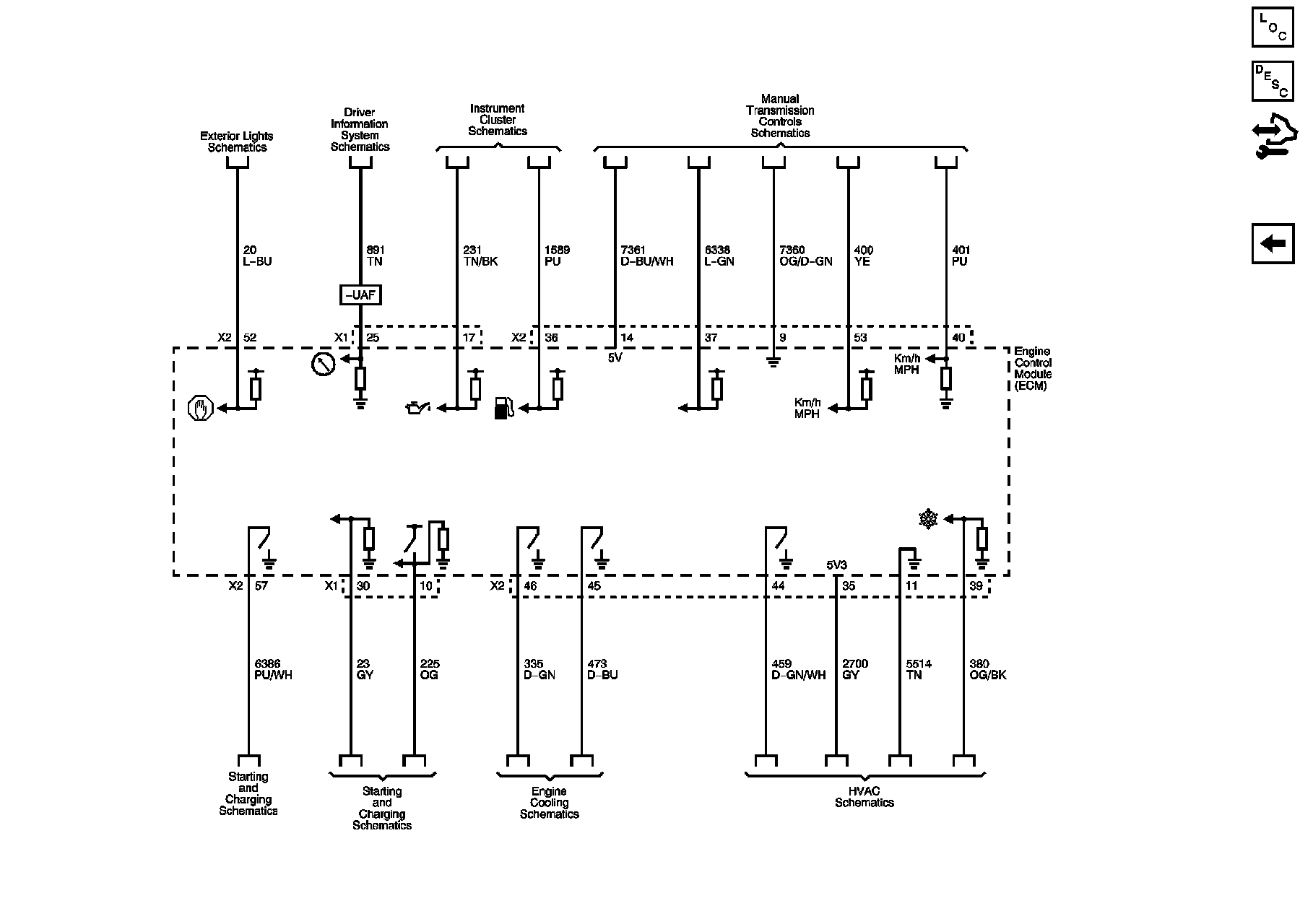

Controlled/Monitored Subsystem References
