Home >> Chevrolet >> 2010 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body Control Systems

Body Control Systems




Body Control System Schematics

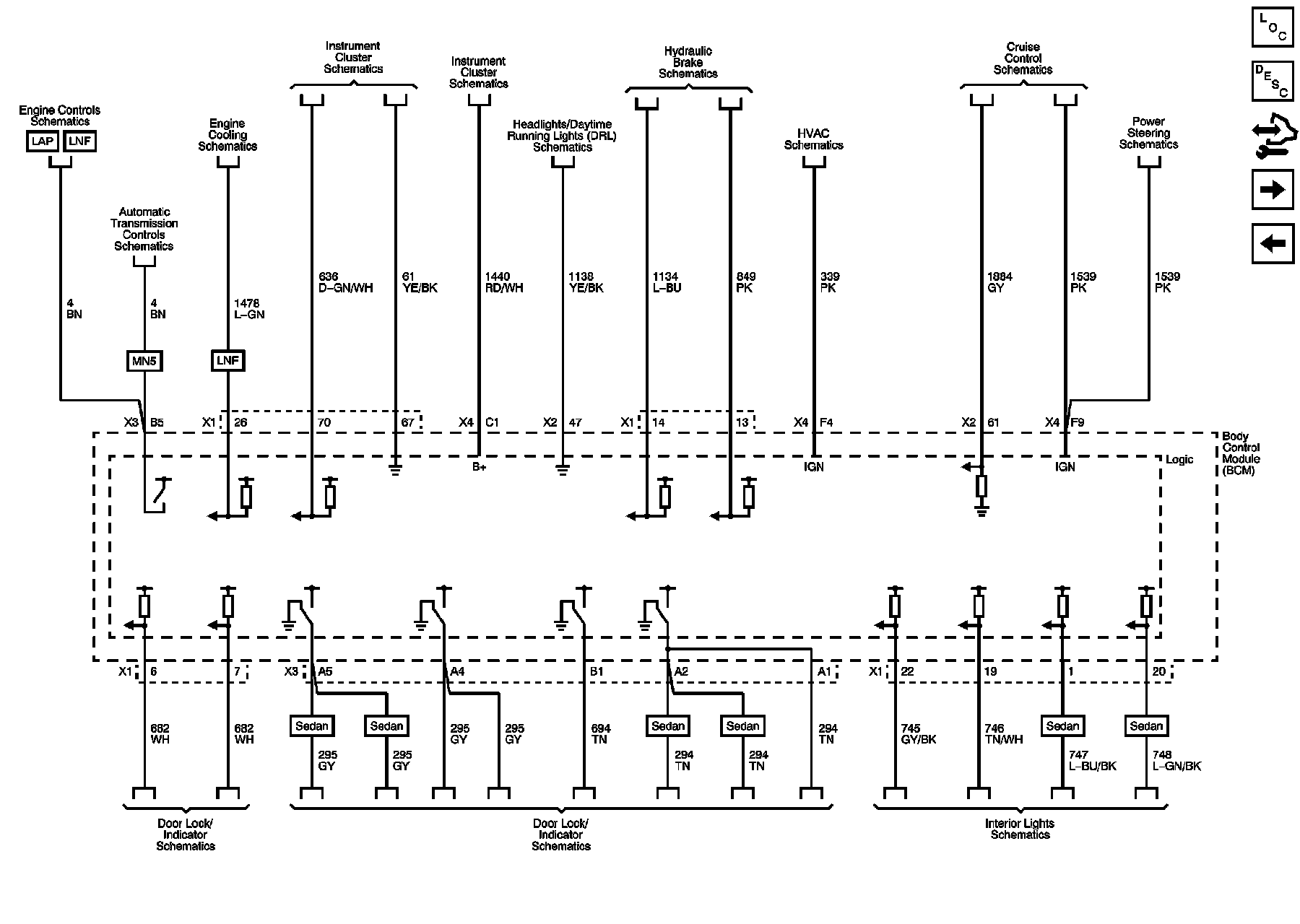

Power, Ground, Communication, References (1 of 5)

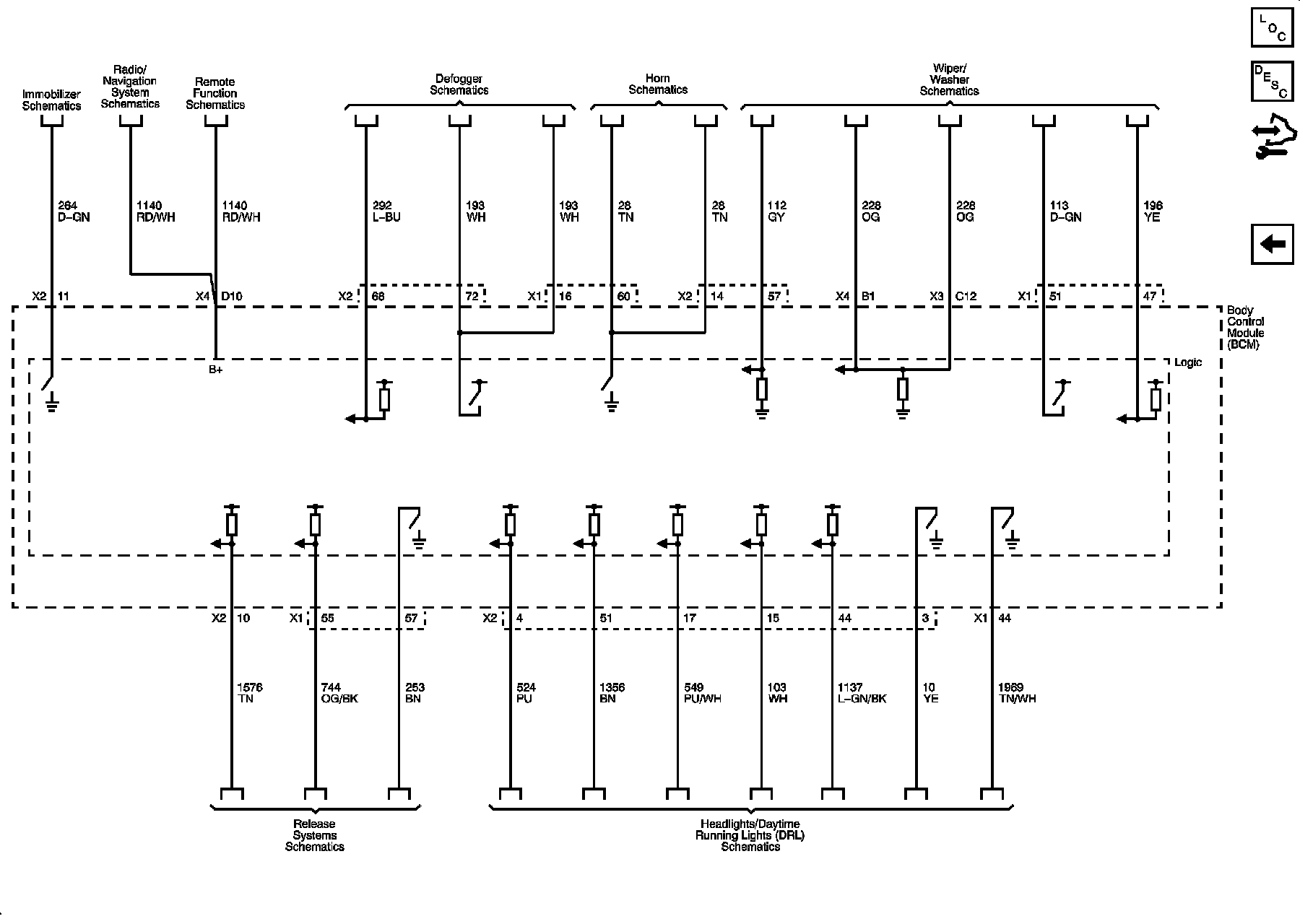

References (2 of 5)

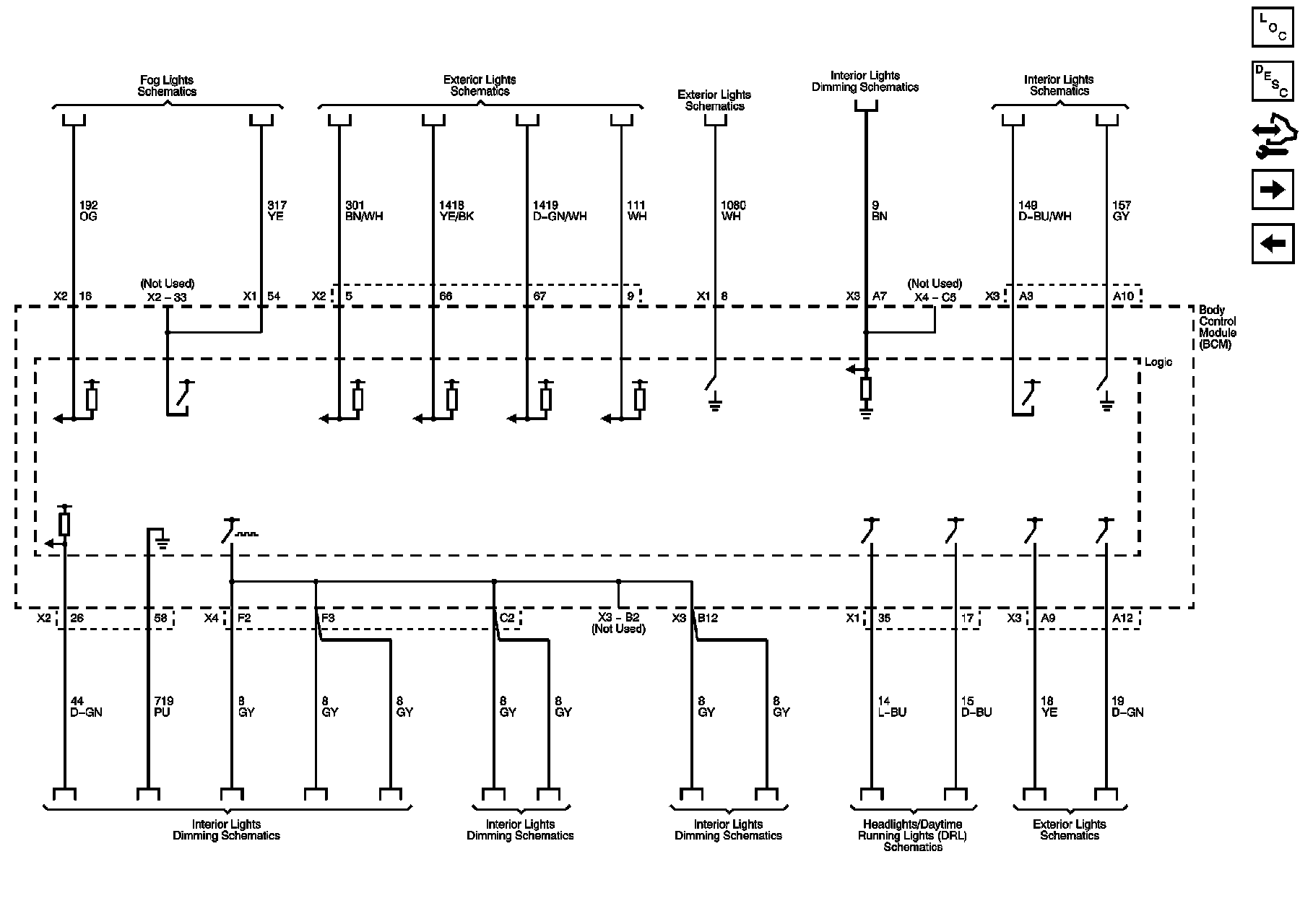

References (3 of 5)

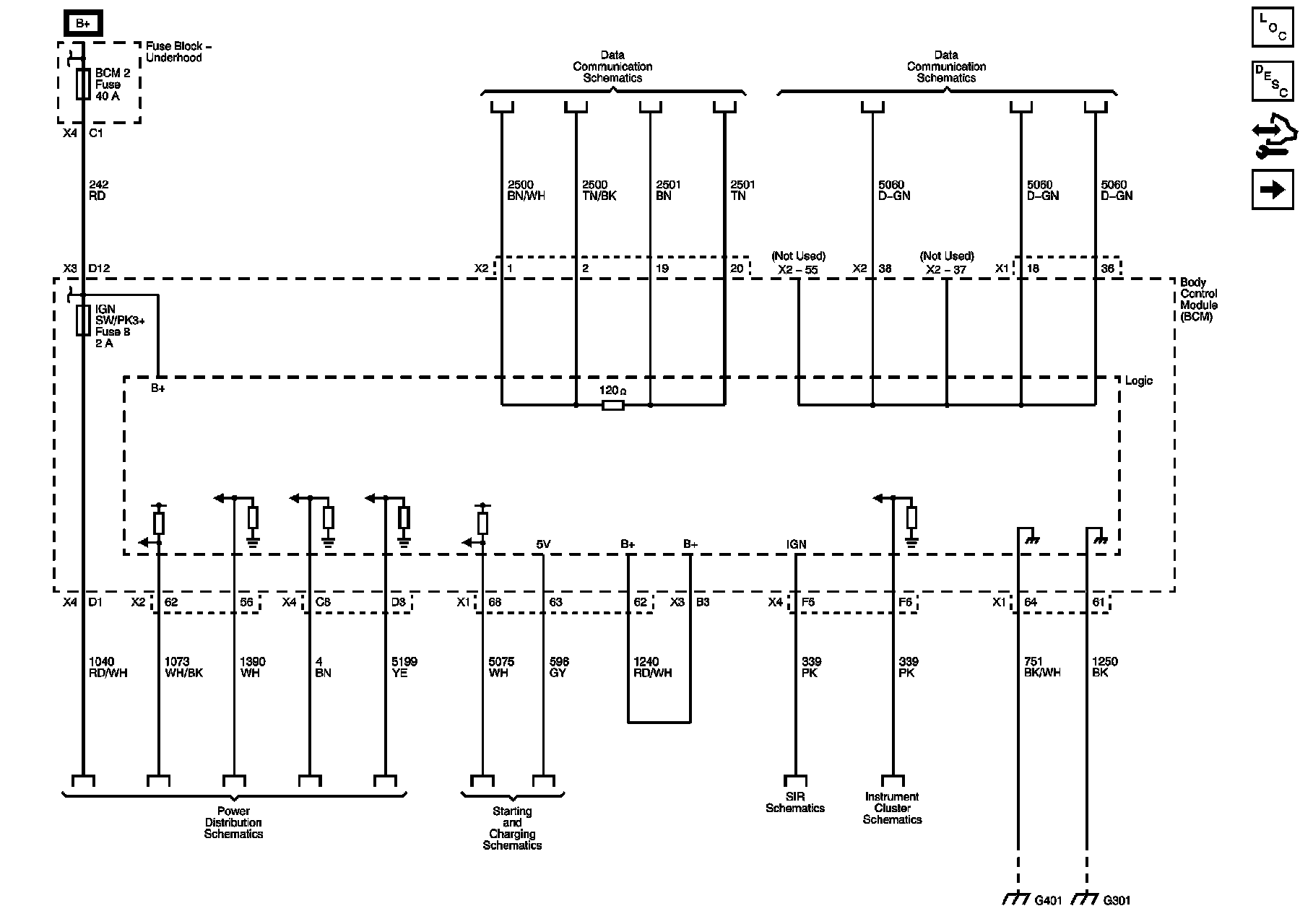

References (4 of 5)

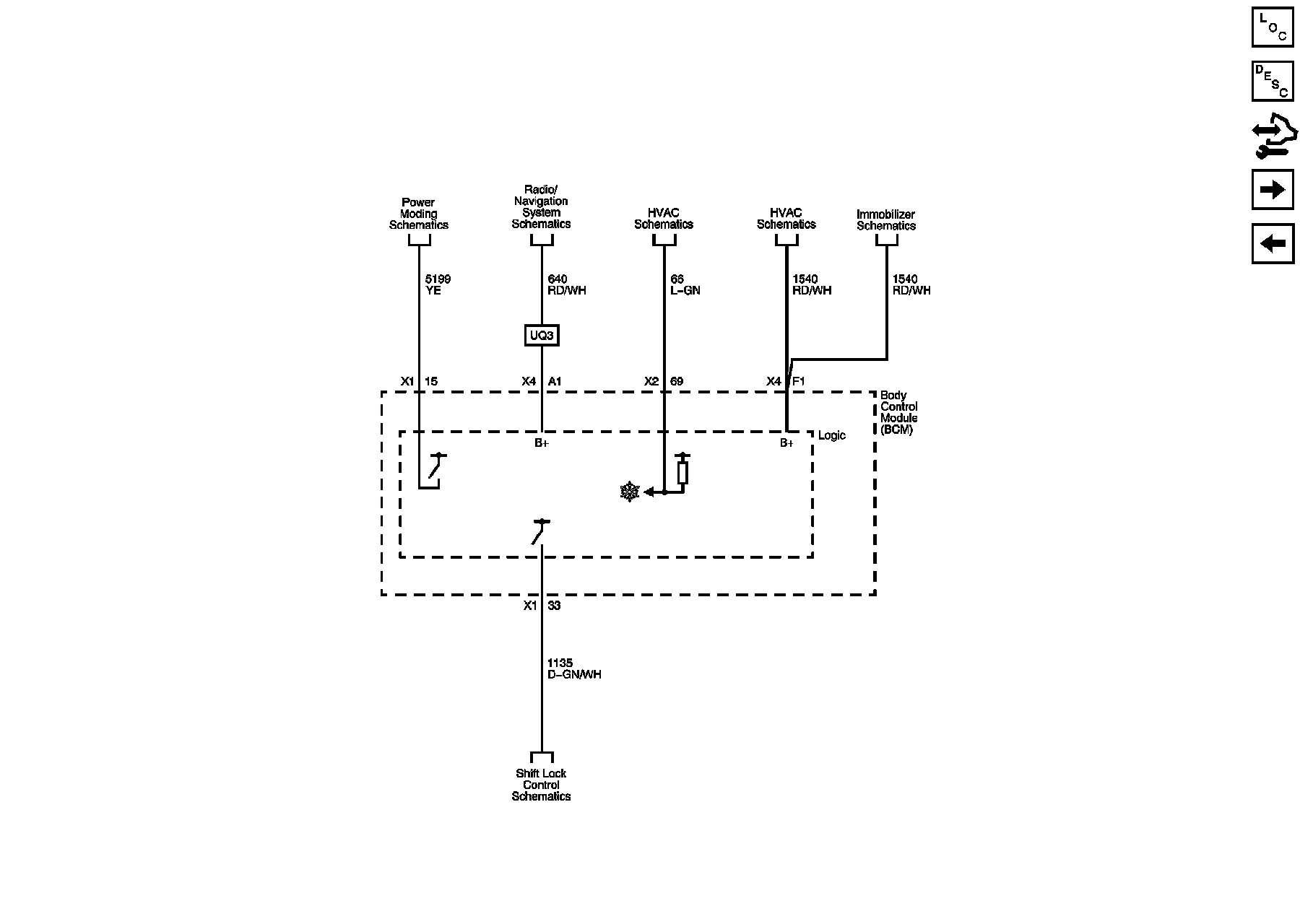

References (5 of 5)
