Radio/Navigation System Schematics




Radio/Navigation System Schematics

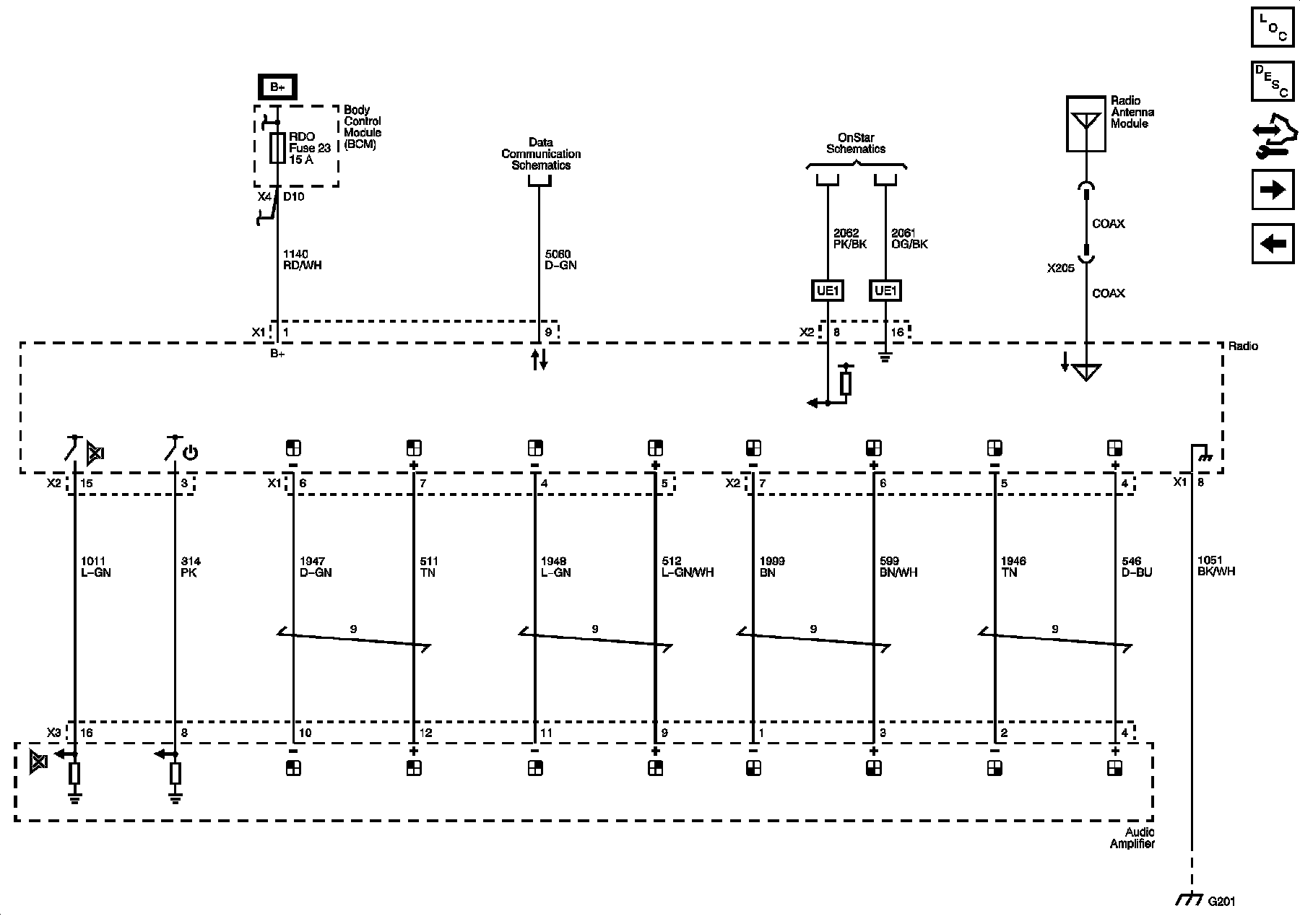

Radio (UQ4)

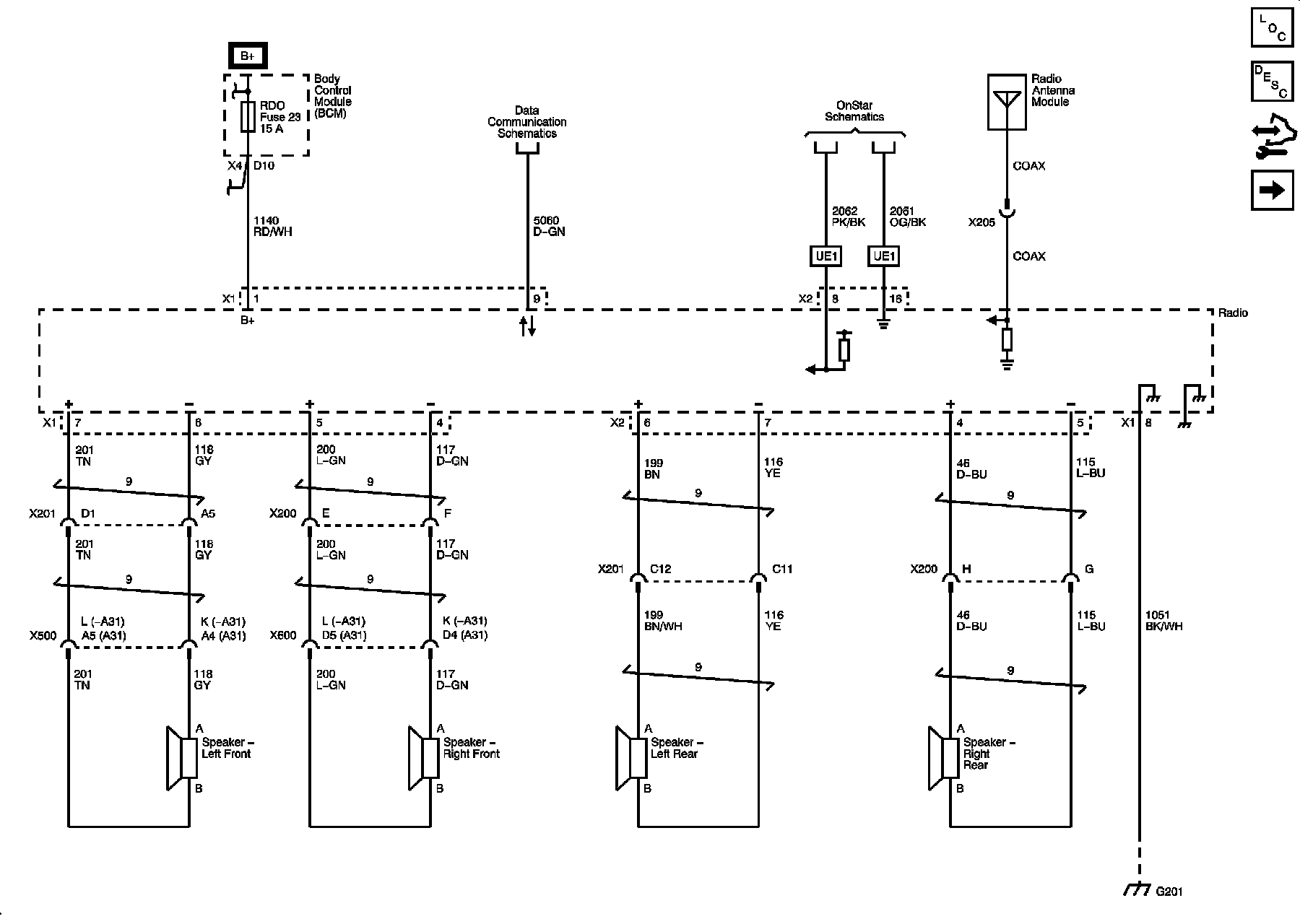

Power, Ground, Communication (UQ3)

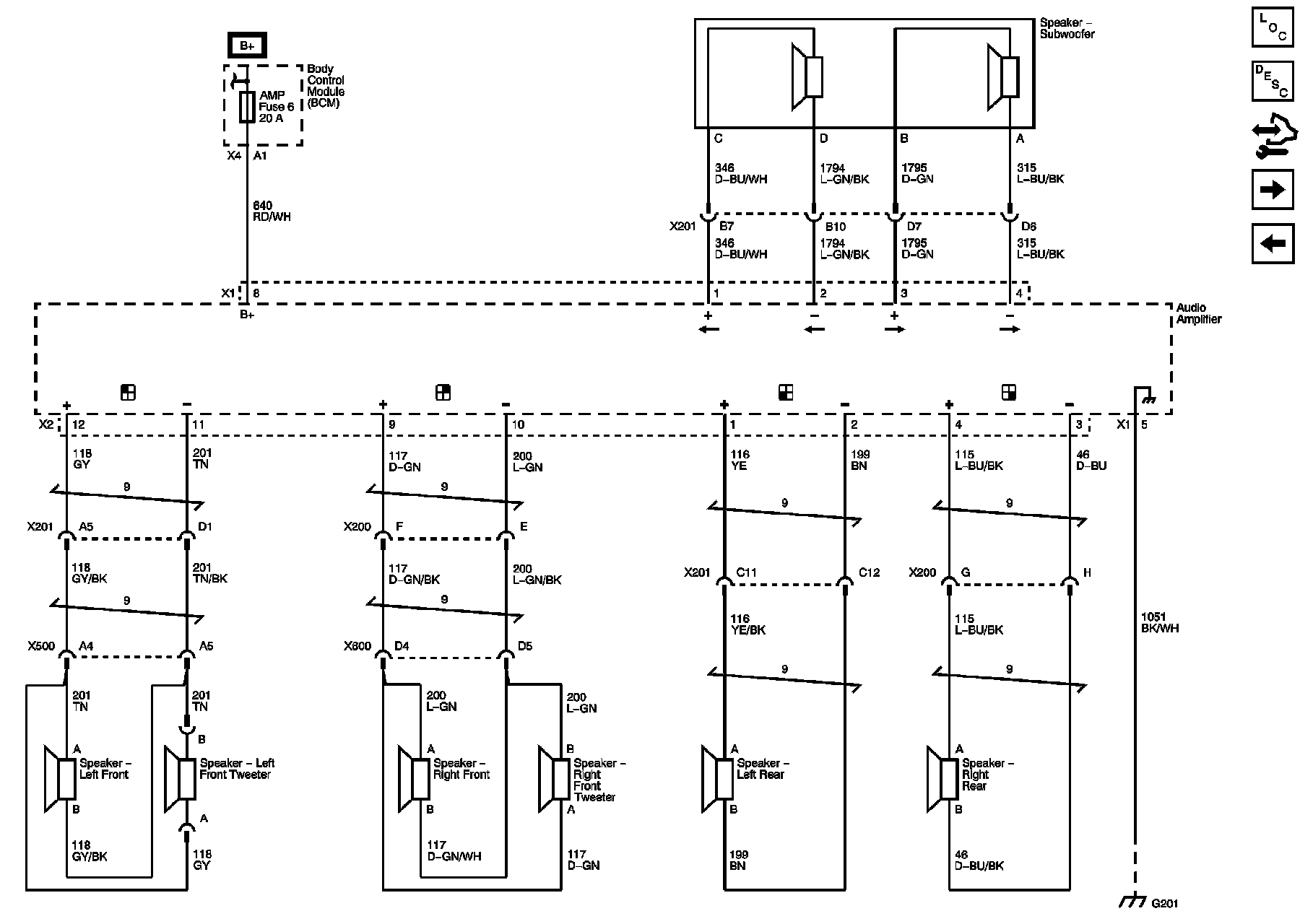

Amplifier, Speakers (UQ3)

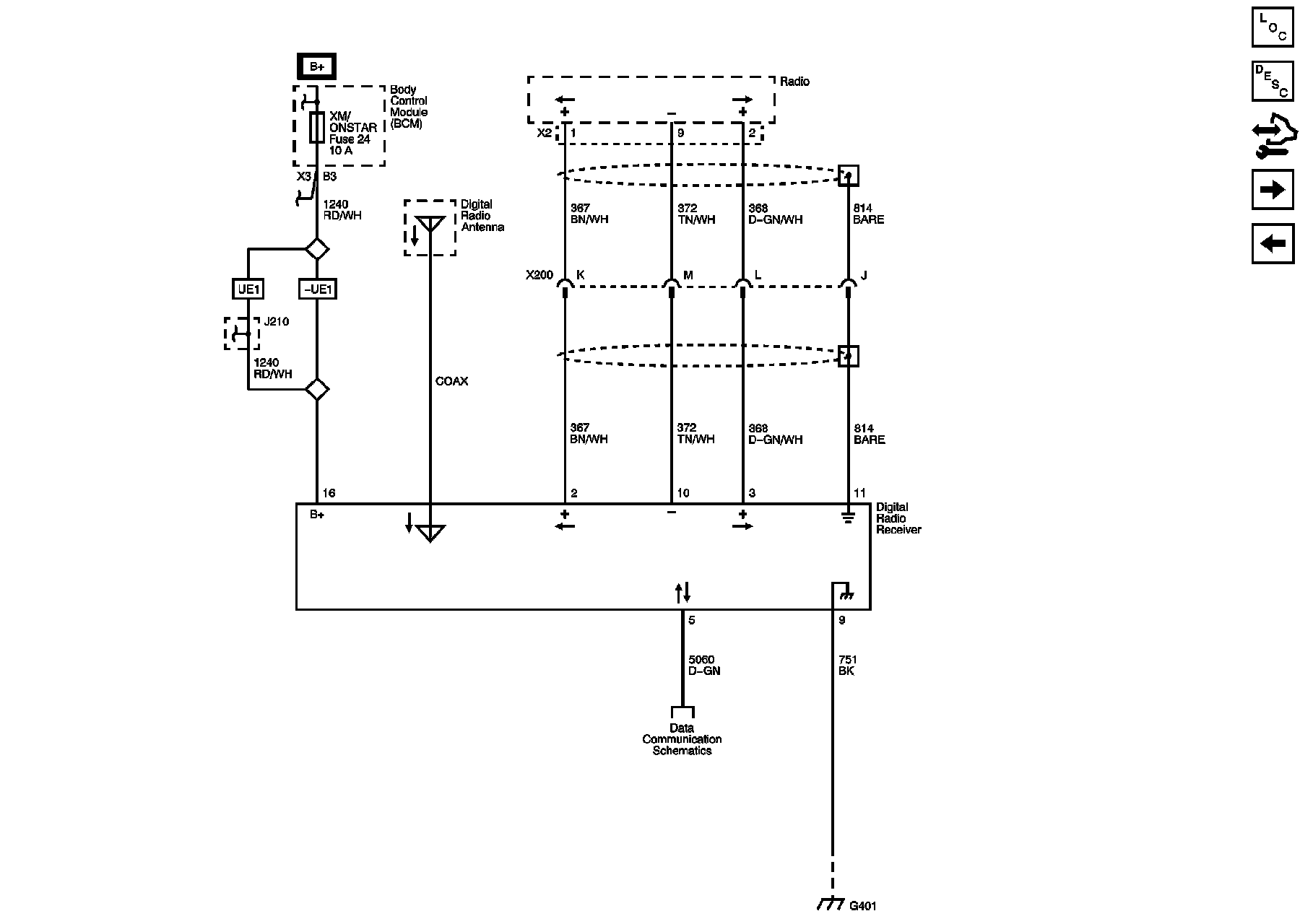

Digital Radio Receiver (U2K)





Redundant Radio Controls
