X800 - X899

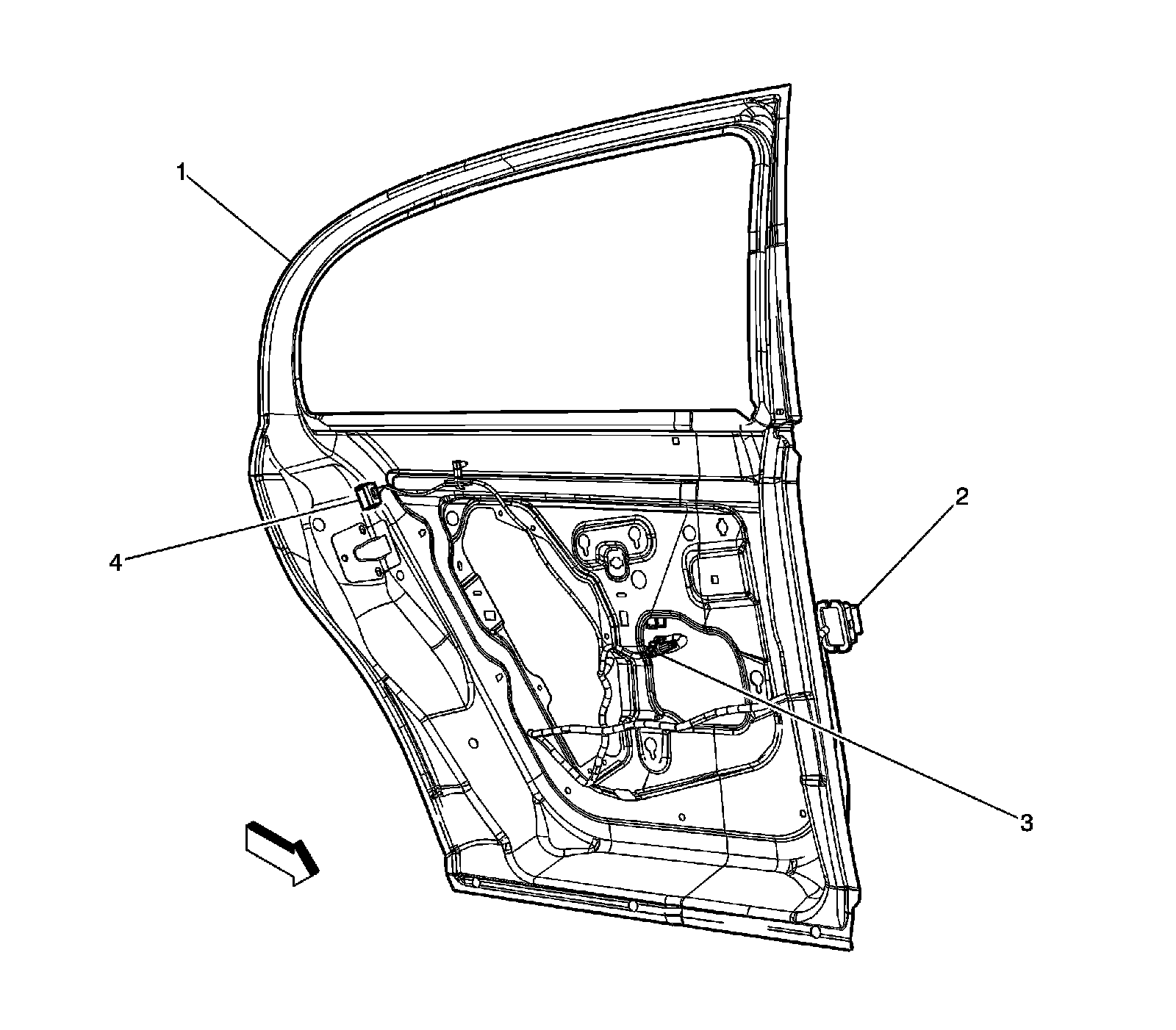

Harness Routing Views

Right Rear Door - Sedan




2 - X800

Body Harness - Passenger Compartment




4 - X800 (Sedan)
