Vehicle Speed Sensor
Vehicle Speed Sensor
Component Connector End Views

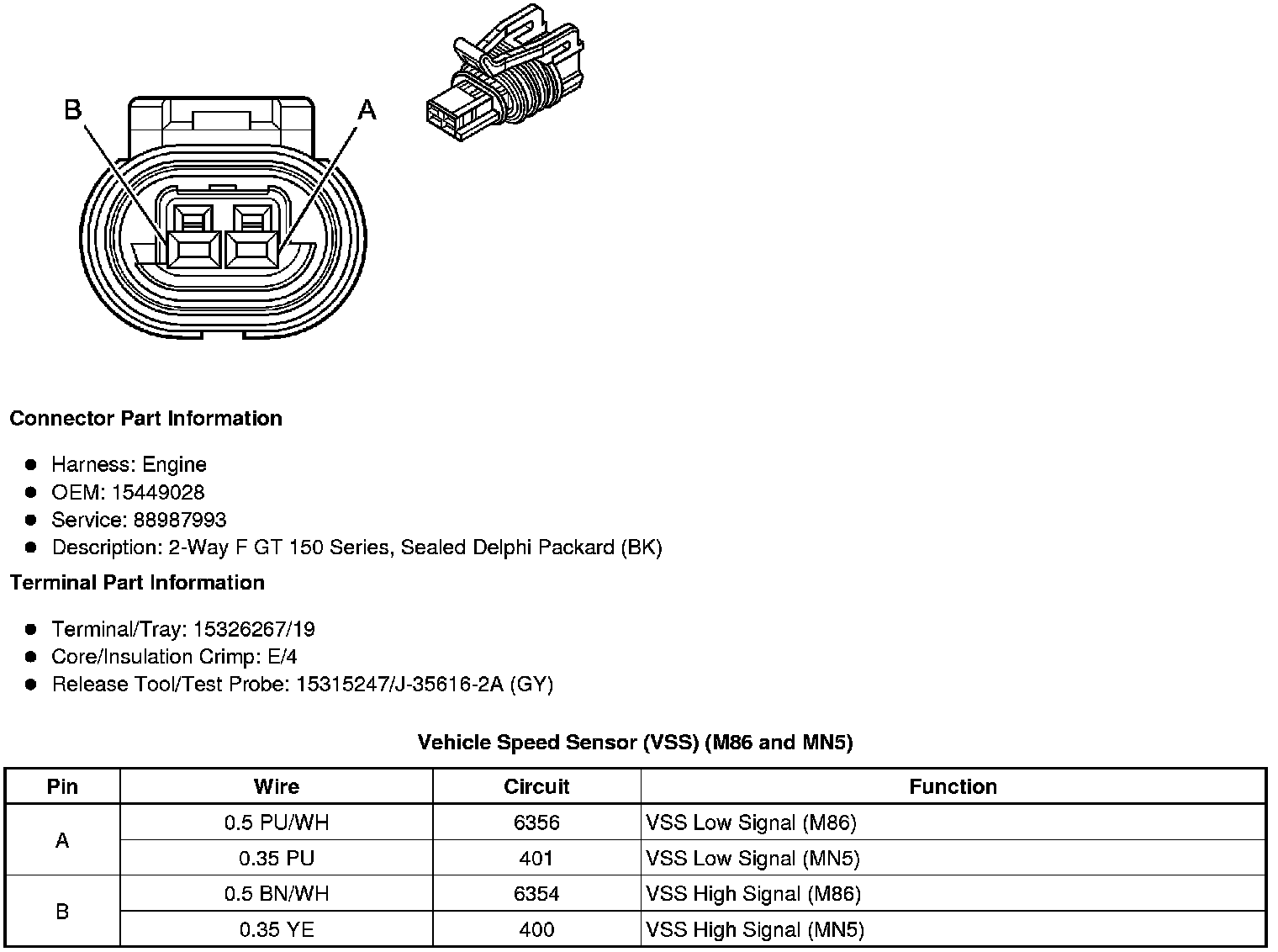

Vehicle Speed Sensor (VSS) (M86 and MN5)

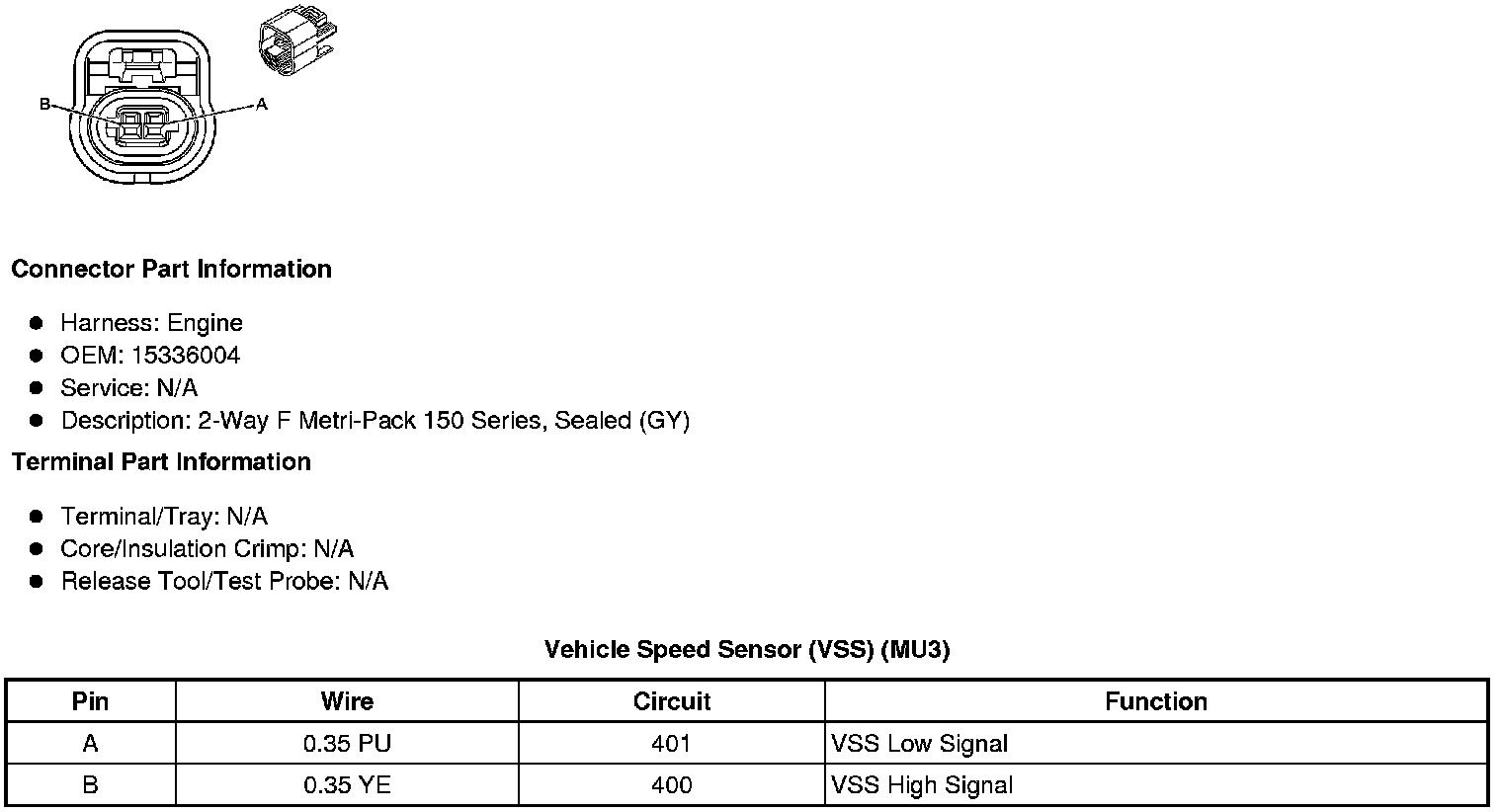

Vehicle Speed Sensor (VSS) (MU3)
