Turbocharger Boost Pressure Sensor
Turbocharger Boost Pressure Sensor

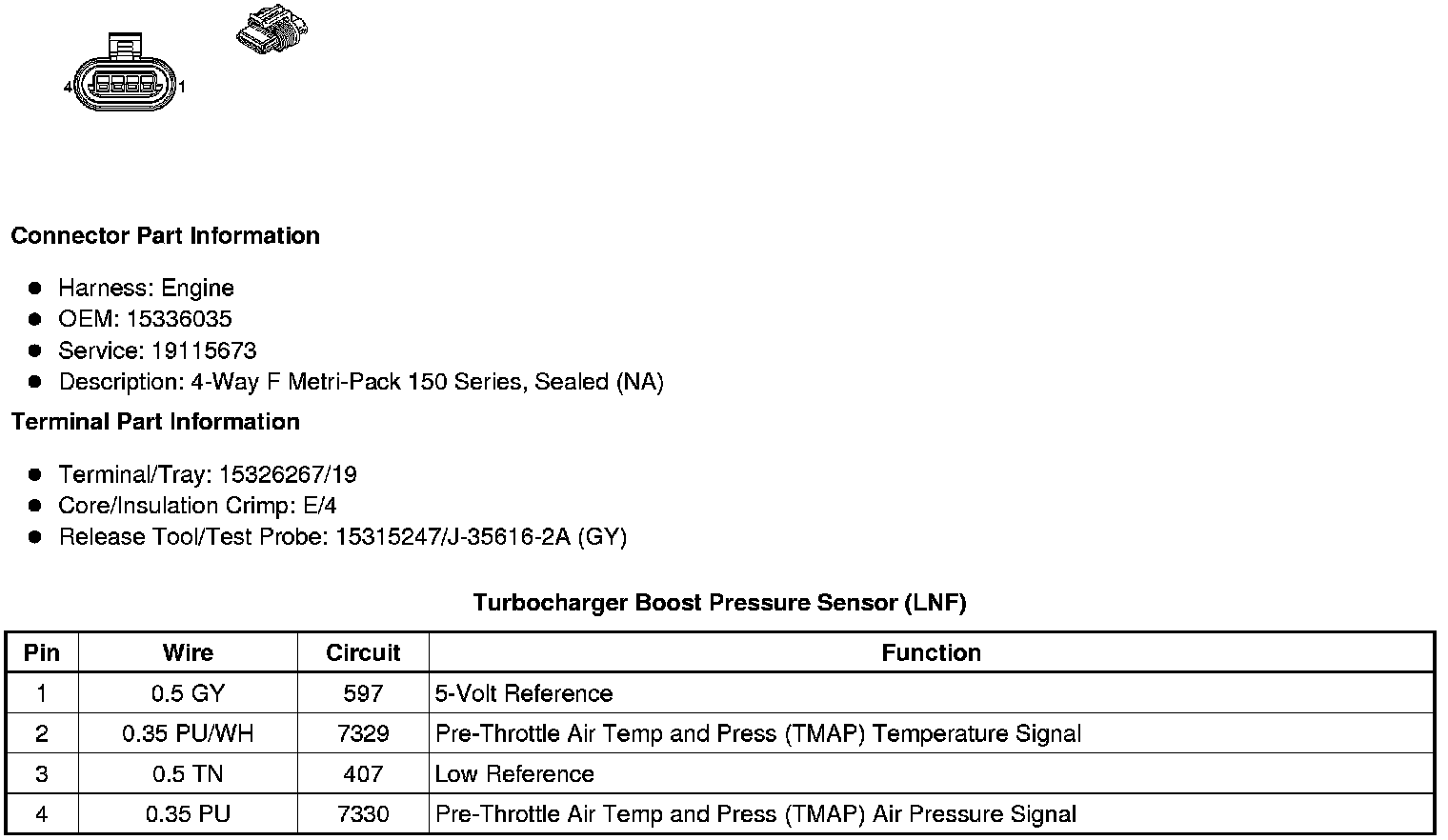

Component Connector End Views
Turbocharger Boost Pressure Sensor (LNF)
