Home >> Chevrolet >> 2010 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Throttle Position Sensor

Throttle Position Sensor




Component Connector End Views

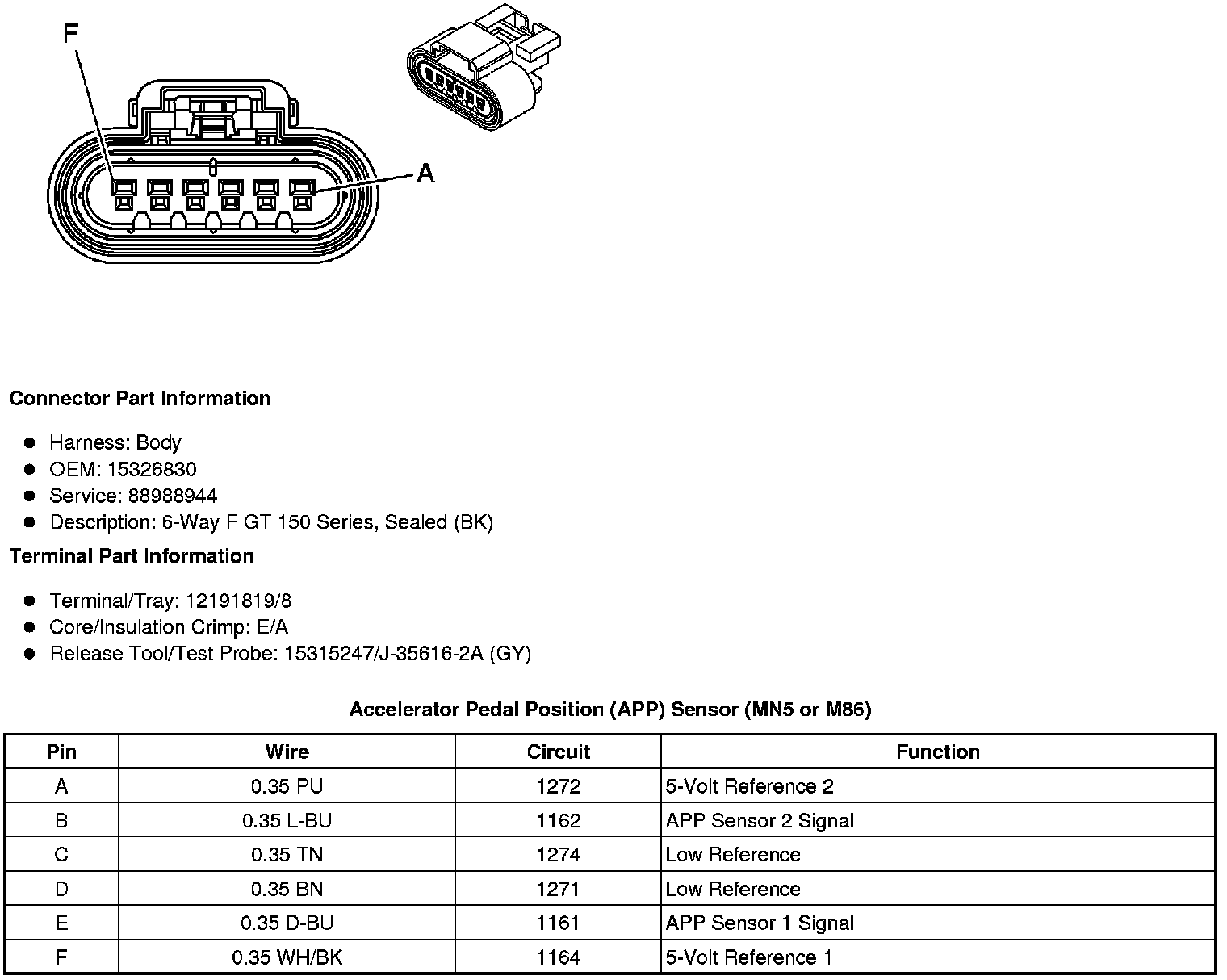

Accelerator Pedal Position (APP) Sensor (MN5 or M86)





Accelerator Pedal Position (APP) Sensor (MU3)
