Lateral Accelerometer




Component Connector End Views

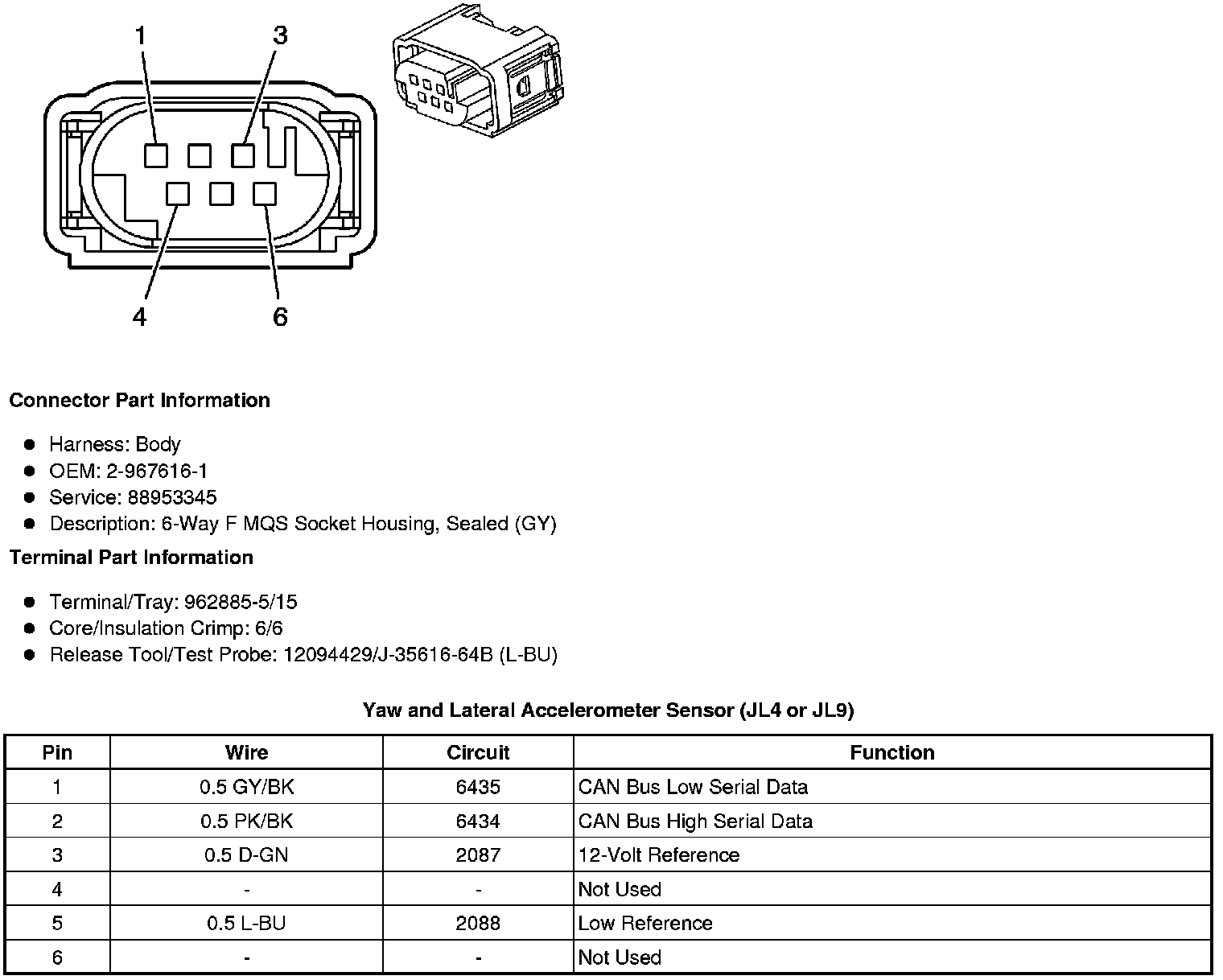

Yaw and Lateral Accelerometer Sensor (JL4 or JL9)
