Front Door Window Motor




Component Connector End Views

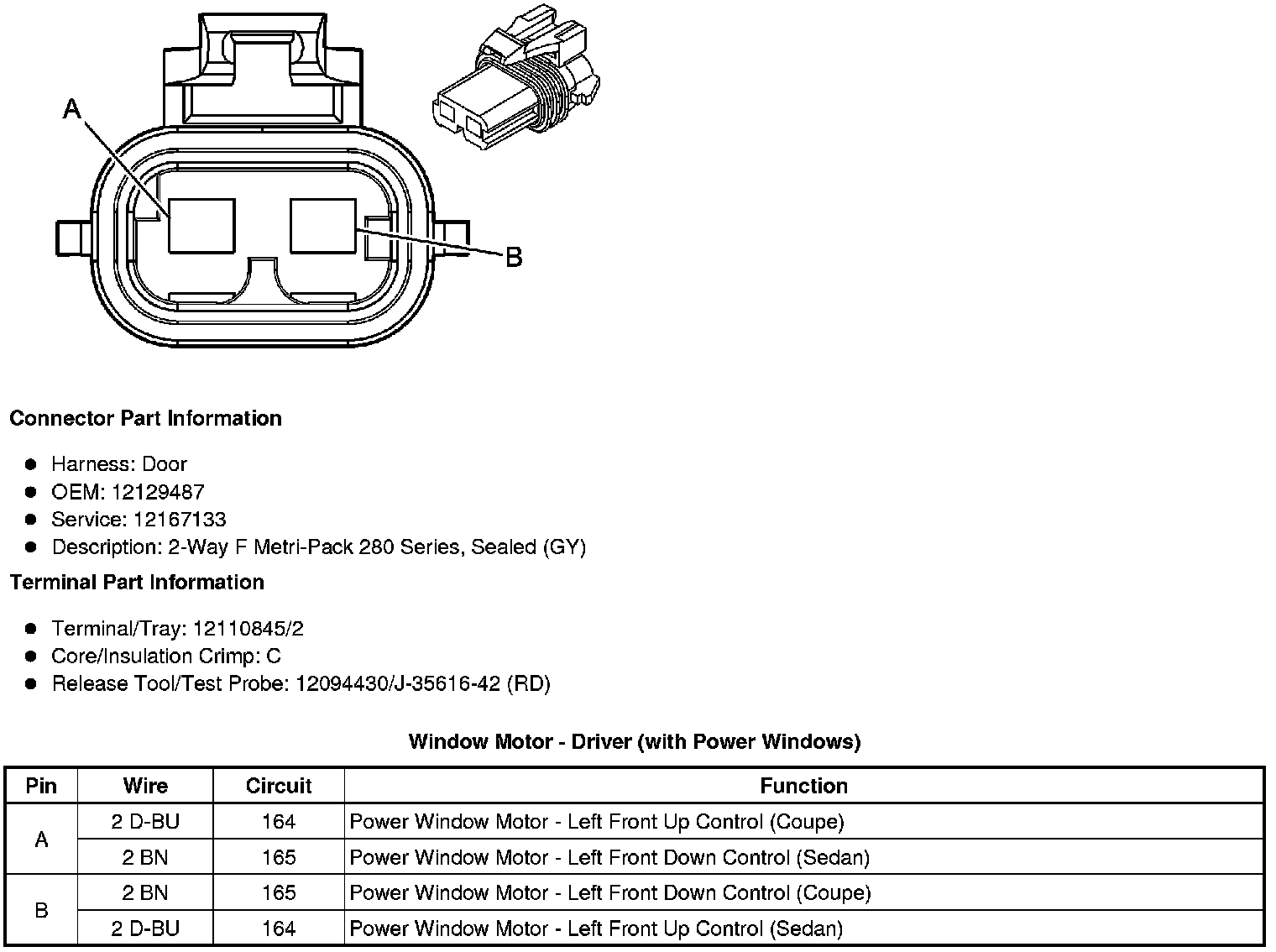

Window Motor - Driver (with Power Windows)





Window Motor - Front Passenger (with Power Windows)
