Control Module, A/T
Control Module, A/T

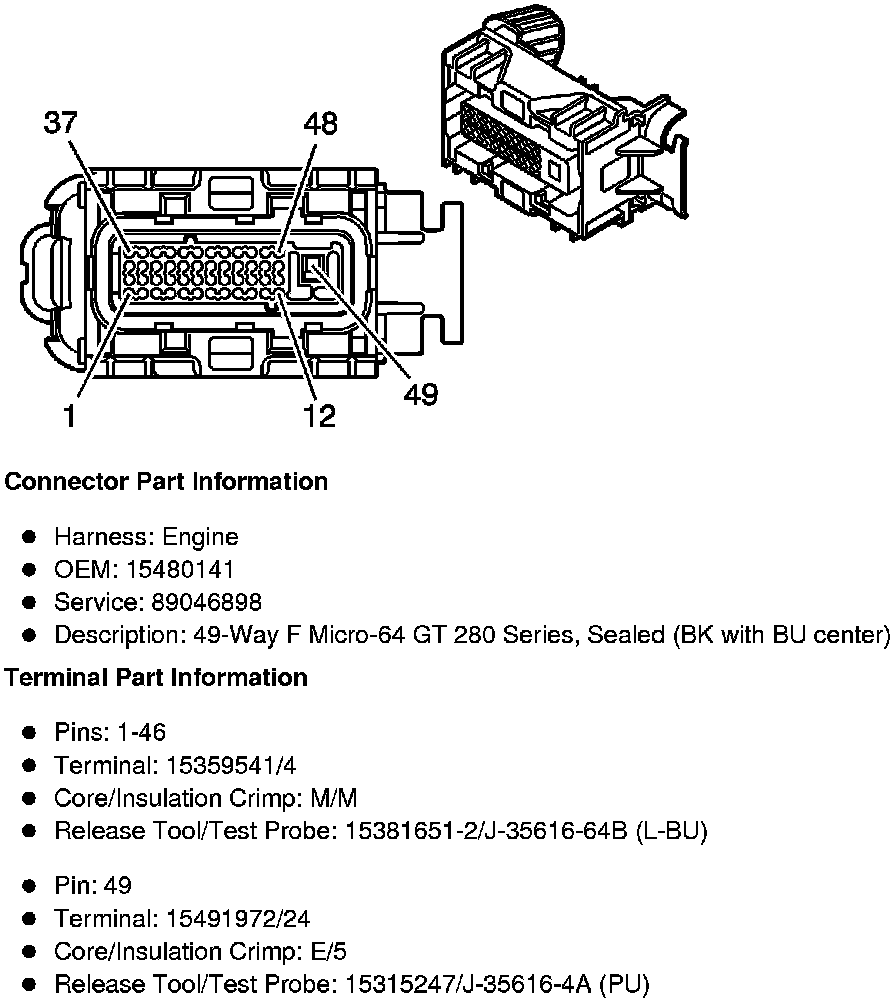

Component Connector End Views

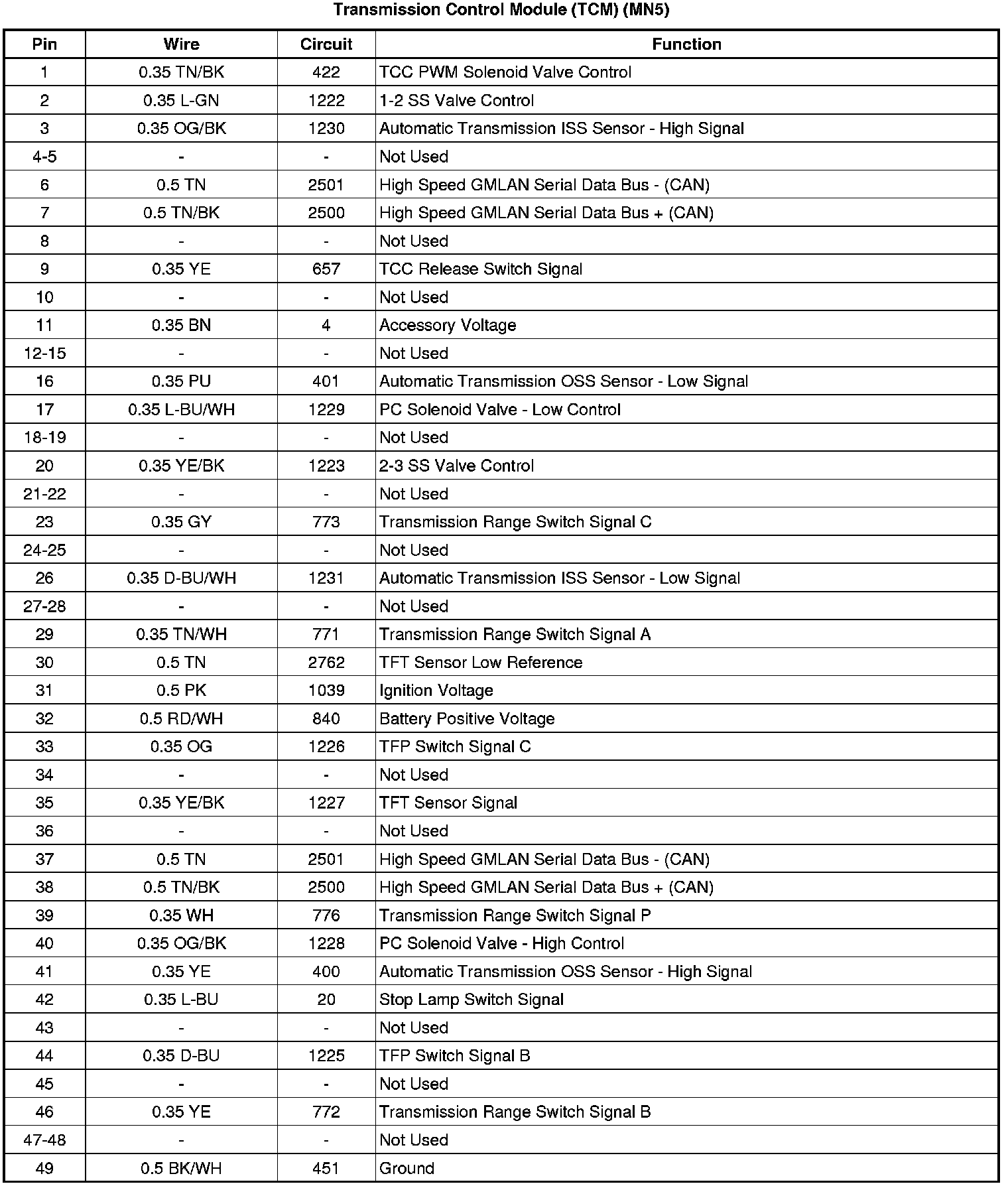

Transmission Control Module (TCM) (MN5)
