Air Bag Control Module




Component Connector End Views

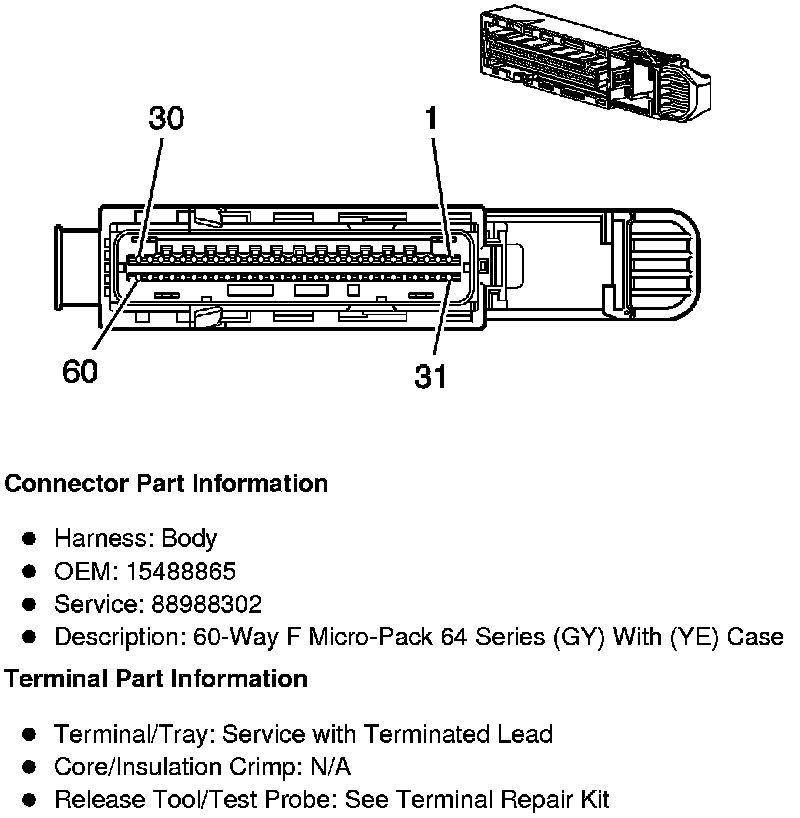

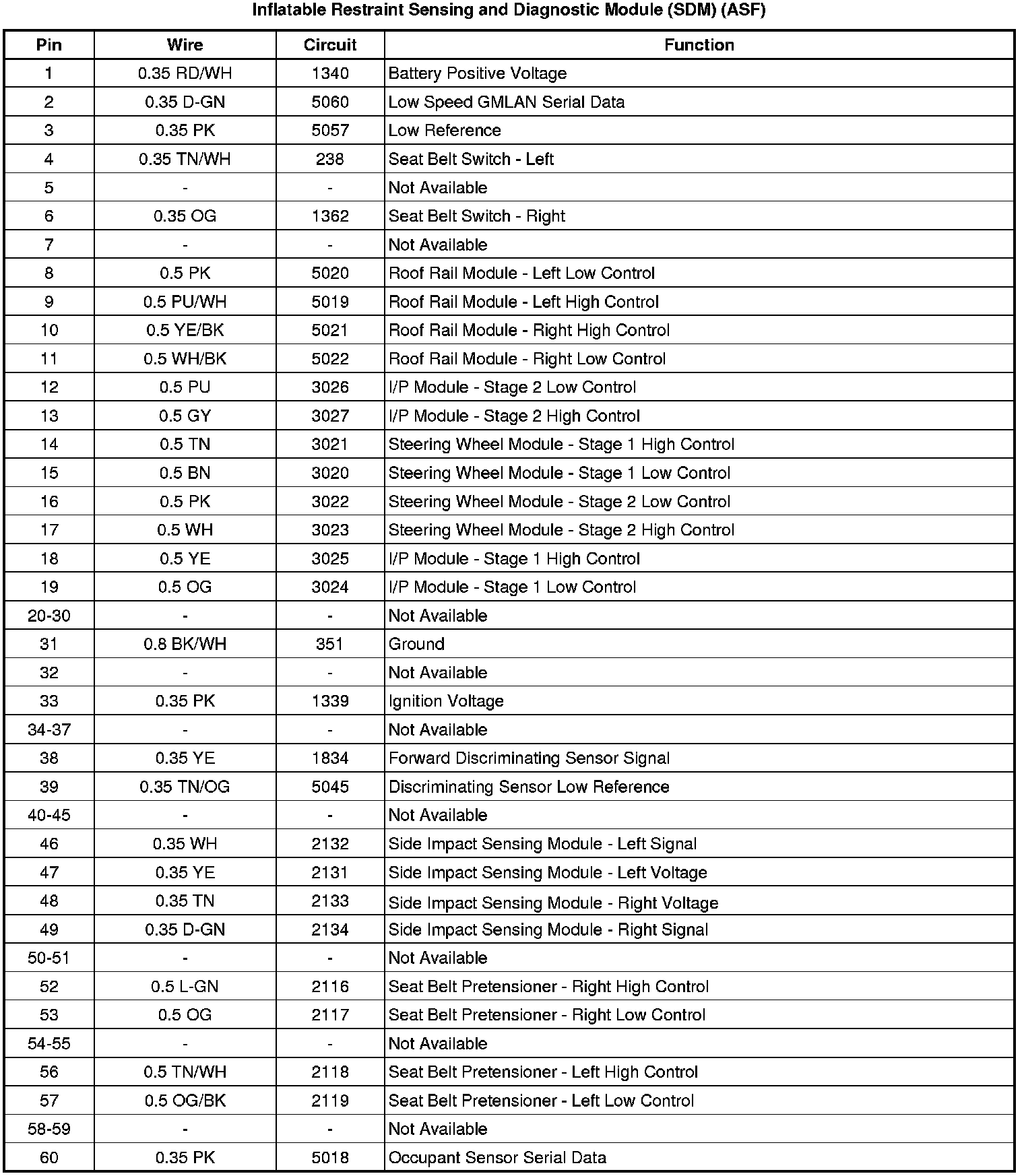

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)

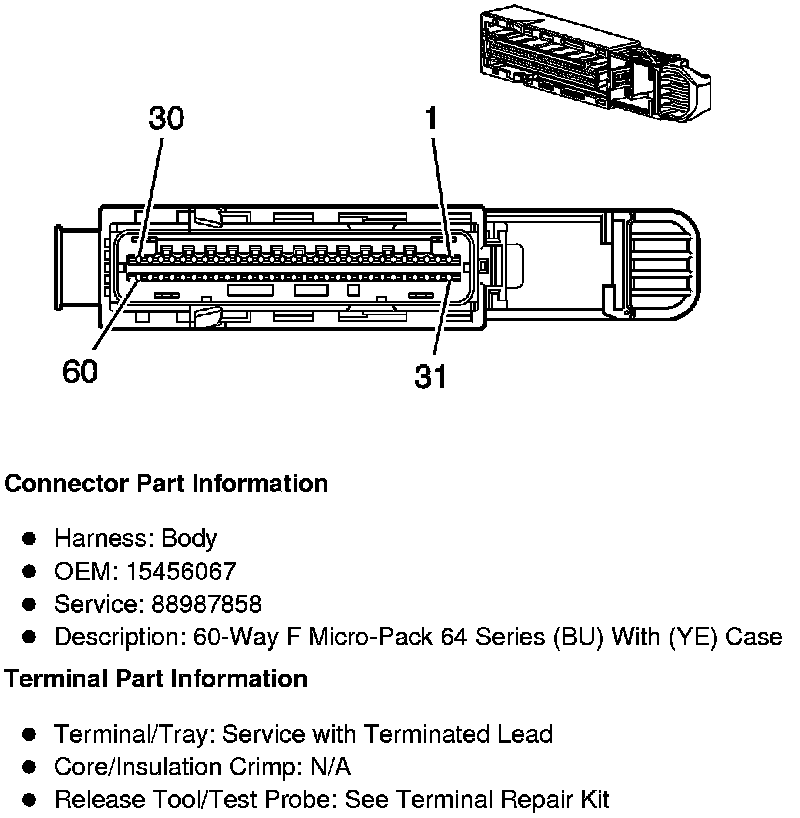

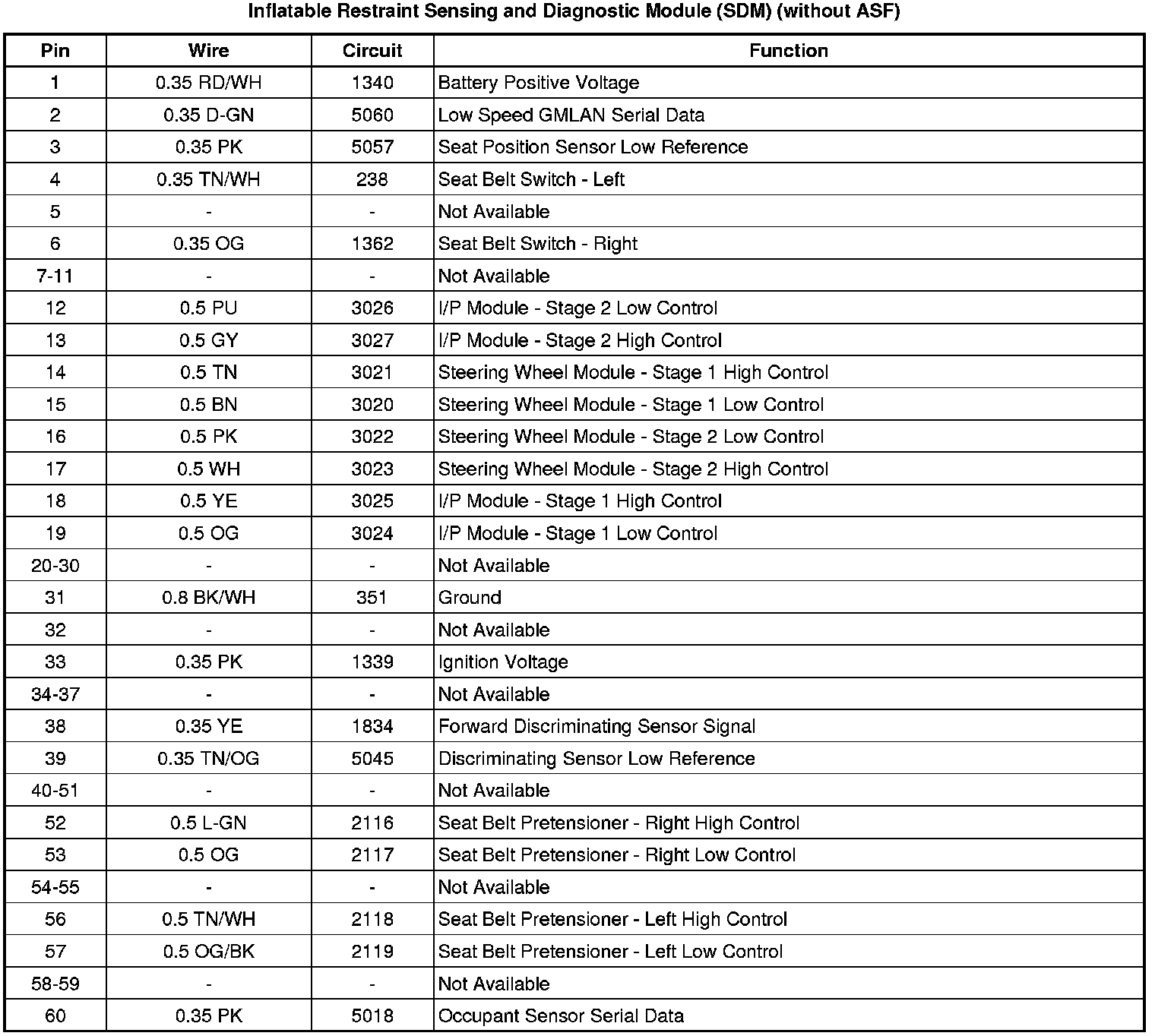

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without ASF)
