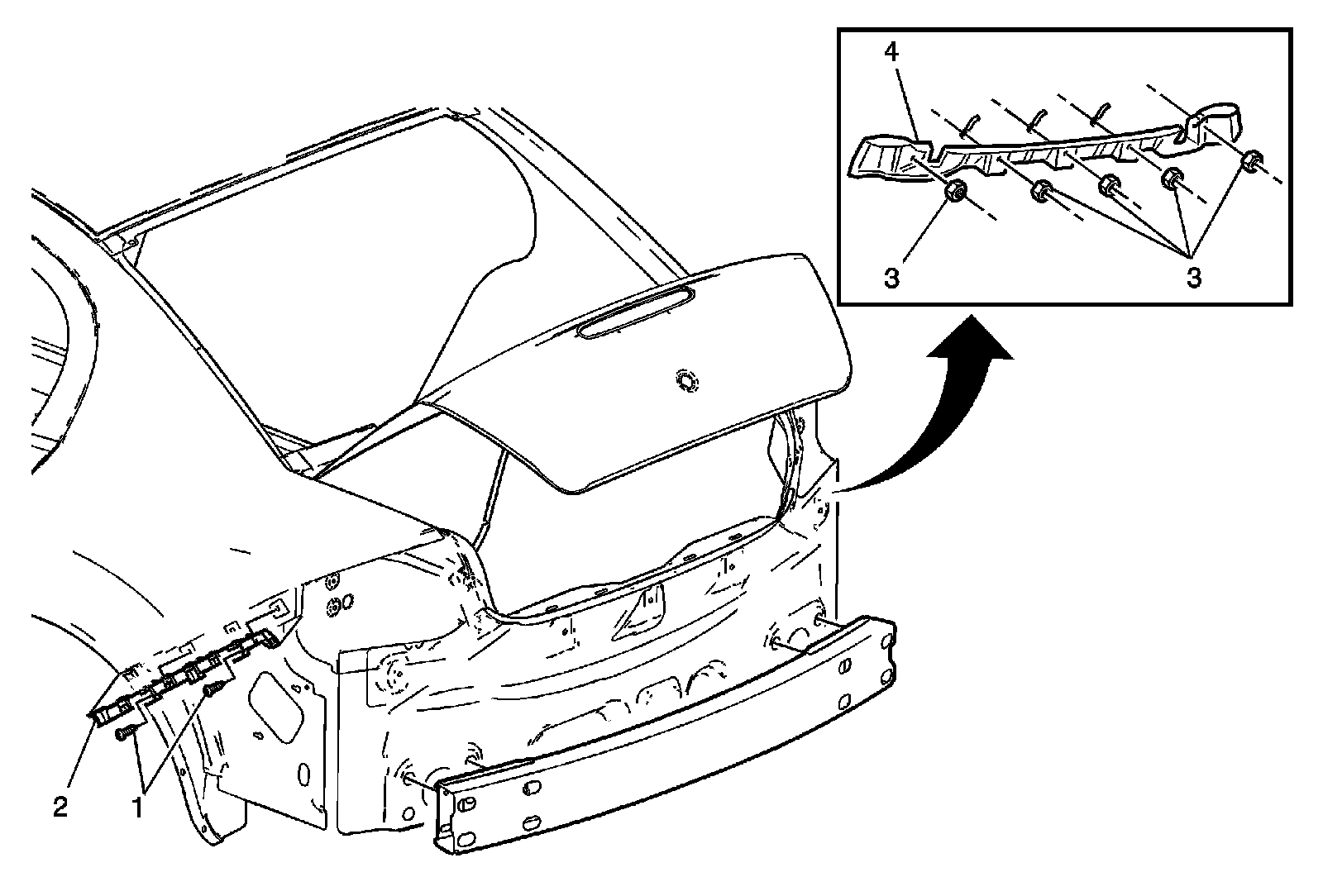

Rear Bumper Fascia Bracket Replacement (Sedan)


Rear Bumper Fascia Bracket Replacement (Sedan)

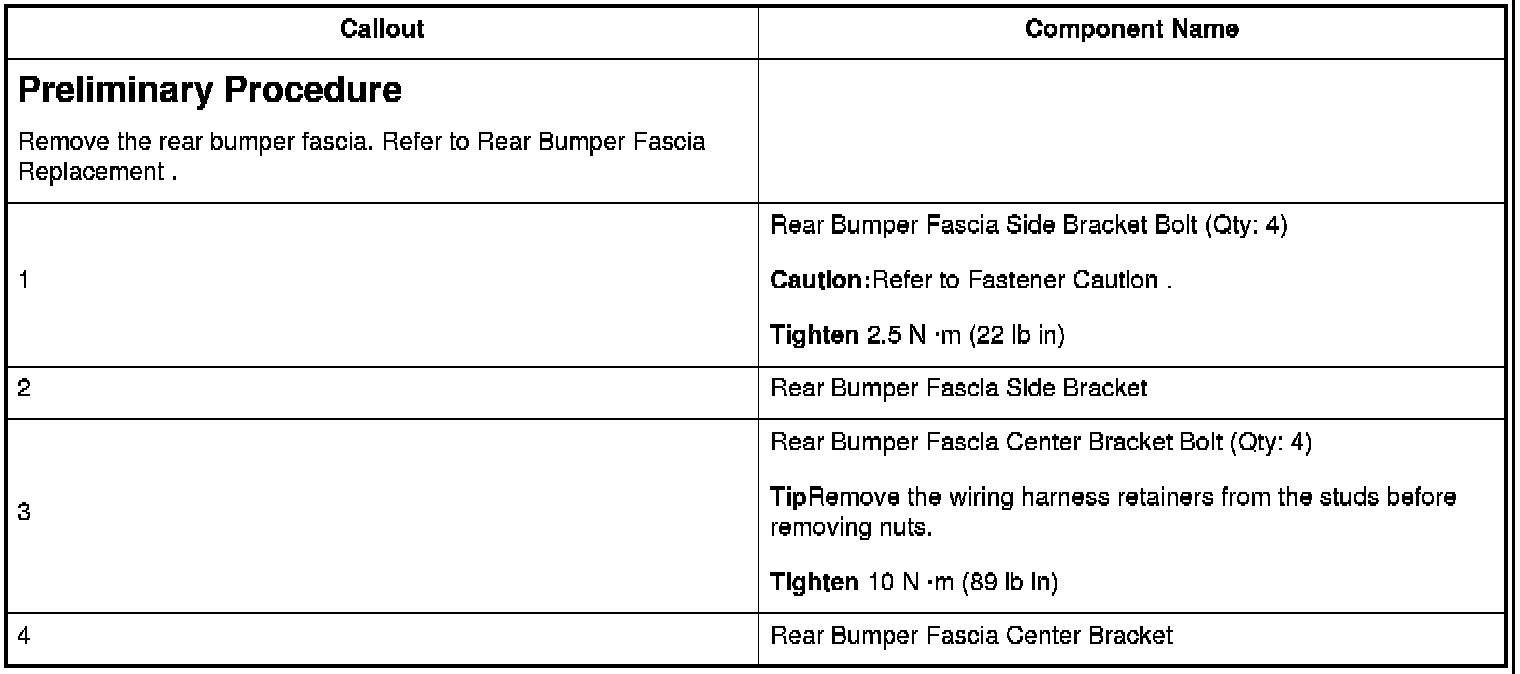

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
TipRemove the wiring harness retainers from the studs before removing nuts.
Tighten
