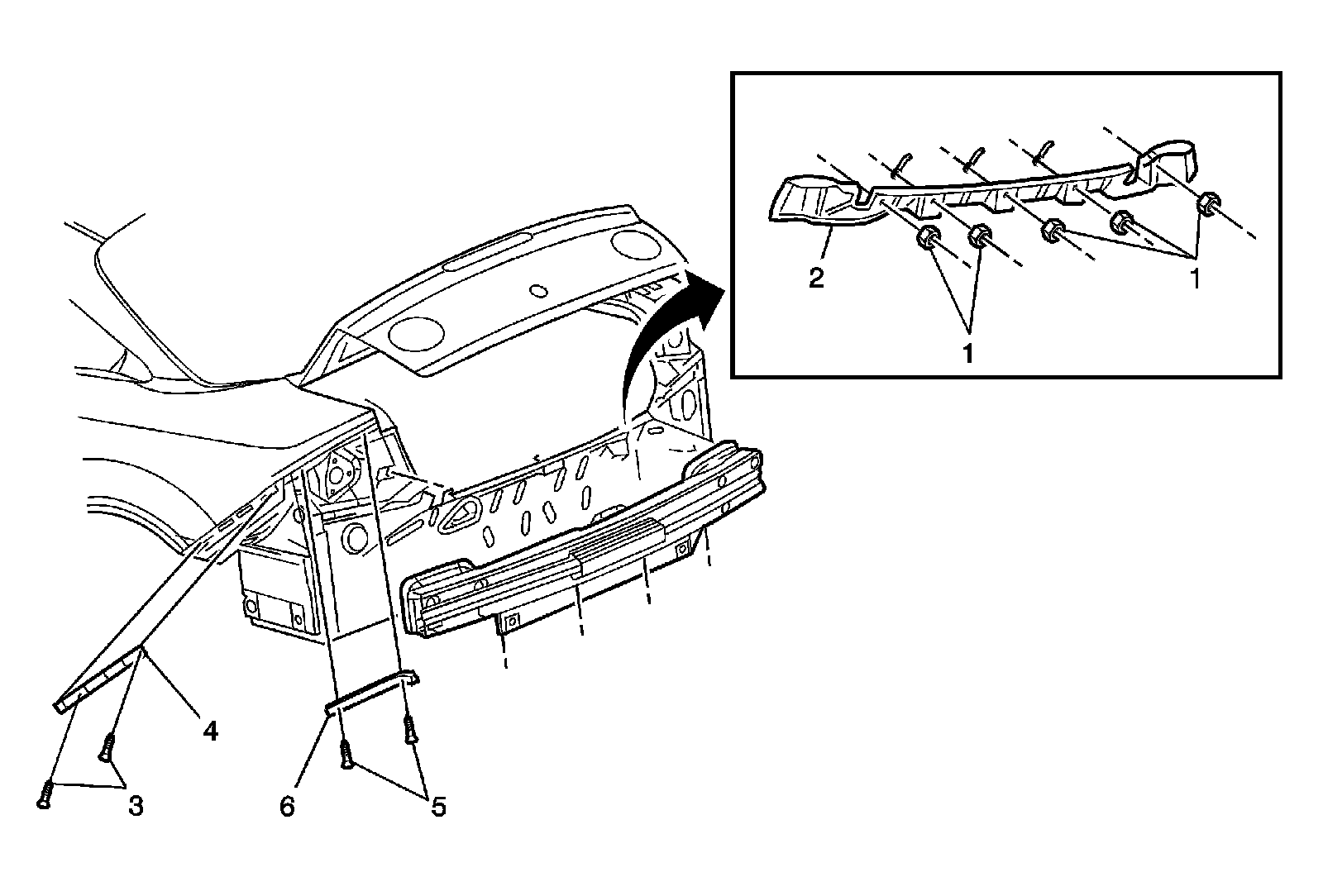

Rear Bumper Fascia Bracket Replacement (Coupe)

Rear Bumper Fascia Bracket Replacement (Coupe)

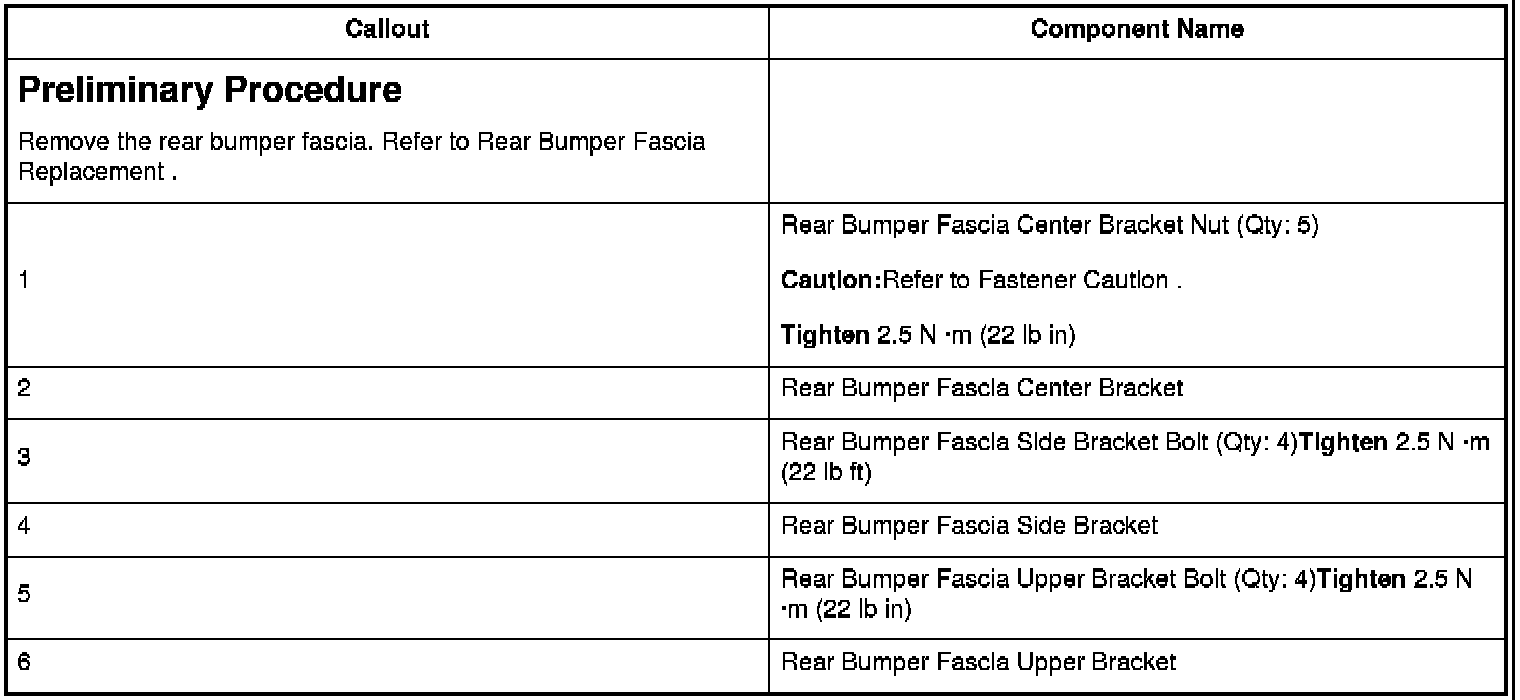

Preliminary Procedure

Caution:Refer to Fastener Caution.
TightenTightenTighten
