Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Diagrams

Wiper Motor: Diagrams




Component Connector End Views

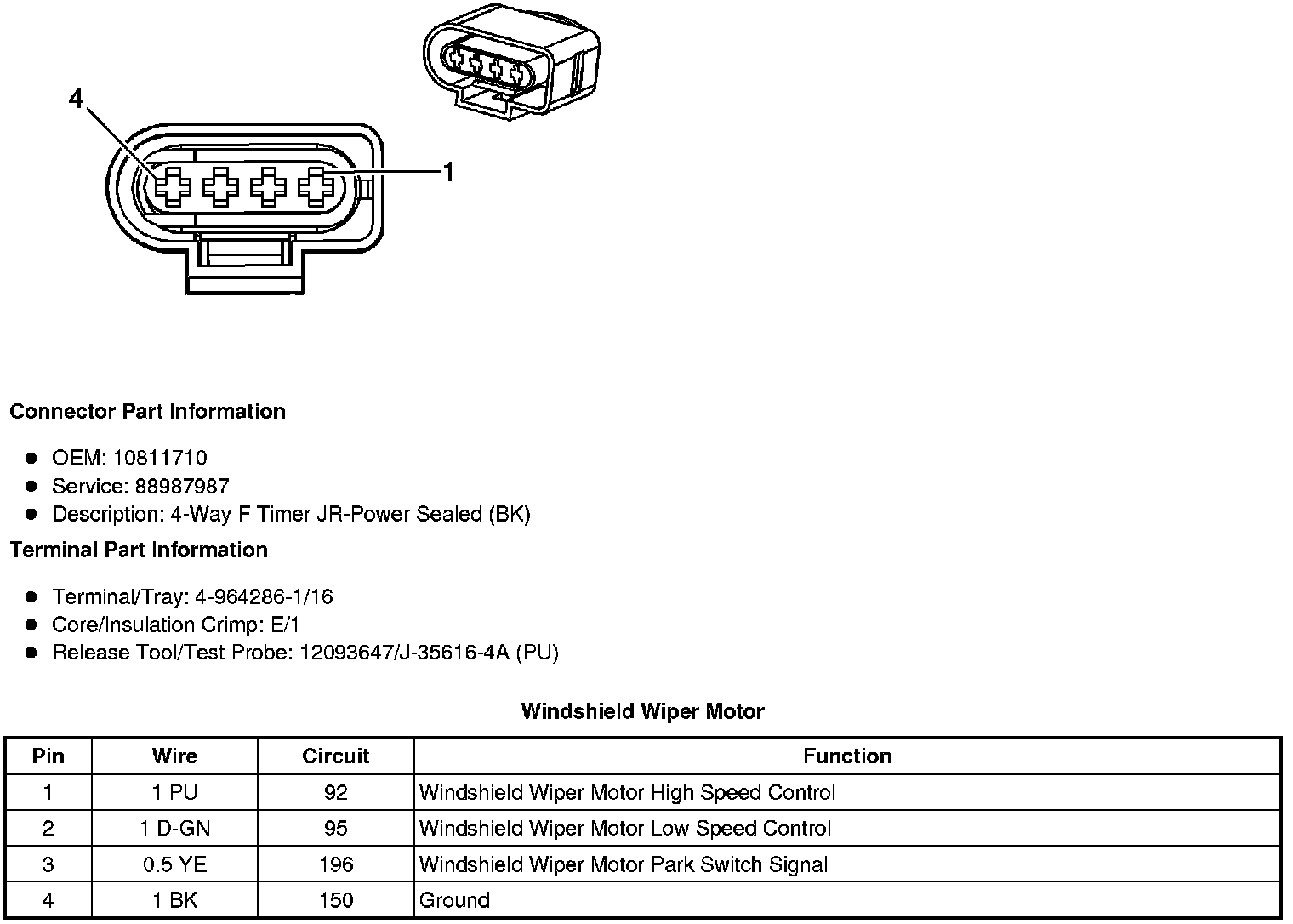

Windshield Wiper Motor
