Transmission Front Mount Replacement

Transmission Front Mount Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

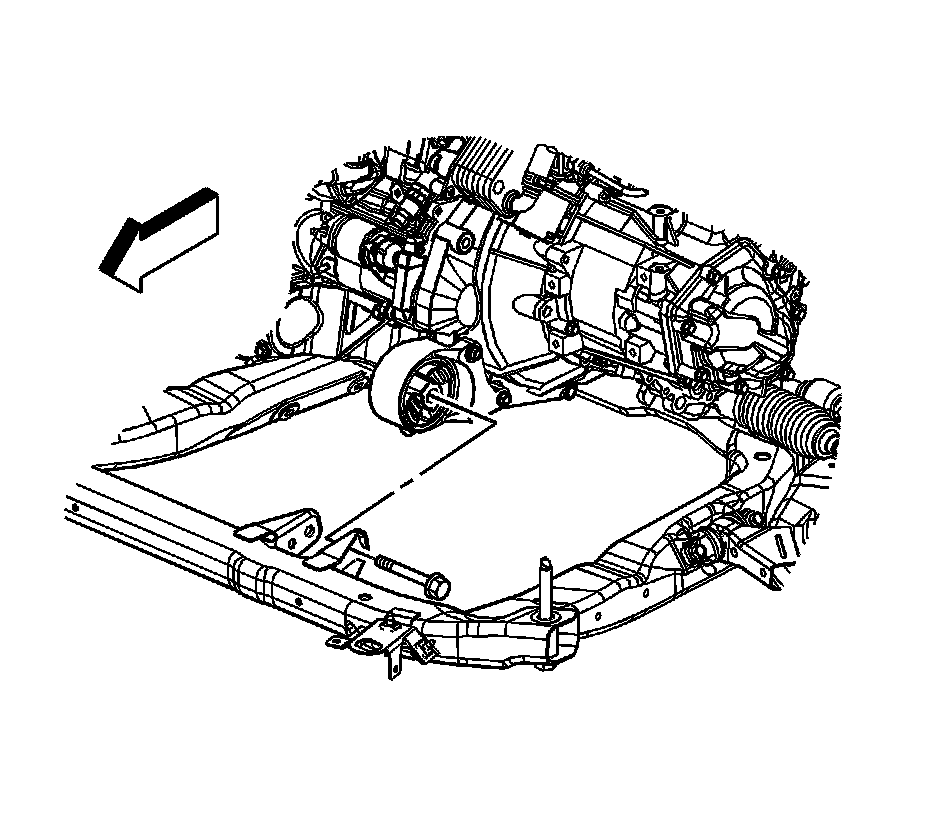

2. Remove the front transaxle mount through bolt.

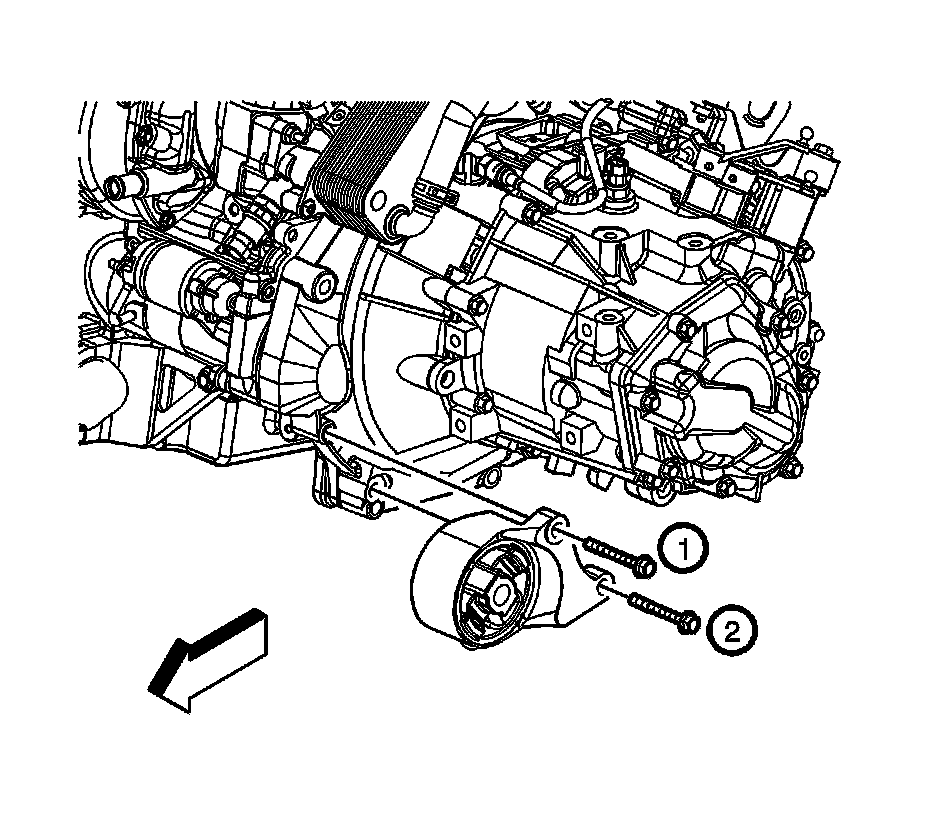

3. Remove the front transaxle mount to transaxle bolts.
4. Remove the front transaxle mount from the vehicle.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the front transaxle mount to the transaxle bolts, and tighten in sequence.

Tighten the bolts to 90 Nm (66 lb ft).




2. Hand start the front transaxle mount through bolt.

Note: The front and rear transaxle mounts must be allowed to settle with the through bolts loosened.

3. Loosen the rear transaxle mount through bolt.
4. Tighten the transaxle mount through bolts in the following order:

1. Tighten the rear bolt to 100 Nm (74 lb ft).
2. Tighten the front bolt to 100 Nm (74 lb ft).

5. Lower the vehicle.
