MU3 - Manual Transmission

Axle Seals Replacement

Tools Required
* J 23907 Slide Hammer with Bearing Adapter
* J 44809 Output Shaft Seal Installer

Removal Procedure

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the front wheel and tire assemblies. Refer to Tire and Wheel Removal and Installation (Service and Repair).
3. Remove the wheel driveshaft or intermediate drive shaft. Refer to Wheel Drive Shaft Replacement (Wheel Drive Shaft Replacement) or Front Wheel Drive Intermediate Shaft Replacement (Front Wheel Drive Intermediate Shaft Replacement).




4. Use the J 23907 or J 44809 in order to remove the seal.
5. Inspect the seal bore for nicks or for burrs. Clean the bore with a fine grade sandpaper, if necessary.

Installation Procedure

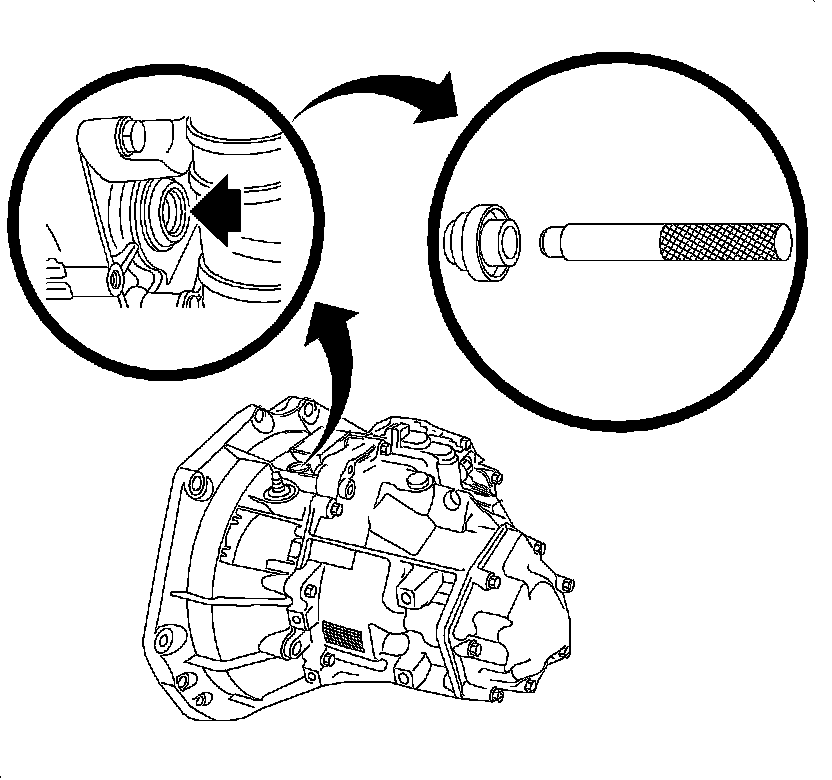

1. Use the J 23907 or J 44809 to install a new seal. Ensure the seal is seated flush to the outer bore area.
2. Install the wheel driveshaft or intermediate drive shaft. Refer to Wheel Drive Shaft Replacement (Wheel Drive Shaft Replacement) or Front Wheel Drive Intermediate Shaft Replacement (Front Wheel Drive Intermediate Shaft Replacement).
3. Install the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation (Service and Repair).
4. Lower the vehicle.
