Control Valve Body Assembly Removal




Control Valve Body Assembly Removal

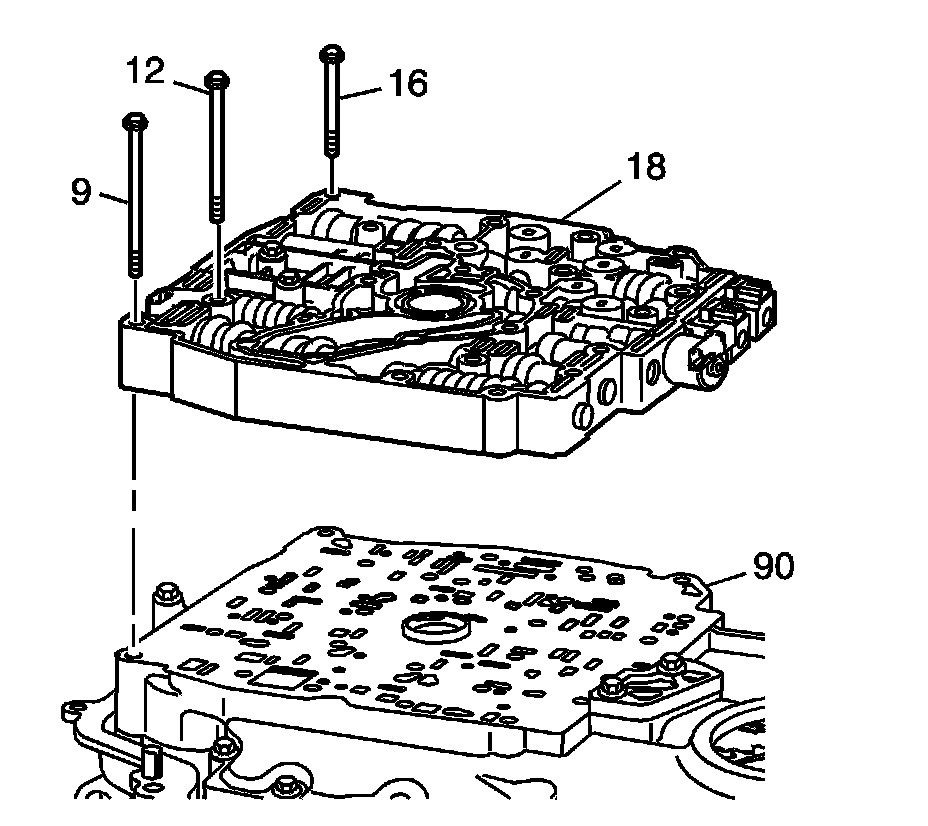

1. Remove the remaining twelve bolts (9, 12 and 16) from the control valve body assembly (18).
2. Remove the control valve body assembly (18).
