Connector Views




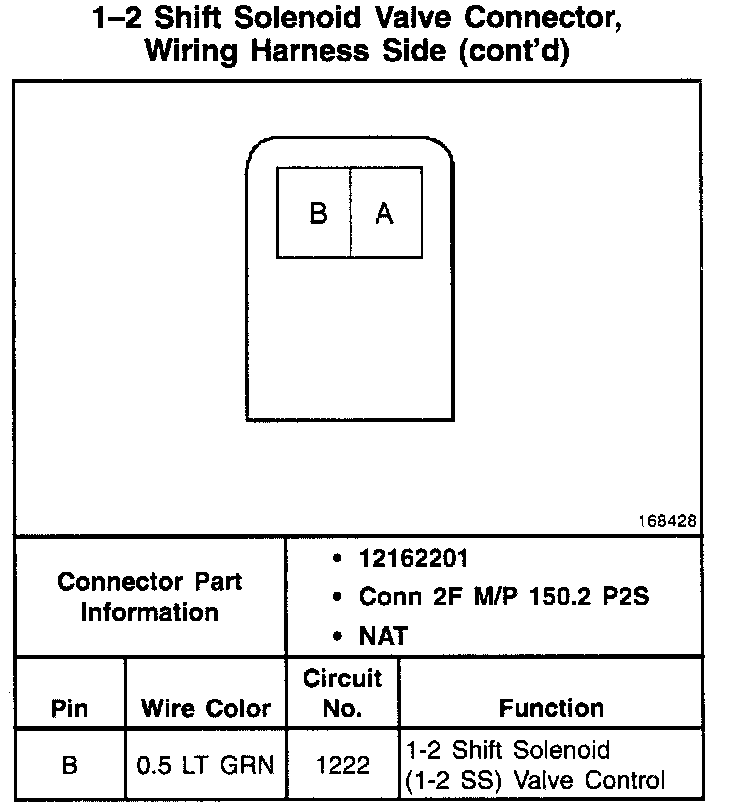

Component Connector End Views

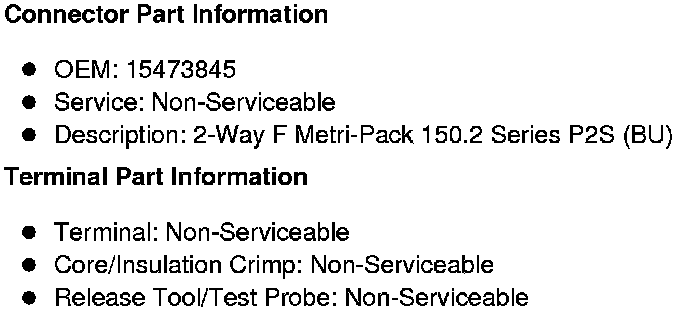

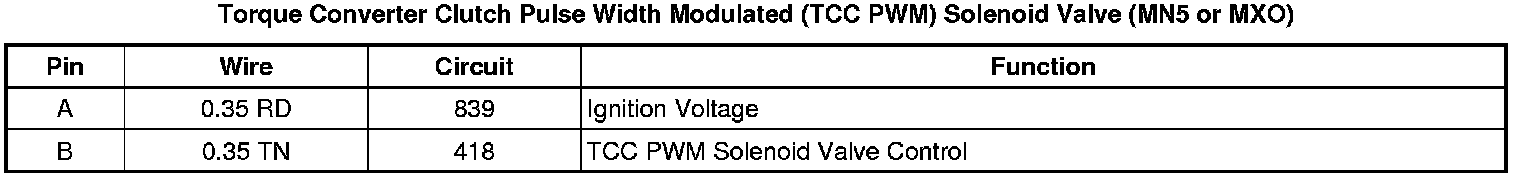

Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve (MN5 or MXO)
