X305

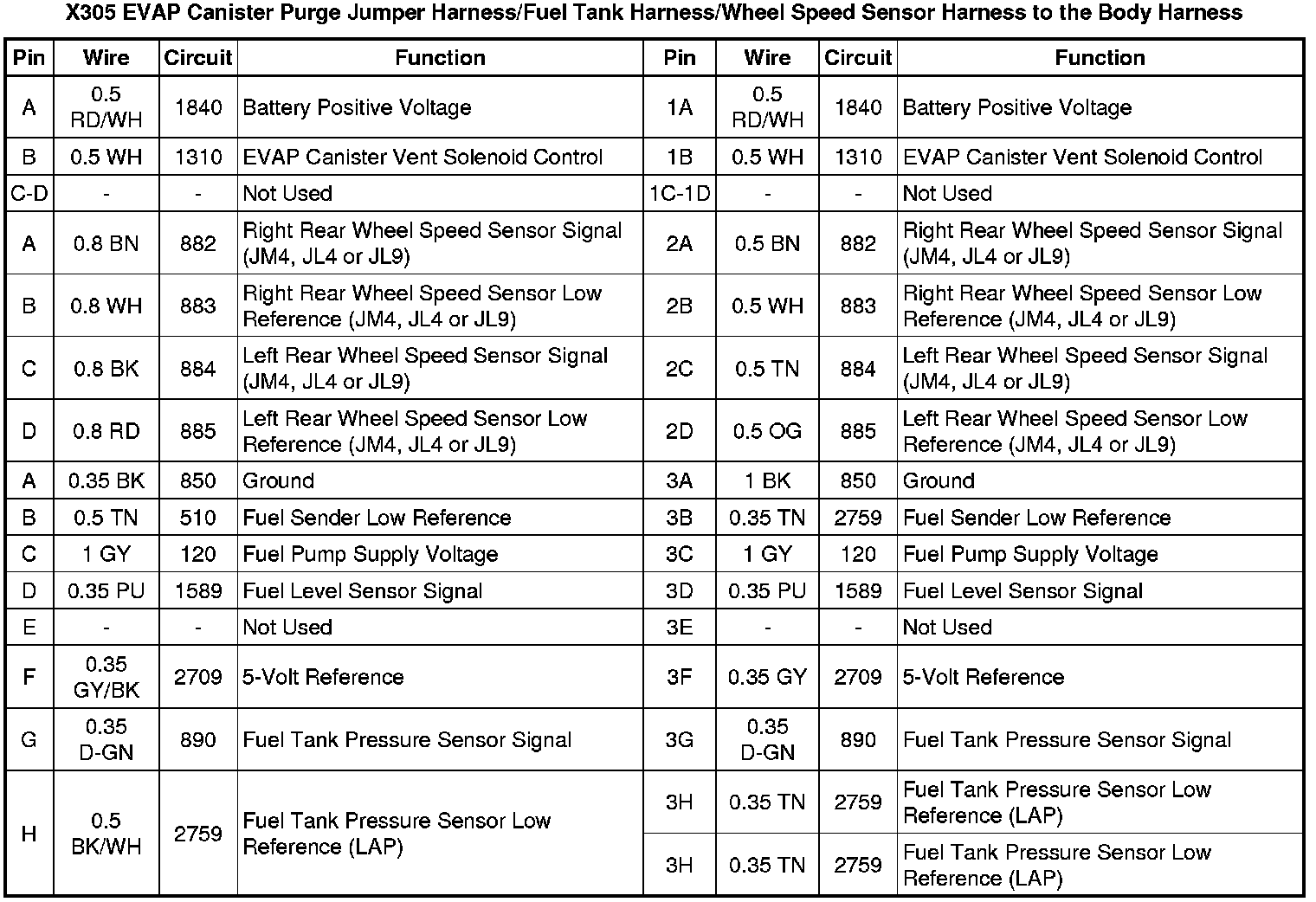

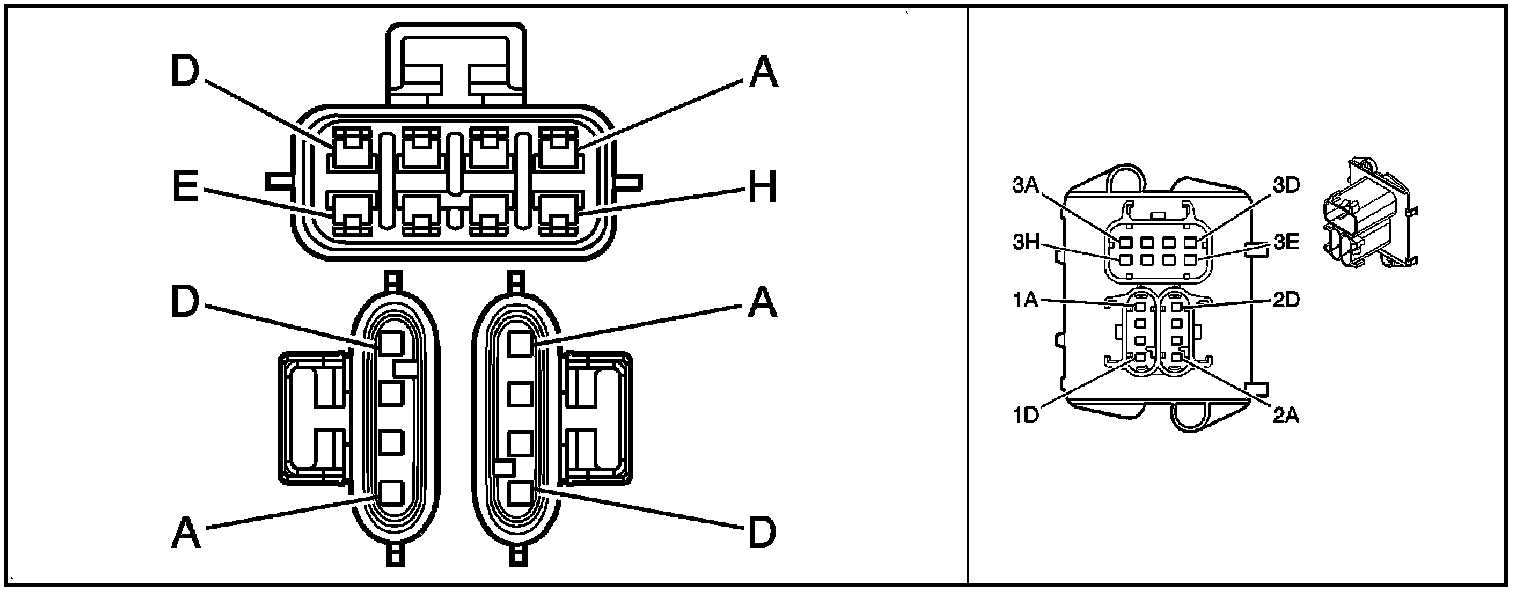

X305 EVAP Canister Purge Jumper Harness/Fuel Tank Harness/Wheel Speed Sensor Harness to the Body Harness
