Battery Positive Cable Replacement (Junction Block to Starter)
Battery Positive Cable Replacement (Junction Block to Starter)
Removal Procedure
Note:
* Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
* Always route the replacement cable the same way as the original cable.
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
2. Remove the junction block cover.
3. Remove the junction block nut (1).
4. Remove the positive battery cable terminal (2) from the junction block stud.
5. Remove the positive battery cable clip (3) from the engine control module (ECM) bracket.
6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
7. If equipped with regular production options RPO LAP, perform the following steps, remove the starter solenoid terminal nut (5).
8. Remove the positive battery cable terminal (4) from the starter solenoid.
9. If equipped with RPO LNF, perform the following steps, remove the starter solenoid terminal nut (4).
10. Remove the positive battery cable terminal (3) from the starter solenoid.

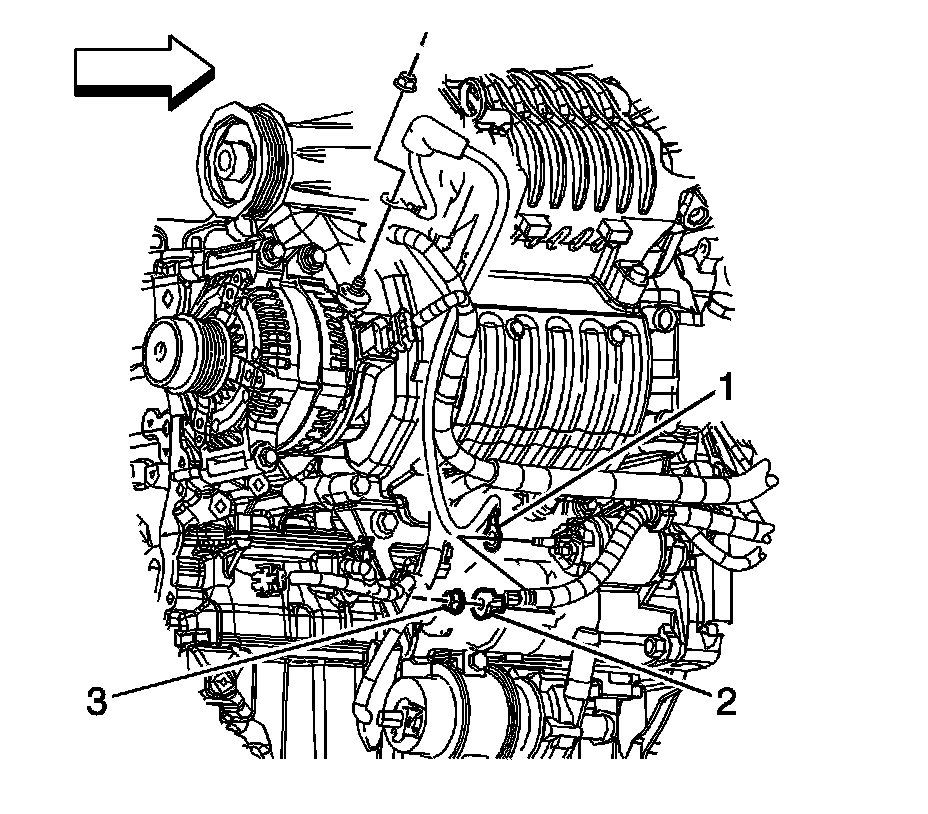

11. Cut open the tape on the positive/negative battery cable conduit (1).
12. Remove the old tape from the conduit.
13. Remove the positive battery cable (1).
Installation Procedure
1. Install the positive battery cable (1) to the conduit.
2. Wrap tape around the positive/negative battery cable conduit (1).

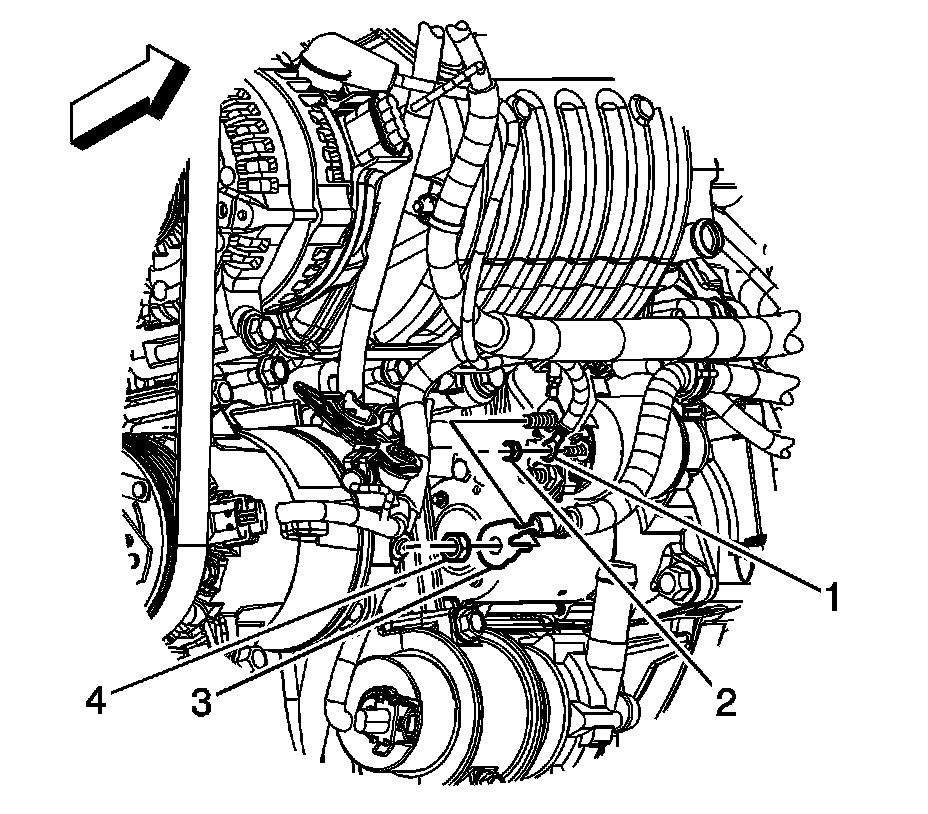

3. If equipped with RPO LNF, perform the following steps, install the positive battery cable terminal (2) to the starter solenoid.
Caution: Refer to Fastener Caution (Fastener Caution).
4. Install the starter solenoid terminal nut (3) and tighten to 17 Nm (13 lb ft).
5. If equipped with RPO LAP, perform the following steps, Install the positive battery cable terminal (3) to the starter solenoid.
6. Install the starter solenoid terminal nut (4) and tighten to 17 Nm (13 lb ft).
7. Lower the vehicle.
8. Install the positive battery cable terminal (2) to the junction block stud.
9. Install the junction block nut (1) and tighten to 17 Nm (13 lb ft).
10. Install the positive battery cable clip (3) to the ECM bracket.
11. Install the junction block cover.
12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
