Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine General Specifications & Service Limits

Engine General Specifications & Service Limits

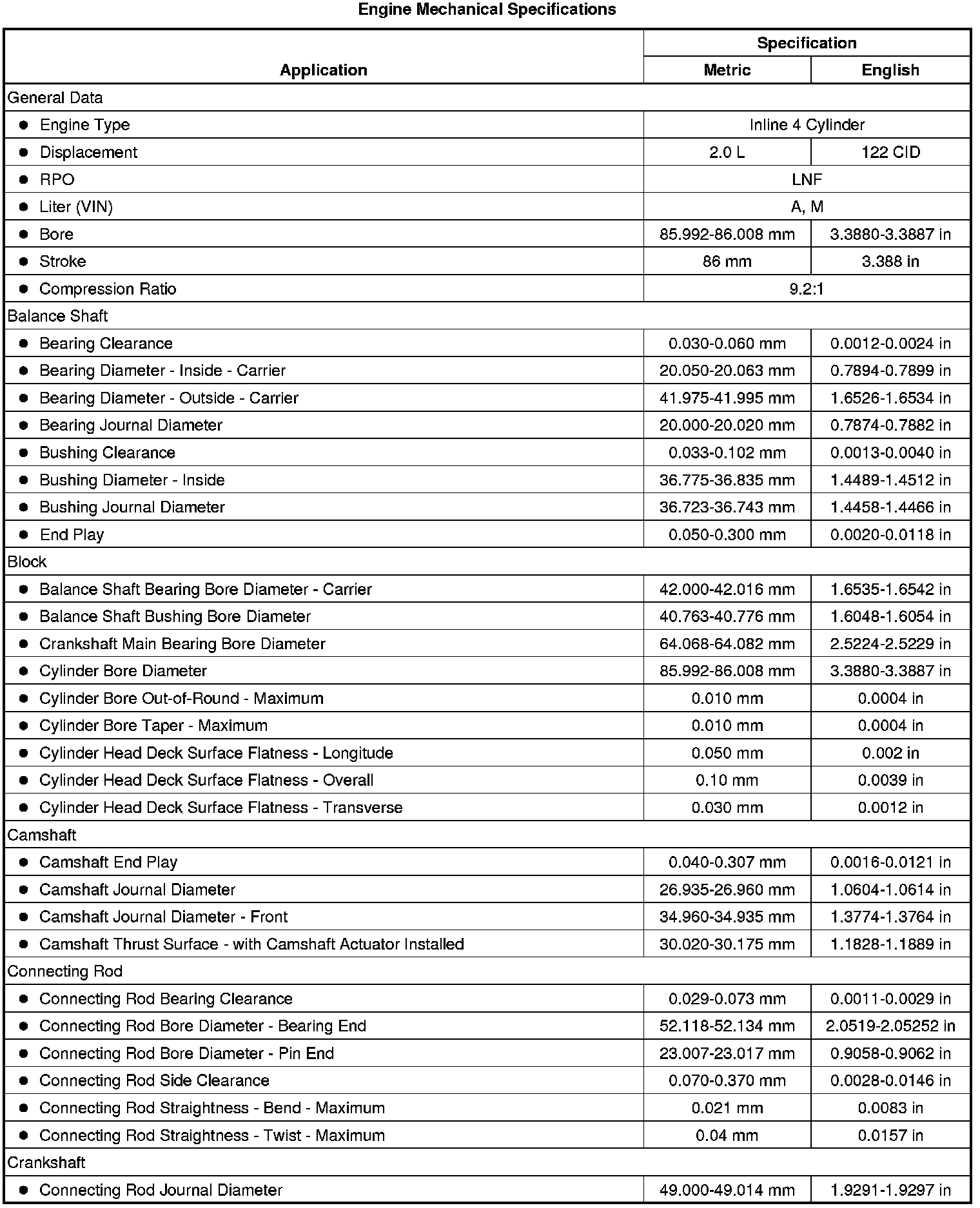

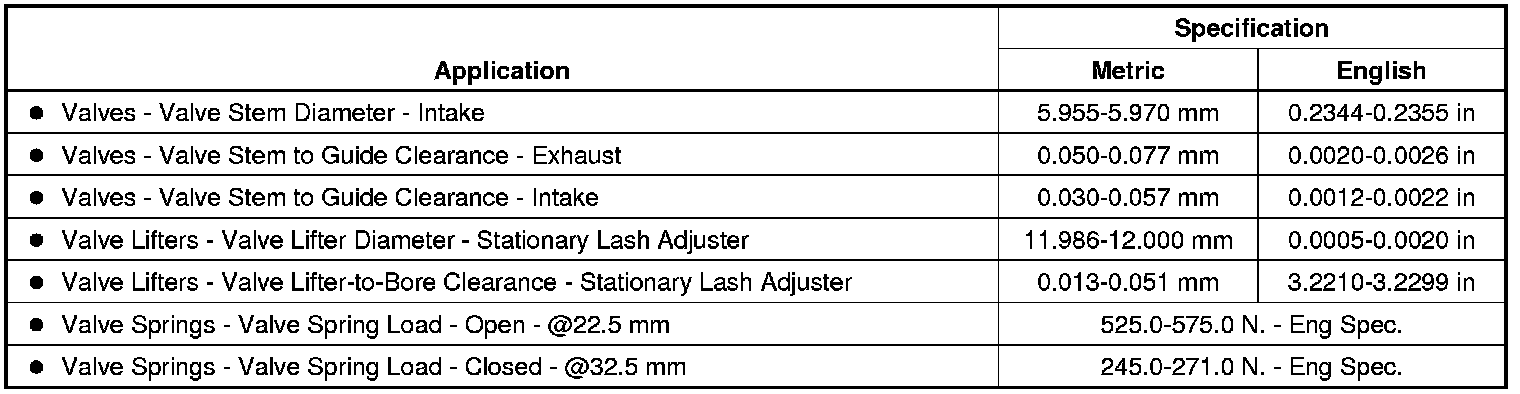

Engine Mechanical Specifications
