Home >> Chevrolet >> 2009 >> Cobalt L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Steering Mounted Controls Assembly >> Service and Repair

Steering Mounted Controls Assembly: Service and Repair

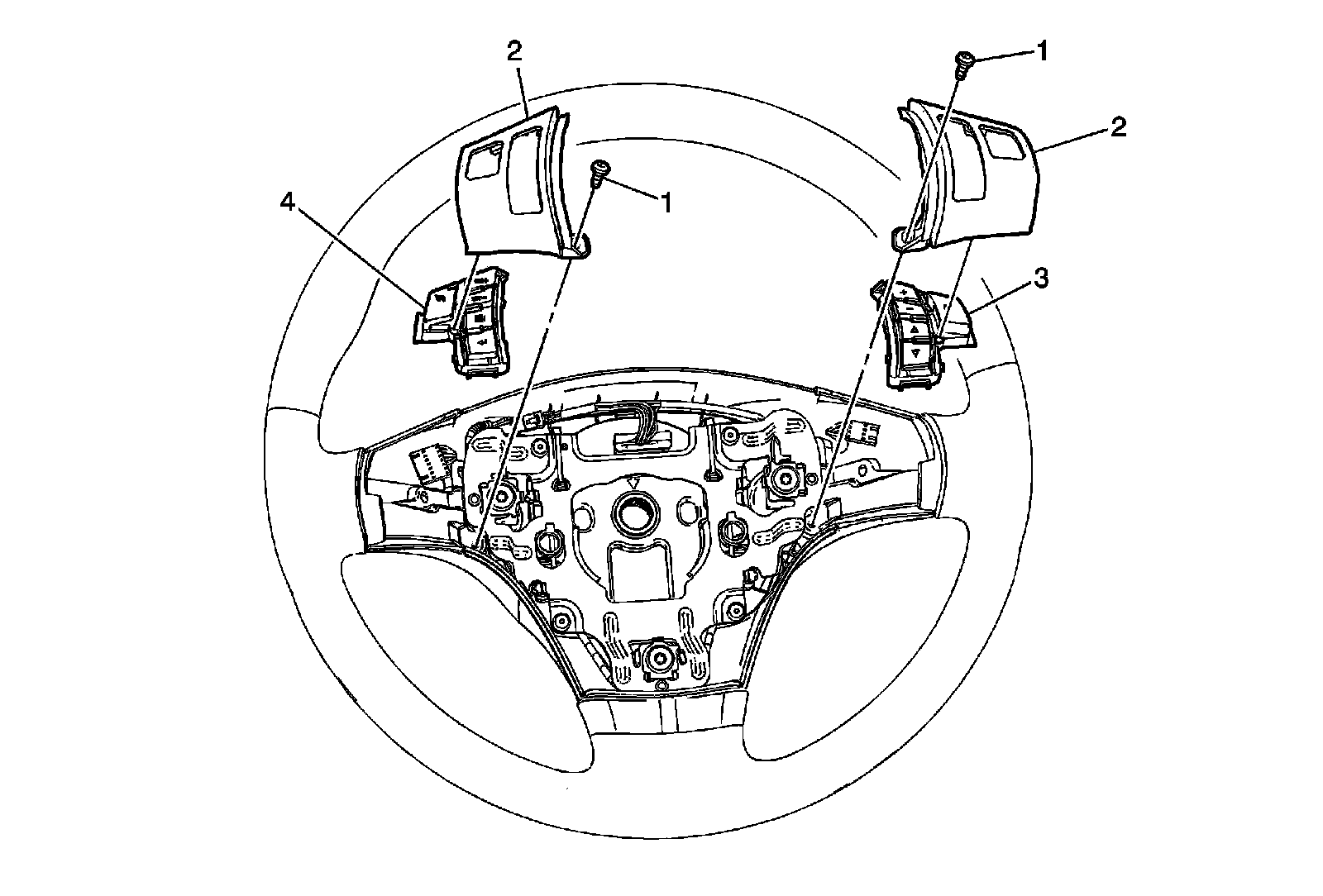

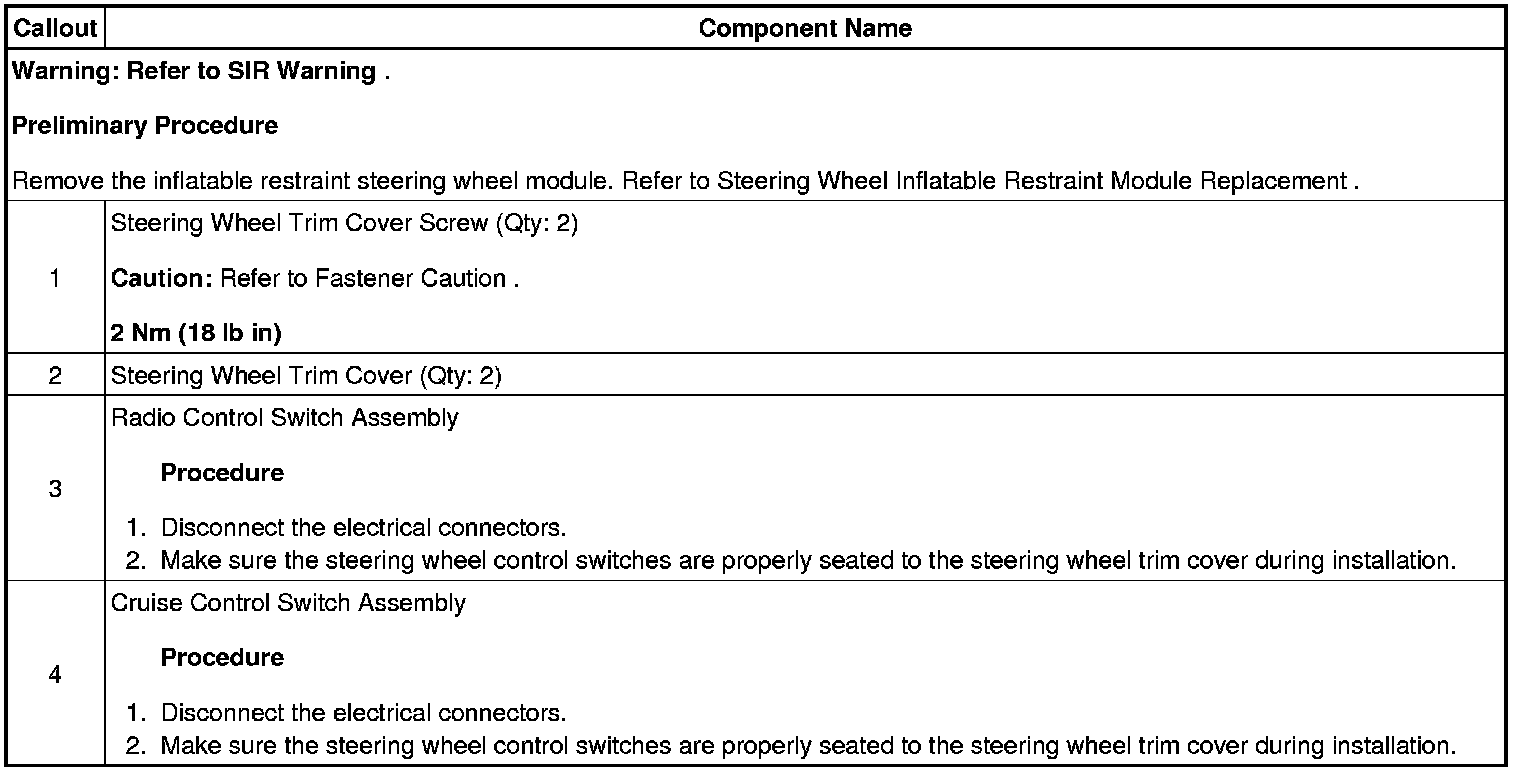

Steering Wheel Control Switch Assembly Replacement
