Seat Belt Tensioner: Diagrams




Component Connector End Views

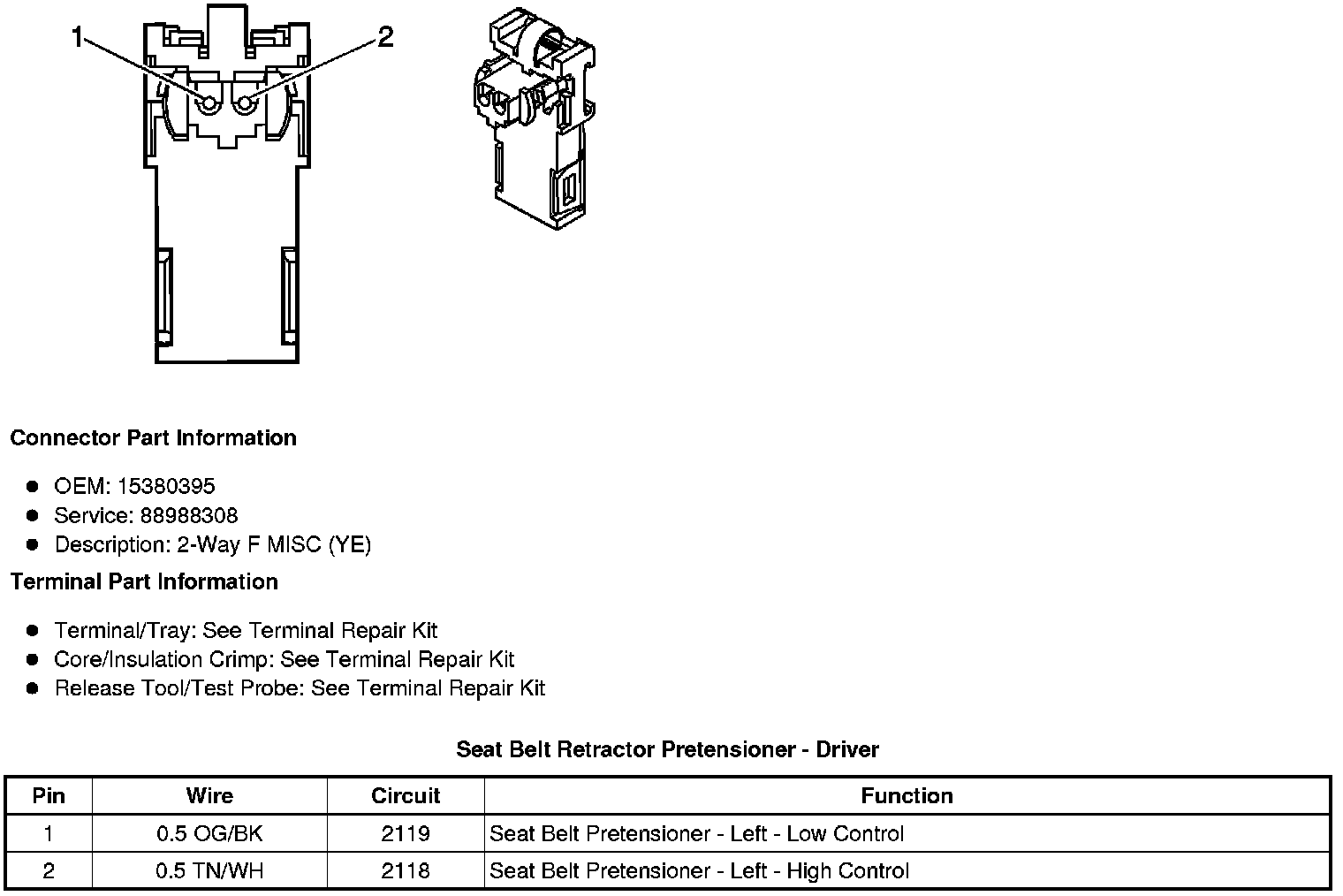

Seat Belt Retractor Pretensioner - Driver

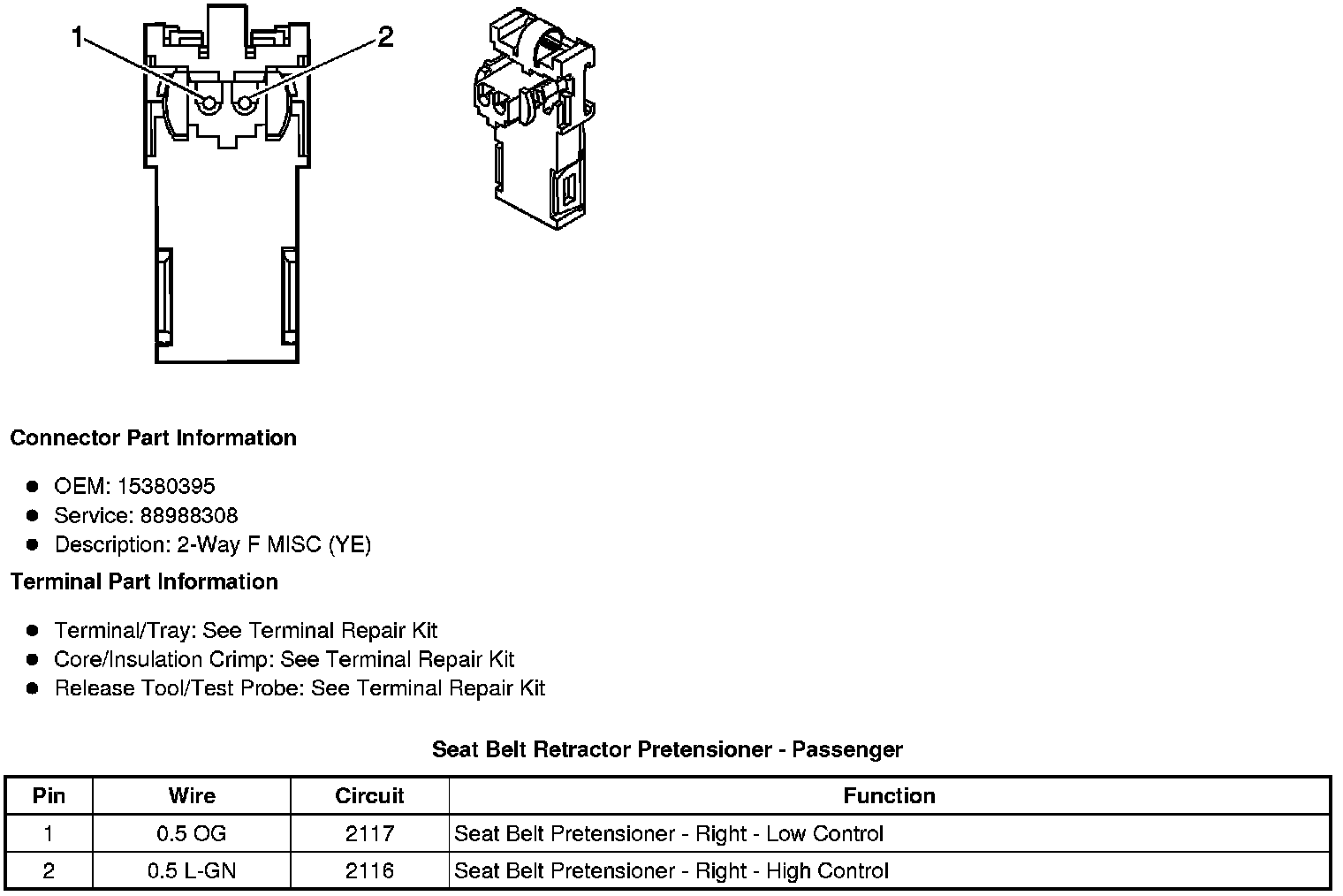

Seat Belt Retractor Pretensioner - Passenger

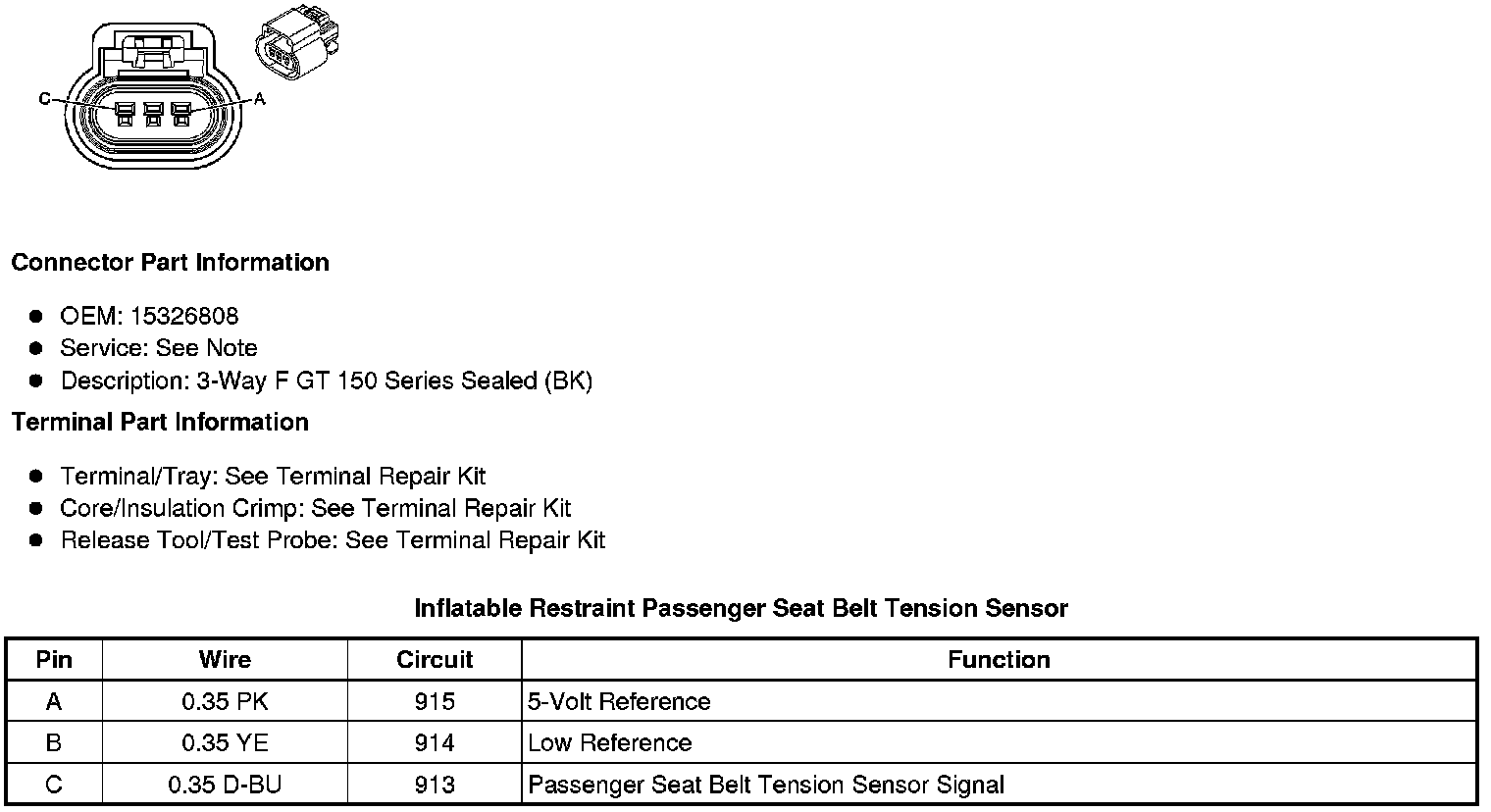

Inflatable Restraint Passenger Seat Belt Tension Sensor
