Electrical Diagrams




Automatic Transmission Controls Schematics

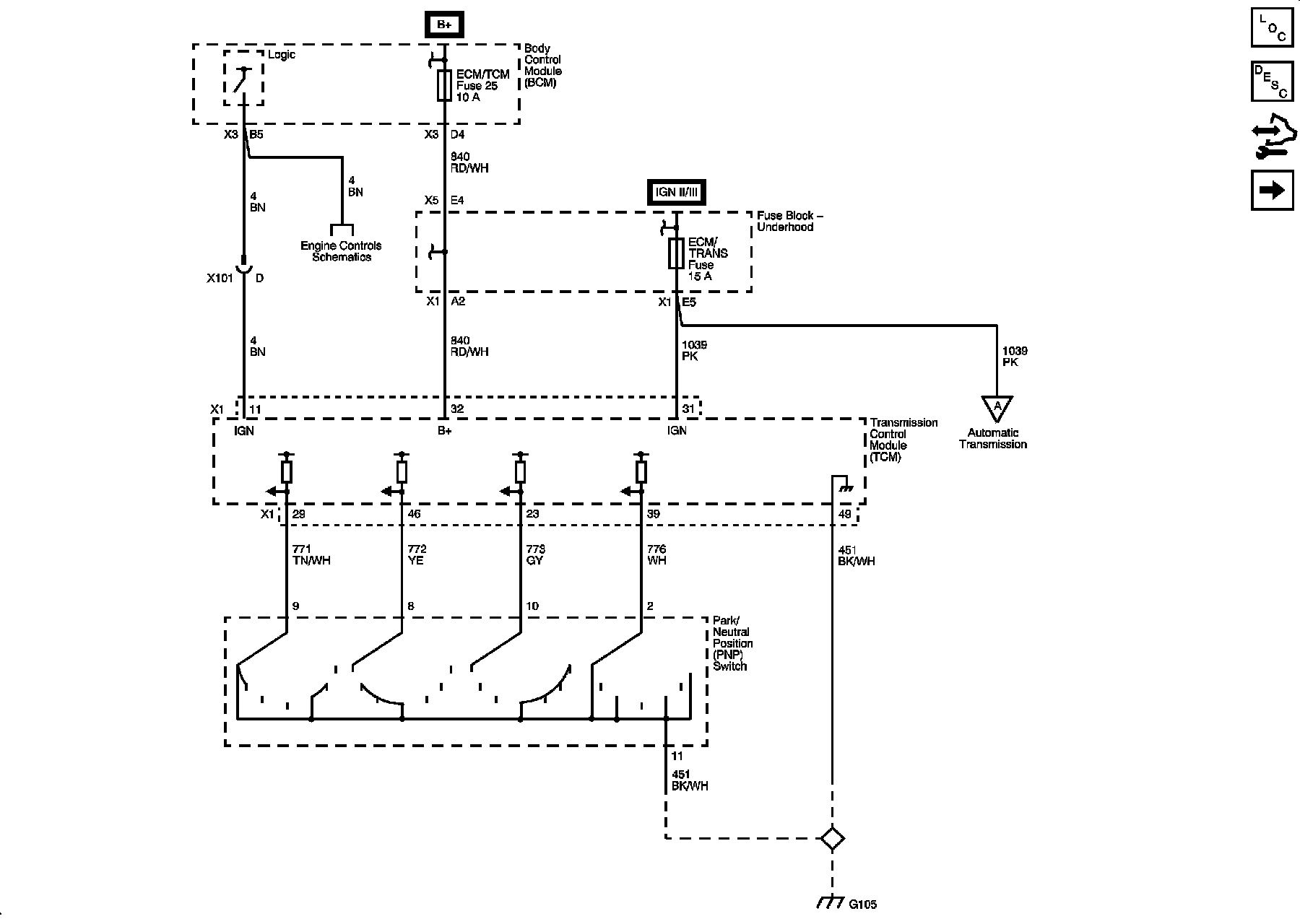

Power, Ground, PNP Switch

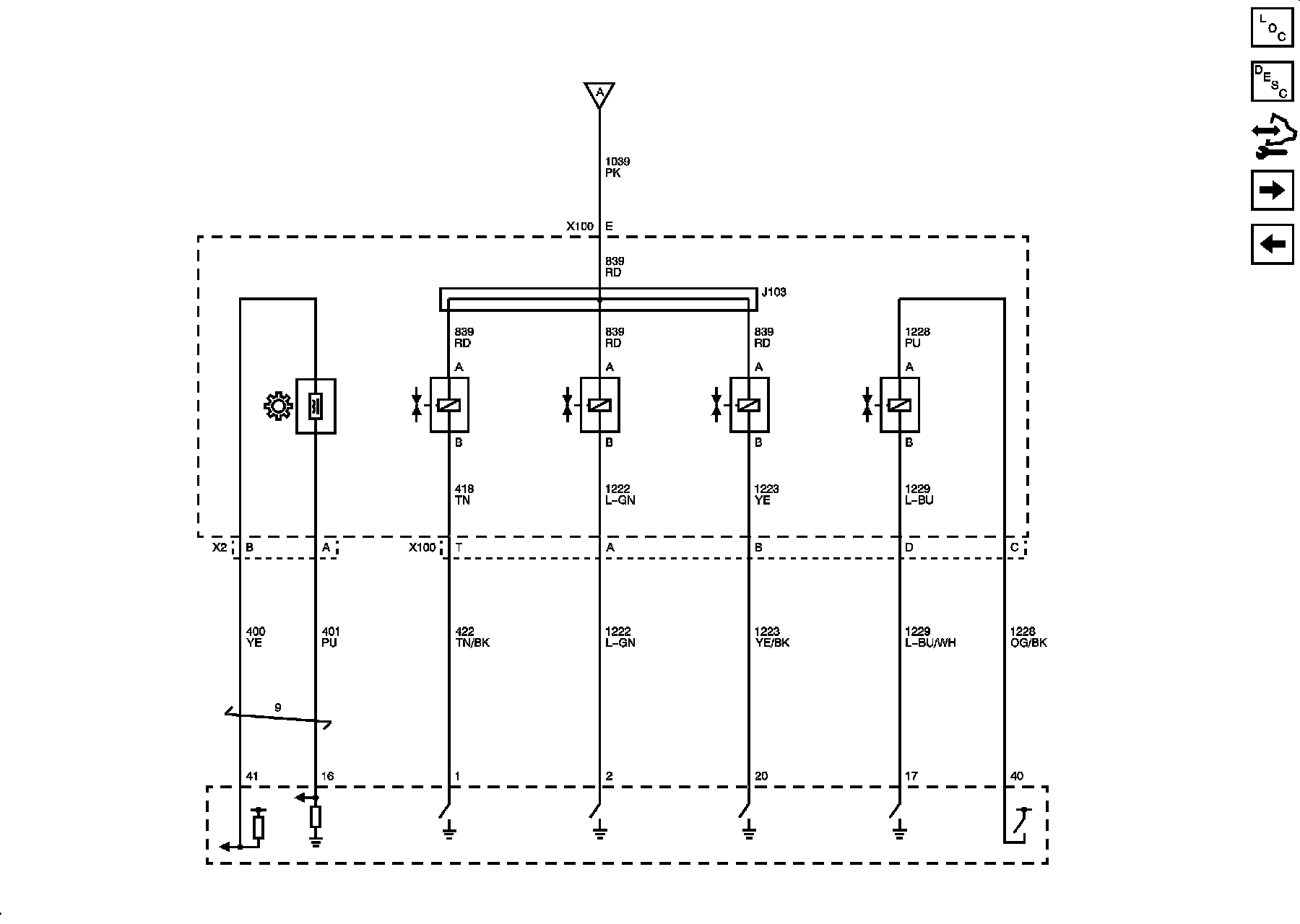

Solenoids, VSS

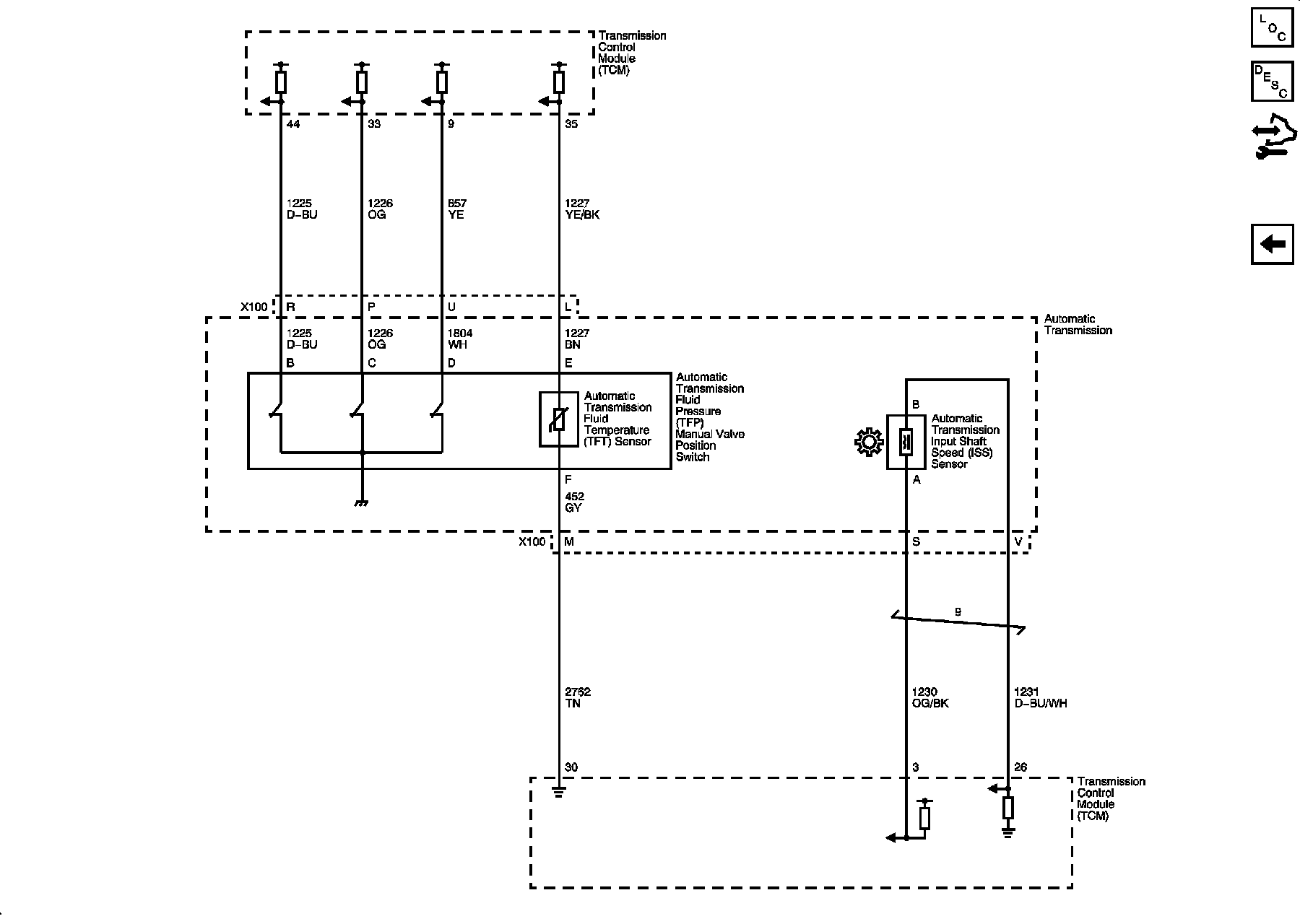

Switches, TFT, ISS, Sensors
